Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
__2.jpg "LF80ABDT-TR")
|
LF80ABDT-TRIC REG LINEAR 8V 500MA DPAK |
8,643 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 8V | - | 0.7V @ 500mA | 500mA | 1.5 mA | 12 mA | 72dB ~ 57dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
LP2950CZ-5.0RAGIC REG LIN 5V 100MA TO226AA/TO92 |
1,179 |
|
Datasheet | - | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
,TO-226_straightlead.jpg "S-812C36AY-B2-U")
|
S-812C36AY-B2-UIC REG LINEAR 3.6V 50MA TO92-3 |
384 |
|
Datasheet | S-812C | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 16V | 3.6V | - | 0.35V @ 10mA | 50mA | 500 nA | 1.8 µA | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
TPS77015DBVTIC REG LINEAR 1.5V 50MA SOT23-5 |
447 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 1.5V | - | - | 50mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS72218DBVRIC REG LINEAR 1.8V 50MA SOT23-5 |
1,380 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.1V @ 50mA | 50mA | 120 µA | 550 µA | 48dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
XC6902NA51PR-GIC REG LIN -10.5V 200MA SOT89-5 |
5,819 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -16V | -10.5V | - | - | 200mA | 350 µA | - | 45dB (1kHz) | - | Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
NCV8623MN-50R2GIC REG LINEAR 5V 150MA 6DFN |
5,995 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 5V | - | 0.26V @ 150mA | 150mA | 200 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3) |
|
TLS810B1EJV50XUMA1IC REG LIN 5V 100MA 8DSO E-PAD |
3,471 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.55V @ 100mA | 100mA | 1 µA | 11 µA | 55dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
1820-6.jpg "R1524K050B-TR")
|
R1524K050B-TRIC REG LINEAR 5V 200MA DFN1820-6 |
2,692 |
|
Datasheet | R1524x | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.6V @ 200mA | 200mA | 2.2 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -50°C ~ 125°C (TA) | - | - | Surface Mount | DFN(PL)1820-6 |
|
RT9186AGQVIC REG LIN POS ADJ 500MA 8VDFN |
720 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 4.5V | 0.22V @ 500mA | 500mA | 250 µA | - | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-VDFN (3x3) |
|
NCV8730BMTW1500TBGIC REG LINEAR 15V 150MA 6WDFNW |
8,815 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 38V | 15V | - | 0.48V @ 150mA | 150mA | 3 µA | 450 µA | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|
RTQ2531WGQWIC REG LIN ADJ 500MA WDFN-8S |
6,647 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.6V | 5.3V | 0.15V @ 500mA | 500mA | - | - | 63dB (100kHz), 60dB ~ 48dB (1kHz ~ 500kHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Reverse Current, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-WDFN-SL (2x2) |
|
|
TLE4254EJSXUMA2IC REG LINEAR POS ADJ 70MA 8DSO |
5,833 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | Tracking | - | 0.4V @ 70mA | 70mA | 80 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
LM1117ILD-ADJ/NOPBIC REG LIN POS ADJ 800MA 8WSON |
4,766 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 15V | 1.25V | 13.8V | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
|
NCV8730BMTWADJTBGIC REG LIN POS ADJ 150MA 6WDFNW |
4,518 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 38V | 1.2V | 24V | 0.48V @ 150mA | 150mA | 3 µA | 450 µA | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|
|
TLE4254EJAXUMA2IC REG LIN POS ADJ 70MA 8DSO |
4,450 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | Tracking | - | 0.4V @ 70mA | 70mA | 80 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-27 |
|

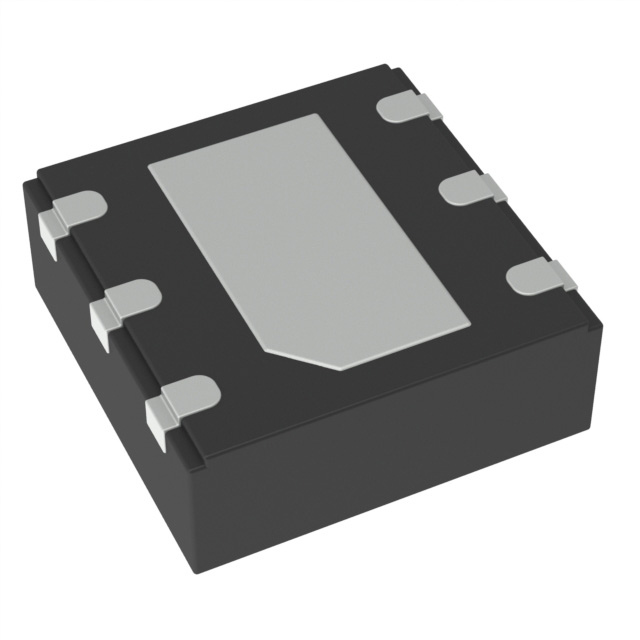

LD49100PU10RY1 A, LOW QUIESCENT CURRENT, LOW- |
2,846 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.4V @ 1A | 1A | 50 µA | 300 µA | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-DFN (3x3) |
|
NCV8560SN330T1GIC REG LINEAR 3.3V 150MA 5TSOP |
2,792 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | - | 150mA | 180 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
MCP1722-5010H/Q8BIC DUAL LDO 5.0V/10VOUT VDFN |
220 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tube | Active | Positive | Fixed | 2 | 55V | 10V, 5V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
TPS715A33DRBTIC REG LINEAR 3.3V 80MA 8SON |
10,818 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3.3V | - | 1.12V @ 80mA | 80mA | 4.2 µA | 5.8 µA | 60dB (100kHz) | - | Over Current, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
