Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L78M24ABVIC REG LINEAR 24V 500MA TO220AB |
1,243 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 24V | - | - | 500mA | 6 mA | - | 50dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
KA7805ETUIC REG LINEAR 5V 1A TO220-3 |
2,932 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 73dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
KA78L05AZTAIC REG LINEAR 5V 100MA TO92-3 |
1,934 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | - | 100mA | 5.5 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|

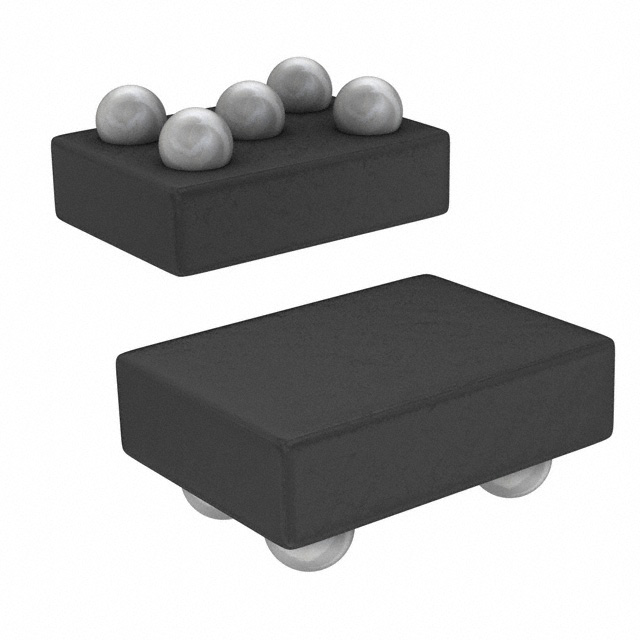

LP2980AITP-3.3/NOPBIC REG LINEAR 3.3V 50MA 5USMD |
3,875 |
|
Datasheet | - | 5-VFBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 5-µSMD (0.93x1.11) |
|
SC1563ISK2.5TRTIC REG LINEAR 2.5V 500MA SOT23-5 |
4,573 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.5V | - | 0.7V @ 500mA | 500mA | 2 µA | 150 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | SOT-23-5 |
|
SC1565I5M2.5TRTIC REG LINEAR 2.5V 1.5A TO263-5 |
2,241 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.6V @ 1.5A | 1.5A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
|
SC1565IST18TRTIC REG LINEAR 1.8V 1.5A SOT223-3 |
4,486 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 1.5A | 1.5A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | SOT-223-3 |
|
|
SC1565IST25TRTIC REG LINEAR 2.5V 1.5A SOT223-3 |
2,707 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.6V @ 1.5A | 1.5A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | SOT-223-3 |
|
|
SC1566I5M2.5TRTIC REG LINEAR 2.5V 3A TO263-5 |
3,077 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.6V @ 3A | 3A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | TO-263-5 |
|
SC1566IM-1.8TRTIC REG LINEAR 1.8V 3A TO263 |
2,265 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 3A | 3A | 35 µA | 1.75 mA | - | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | TO-263 |
|
FAN1084MCXIC REG LINEAR POS ADJ 4.5A D2PAK |
1,093 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.25V | 5.5V | 1.5V @ 4.5A | 4.5A | 4 mA | - | - | - | Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
FAN1084T15IC REG LINEAR 1.5V 4.5A TO220-3 |
1,670 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | 1.5V @ 4.5A | 4.5A | 4 mA | - | - | - | Over Temperature | 25°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
FAN1086S25XIC REG LINEAR 2.5V 1.5A SOT223-4 |
4,073 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7.5V | 2.5V | - | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
FAN1086SXIC REG LIN POS ADJ 1.5A SOT223-4 |
2,355 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7.5V | 1.25V | 6V | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
FAN1117AS5XIC REG LINEAR 5V 1A SOT223-4 |
2,557 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
FAN1117ATIC REG LINEAR POS ADJ 1A TO220-3 |
4,720 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 18V | 1.25V | 18V | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
FAN1581M25XIC REG LINEAR 2.5V 5A TO263-5 |
2,928 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.18V @ 5A | 5A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
FAN1616AD25XIC REG LINEAR 2.5V 500MA DPAK |
3,480 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 2.5V | - | 1.2V @ 500mA | 500mA | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
|
FAN1616ADXIC REG LIN POS ADJ 500MA TO252AA |
3,617 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 18V | 1.25V | 16.8V | 1.2V @ 500mA | 500mA | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
|
FAN1616AS5XIC REG LINEAR 5V 500MA SOT223-4 |
2,647 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | 1.2V @ 500mA | 500mA | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
