Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NJW4181U3-33B-TE2IC REG LINEAR 3.3V 100MA SOT89-3 |
5,998 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 3.3V | - | - | 100mA | 20 µA | - | - | - | Over Current, Reverse Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-3 |
|
NCV8163ASN300T1GIC REG LINEAR 3V 250MA 5TSOP |
5,844 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.185V @ 250mA | 250mA | 20 µA | - | 92dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
__5.jpg "NJW4182F33-TE1")
|
NJW4182F33-TE1IC REG LINEAR 3.3V 100MA SOT23-5 |
3,763 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.18V @ 300mA | 100mA | 18 µA | - | 52dB (1kHz) | - | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 (MTP5) |
|
|
NCV8163ASN120T1GIC REG LINEAR 1.2V 250MA 5TSOP |
3,442 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 250mA | 20 µA | - | 92dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
S-1333B33-M5T1U3IC REG LINEAR 3.3V 300MA SOT23-5 |
2,864 |
|
Datasheet | S-1333 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | 5.5V | 0.27V @ 100mA | 300mA | 1 µA | 38 µA | 65dB (1kHz) | Enable | Overcurrent, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
S-1213B33H-V5T2U7IC REG LIN 3.3V 500MA TO252-5S |
2,265 |
|
Datasheet | S-1213 | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.32V @ 200mA | 500mA | 9.8 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C (TA) | - | - | Surface Mount | TO-252-5S |
|

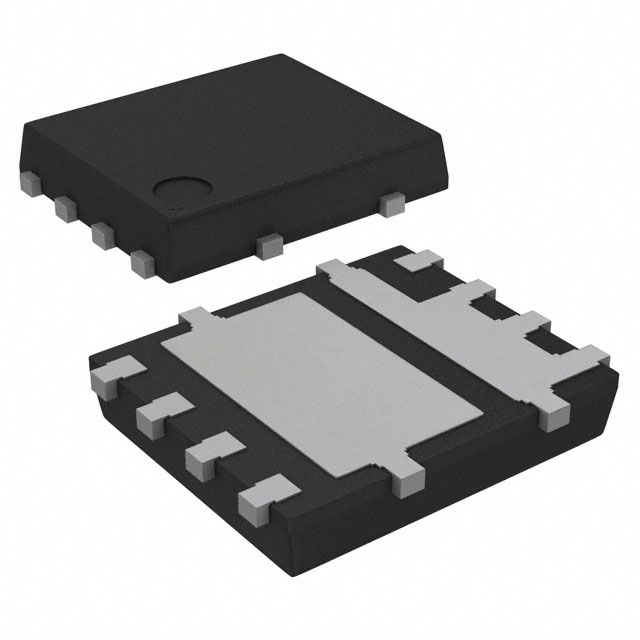

ZXTR1005PD8-13IC REG LIN 5V 42MA POWERDI5060-8 |
2,240 |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 100V | 5V | - | - | 42mA | 500 µA | 900 µA | 57dB (100Hz) | Enable | - | -55°C ~ 125°C | - | - | Surface Mount | PowerDI5060-8 (Type B) |
|
NJM12856DL3-05-TE1IC REG LINEAR 5V 1A TO252-5 |
1,313 |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 5V | - | 0.2V @ 600mA | 1A | 600 µA | - | 68dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Current | -40°C ~ 125°C | - | - | Surface Mount | TO-252-5 |
|
MIC2951-3.3YM-TRIC REG LIN POS ADJ 150MA 8SOIC |
7,830 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.24V (3.3V) | 29V | 0.6V @ 150mA | 150mA | 300 µA | 10 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
KF25BD-TRIC REG LINEAR 2.5V 500MA 8SO |
1,293 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 2.5V | - | 0.7V @ 500mA | 500mA | 1 mA | 12 mA | 82dB ~ 60dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
LM2931T-5.0/NOPBIC REG LINEAR 5V 100MA TO220-3 |
487 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.3V @ 100mA | 100mA | 1 mA | 15 mA | 55dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-220-3 |
|
|
MIC2951-3.3YMIC REG LIN POS ADJ 150MA 8SOIC |
478 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.24V (3.3V) | 29V | 0.6V @ 150mA | 150mA | 300 µA | 10 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
TLS715B0EJV50XUMA1IC REG LIN 5V 150MA 8DSO E-PAD |
10,930 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 100mA | 150mA | 5 µA | 80 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
|
NCP711ASN300T1GIC REG LINEAR 3V 100MA 5TSOP |
8,284 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 18V | 3V | - | 0.355V @ 100mA | 100mA | 2.5 µA | - | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 5-TSOP |
|
MIC2211-AAYML-TRIC REG LINEAR POS ADJ 10MLF |
5,492 |
|
Datasheet | - | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Adjustable | 2 | 5.5V | 1.25V | 5V | 0.25V @ 150mA, 0.42V @ 300mA | 150mA, 300mA | 80 µA | - | 60dB ~ 40dB (1KHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
BU18JA2MNVX-CTLIC REG LINEAR 1.8V SSON004R1010 |
5,001 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.71V @ 200mA | 200mA | 90 µA | - | 70dB (1kHz) | ON/OFF | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SSON004R1010 |
|
|
BU33JA2MNVX-CTLIC REG LINEAR 3.3V SSON004R1010 |
4,424 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.49V @ 200mA | 200mA | 90 µA | - | 70dB (1kHz) | ON/OFF | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SSON004R1010 |
|
BU6654NUX-TRIC REG LIN 1.5V/1.8V/3.3V 8VSON |
3,728 |
|
Datasheet | - | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 3 | 5.5V | 1.5V, 1.8V, 3.3V | - | -, -, 0.46V @ 150mA | 200mA, 200mA, 200mA | 95 µA | 285 µA | 70dB (1kHz), 70dB (1kHz), 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | VSON008X2030 |
|
NCV8186BMN330TAGIC REG LINEAR 3.3V 1A 8DFN |
3,268 |
|
Datasheet | - | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.17V @ 1A | 1A | 140 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-DFN (2x2) |
|
LP2992AILD-1.8/NOPBIC REG LINEAR 1.8V 250MA 6WSON |
119 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 1.8V | - | 0.85V @ 250mA | 250mA | 95 µA | 4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2.92x3.29) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
