Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP2989IMM-5.0/NOPBIC REG LINEAR 5V 500MA 8VSSOP |
3,975 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 5V | - | 0.65V @ 500mA | 500mA | 175 µA | 9 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
TPS72301DBVTG4IC REG LIN NEG ADJ 200MA SOT23-5 |
1,908 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Negative | Adjustable | 1 | -10V | -1.2V | -10V | 0.5V @ 200mA | 200mA | 200 µA | 500 µA | 65dB ~ 48dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS72325DBVTG4IC REG LIN -2.5V 200MA SOT23-5 |
4,613 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Negative | Fixed | 1 | -10V | -2.5V | - | 0.5V @ 200mA | 200mA | 200 µA | 500 µA | 65dB ~ 48dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
REG103GA-3.3G4IC REG LIN 3.3V 500MA SOT223-6 |
4,341 |
|
Datasheet | - | SOT-223-6 | Tube | Discontinued at Digi-Key | Positive | Fixed | 1 | 15V | 3.3V | - | 0.28V @ 500mA | 500mA | 0.7 mA | 1.3 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-6 |
|
|
REG103GA-AG4IC REG LIN POS ADJ 500MA SOT223 |
2,868 |
|
Datasheet | - | SOT-223-6 | Tube | Obsolete | Positive | Adjustable | 1 | 15V | 1.295V | 5.5V | 0.28V @ 500mA | 500mA | 0.7 mA | 1.3 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-6 |
|
LM9073SXIC REG LIN 5V 700MA/100MA TO263 |
4,315 |
|
Datasheet | - | TO-263-12 (11 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 27V | 5V | - | 1V @ 700mA | 700mA, 100mA | 100 µA | 10 mA | 40dB (20kHz) | Enable, Watchdog (RSTO) | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263-11 |
|
TPPM0301DRIC REG LINEAR 3.3V 400MA 8SOIC |
3,974 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 1V @ 400mA | 400mA | - | - | - | - | Over Temperature, Reverse Polarity | 0°C ~ 70°C | - | - | Surface Mount | 8-SOIC |
|
MAX8877EUK28+TIC REG LINEAR 2.8V 150MA SOT23-5 |
1,924 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 2.8V | - | 0.165V @ 150mA (Typ) | 150mA | 180 µA | 100 µA | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
TPS70248PWPRIC REG LINEAR 3.3V/1.5V 20HTSSOP |
4,700 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 3.3V, 1.5V | - | 0.28V @ 500mA, - | 500mA, 250mA | 190 µA | 230 µA | 60dB (1KHz), 50dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS70251PWPRIC REG LINEAR 3.3V/1.8V 20HTSSOP |
4,727 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 3.3V, 1.8V | - | 0.28V @ 500mA, - | 500mA, 250mA | 190 µA | 230 µA | 60dB (1KHz), 50dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
LM2936MP-5.0IC REG LINEAR 5V 50MA SOT223-4 |
4,535 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 50mA | 50mA | 9 µA | 2.5 mA | 60dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-4 |
|

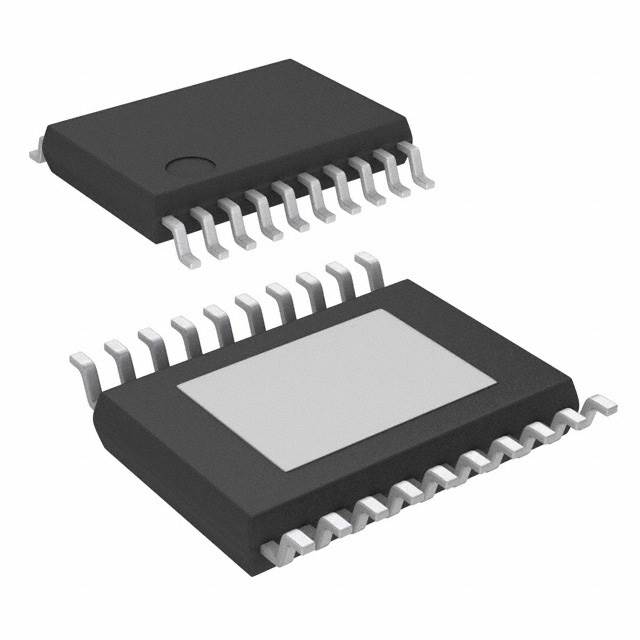

V62/03632-11XEENHANCED PRODUCT, FAST TRANSIENT |
3,497 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 5V | - | 0.38V @ 1A | 1A | 125 µA | - | 60dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Current, Reverse Polarity | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 20-HTSSOP |
|
ADP7157ACPZ-01-R2IC REG LIN POS ADJ 1.2A 10LFCSP |
2,877 |
|
Datasheet | - | 10-VFDFN Exposed Pad, CSP | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1.2V | 1.8V | 0.17V @ 1.2A | 1.2A | 8 mA | 12 mA | 70dB ~ 52dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-LFCSP-WD (3x3) |
|
LP3962EMP-1.8IC REG LINEAR 1.8V 1.5A SOT223-5 |
2,897 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 1.8V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
LP3962EMP-2.5IC REG LINEAR 2.5V 1.5A SOT223-5 |
4,855 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
|
TPS72501DCQRIC REG LINEAR POS ADJ 1A SOT223 |
2,582 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.22V | 5.5V | 0.28V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
MAX8868EUK28+TIC REG LINEAR 2.8V 150MA SOT23-5 |
1,347 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 2.8V | - | 0.165V @ 150mA (Typ) | 150mA | 180 µA | 100 µA | 63dB (10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
ICL7663AESA+TIC REG LINEAR POS ADJ 40MA 8SOIC |
1,990 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 16V | 1.3V | 16V | - | 40mA | 12 µA | - | - | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
LP3965ESX-ADJIC REG LINEAR POS ADJ 1.5A DDPAK |
4,911 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.216V | 5.1V | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | 60dB ~ 40dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LT3055HMSE-3.3#TRPBFIC REG LINEAR 3.3V 500MA 16MSOP |
1,582 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 3.3V | - | 0.59V @ 500mA | 500mA | 130 µA | 25 mA | 70dB (120Hz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | - | - | Surface Mount | 16-MSOP-EP |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
