Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS72515DCQRG4IC REG LINEAR 1.5V 1A SOT223-6 |
2,775 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.5V | - | 0.32V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
TPS72518DCQRG4IC REG LINEAR 1.8V 1A SOT223-6 |
2,718 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.8V | - | 0.32V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
TPS72525DCQRG4IC REG LINEAR 2.5V 1A SOT223-6 |
4,268 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.28V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
TPS726126DCQRG4IC REG LINEAR 1.26V 1A SOT223-6 |
4,185 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.26V | - | 0.32V @ 1A | 1A | 120 µA | 300 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
MAX8865TEUA+TIC REG LIN POS ADJ 100MA 8UMAX |
3,122 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 2 | 5.5V | 1.25V (3.15V) | 5.5V | 0.12V @ 50mA, 0.12V @ 50mA | 100mA | 270 µA | - | - | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
MAX8866TEUA+TIC REG LIN POS ADJ 100MA 8UMAX |
2,056 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 2 | 5.5V | 1.25V (3.15V) | 5.5V | 0.12V @ 50mA, 0.12V @ 50mA | 100mA | 270 µA | - | - | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
MAX16910DASA8/V+TIC REG LIN POS ADJ 200MA 8SOIC |
3,914 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
|
MAX16910EASA8/V+TIC REG LIN POS ADJ 200MA 8SOIC |
4,402 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
|
MAX16910EASA9/V+TIC REG LIN POS ADJ 200MA 8SOIC |
1,271 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
MAX16910EATA8/V+TIC REG LIN POS ADJ 200MA 8TDFN |
4,147 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-TDFN (3x3) |
|
MIC5306-2.5YD5IC REG LIN 2.5V 150MA TSOT23-5 |
3,923 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.2V @ 150mA | 150mA | 25 µA | - | 62dB ~ 35dB (10Hz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|

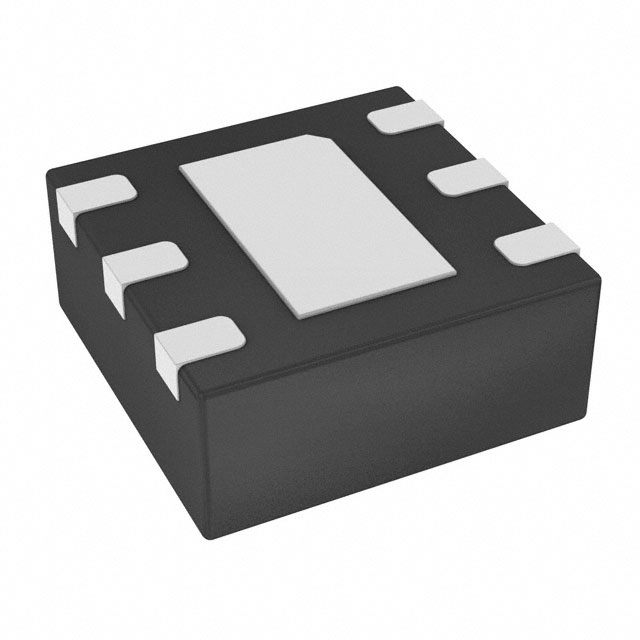

MAQ5300-3.0YML-TRVAOIC REG LINEAR 3V 300MA 6DFN |
2,174 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
MAQ5300-1.8YML-TRVAOIC REG LINEAR 1.8V 300MA 6DFN |
2,104 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Cut Tape (CT) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
|
MAQ5300-2.85YML-TRVAOIC REG LINEAR 2.85V 300MA 6DFN |
2,996 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Cut Tape (CT) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
|
MAQ5300-3.3YML-TRVAOIC REG LINEAR 3.3V 300MA 6DFN |
3,668 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
REG1118-2.85IC REG LIN 2.85V 800MA SOT223-4 |
4,352 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Fixed | 1 | 6V | 2.85V | - | 1.3V @ 800mA | 800mA | 7 mA | - | 56dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | SOT-223-4 |
|
LP3871ES-5.0/NOPBIC REG LIN 5V 800MA DDPAK/TO263 |
1,757 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.35V @ 800mA | 800mA | 5 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
MIC5208-3.3YMMIC REG LINEAR 3.3V/3.3V 8MSOP |
2,731 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Fixed | 2 | 16V | 3.3V, 3.3V | - | 0.5V @ 50mA, 0.5V @ 50mA | 50mA, 50mA | 750 µA | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
MIC5208-3.3YMM-TRIC REG LINEAR 3.3V/3.3V 8MSOP |
3,385 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 16V | 3.3V, 3.3V | - | 0.5V @ 50mA, 0.5V @ 50mA | 50mA, 50mA | 750 µA | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
MIC5208-3.8YMMIC REG LINEAR 3.8V/3.8V 8MSOP |
3,732 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Fixed | 2 | 16V | 3.8V, 3.8V | - | 0.5V @ 50mA, 0.5V @ 50mA | 50mA, 50mA | 750 µA | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
