Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3060ETS8-2.5#TRPBFIC REG LIN 2.5V 100MA TSOT23-8 |
2,600 |
|
Datasheet | - | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 2.5V | - | 0.51V @ 100mA | 100mA | 80 µA | 4 mA | 73dB (120Hz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-8 |
|
|
LT3060ETS8-15#TRPBFIC REG LINEAR 15V 100MA TSOT23-8 |
2,846 |
|
Datasheet | - | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 15V | - | 0.51V @ 100mA | 100mA | 80 µA | 4 mA | 60dB (120Hz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-8 |
|
CS52015-3GT3IC REG LINEAR 3.3V 1.5A TO220AB |
1,431 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.4V @ 1.5A | 1.5A | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Through Hole | TO-220-3 |
|
TPS79601DRBRG4IC REG LINEAR POS ADJ 1A 8SON |
1,618 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | - | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
|
TPS76825QPWPRQ1IC REG LINEAR 2.5V 1A 20HTSSOP |
2,796 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 2.5V | - | - | 1A | 125 µA | - | 60dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-HTSSOP |
|
REG101UA-2.8IC REG LINEAR 2.8V 100MA 8SOIC |
4,128 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 10V | 2.8V | - | 0.13V @ 100mA | 100mA | 500 µA | 650 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
MAX4836ETT33C+TIC REG LINEAR 3.3V 500MA 6TDFN |
3,252 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.33V @ 500mA | 500mA | 150 µA | - | - | Enable, Reset, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TDFN-EP (3x3) |
|
|
MAX4836ETT30C+TIC REG LINEAR 3V 500MA 6TDFN |
2,878 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.33V @ 500mA | 500mA | 150 µA | - | - | Enable, Reset, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TDFN-EP (3x3) |
|
LP2967IBP-2626IC REG LINEAR 2.6V 150MA 8USMD |
3,632 |
|
Datasheet | - | 8-VFBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 16V | 2.6V | - | 0.42V @ 150mA | 150mA | 300 µA | 5 mA | 52dB ~ 70dB (120Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-uSMD |
|

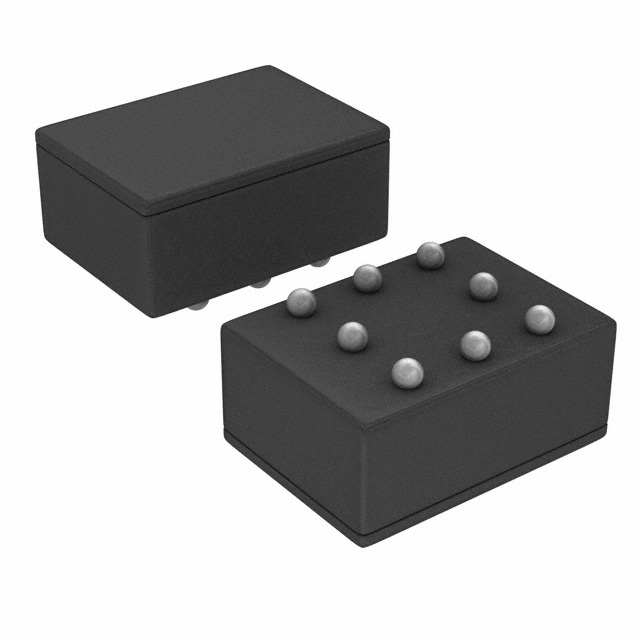

LP2967IBP-2833/NOPBIC REG LIN 2.8V/3.3V 150MA 8USMD |
4,528 |
|
Datasheet | - | 8-VFBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 16V | 2.8V, 3.3V | - | 0.42V @ 150mA | 150mA | 300 µA | 5 mA | 52dB ~ 70dB (120Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-uSMD |
|
MCP1827ST-5002E/EBIC REG LINEAR 5V 1.5A 3DDPAK |
2,745 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.6V @ 1.5A | 1.5A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-3 |
|
L4995AJTRIC REG LIN 5V 500MA POWERSSO-12 |
3,140 |
|
Datasheet | - | PowerSSO-12 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 400mA | 500mA | 160 µA | 2.7 mA | 55dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PowerSSO-12 |
|
TA48M025F(T6L1,SNQIC REG LINEAR 2.5V 500MA PW-MOLD |
2,465 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 29V | 2.5V | - | 0.65V @ 500mA | 500mA | 1.4 mA | 25 mA | 72dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | PW-MOLD |
|
S-1142D35I-E6T1UIC REG LINEAR 3.5V 200MA 6HSOP |
1,905 |
|
Datasheet | S-1142C/D | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 50V | 3.5V | - | 0.62V @ 200mA | 200mA | 1 µA | 9 µA | 45dB (100Hz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSOP |
|
|
S-1142D48I-E6T1UIC REG LINEAR 4.8V 200MA 6HSOP |
1,133 |
|
Datasheet | S-1142C/D | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 50V | 4.8V | - | 0.55V @ 200mA | 200mA | 1 µA | 9 µA | 40dB (100Hz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSOP |
|
|
S-1142D50I-E6T1UIC REG LINEAR 5V 200MA 6HSOP |
2,948 |
|
Datasheet | S-1142C/D | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 50V | 5V | - | 0.5V @ 200mA | 200mA | 1 µA | 9 µA | 40dB (100Hz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSOP |
|
|
S-1142D60I-E6T1UIC REG LINEAR 6V 200MA 6HSOP |
2,341 |
|
Datasheet | S-1142C/D | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 50V | 6V | - | 0.5V @ 200mA | 200mA | 1 µA | 9 µA | 40dB (100Hz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSOP |
|
TPS7A8018DRBRIC REG LINEAR 1.8V 1A 8SON |
1,863 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.5V @ 1A | 1A | 120 µA | 350 µA | 48dB ~ 38dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
|
|
TPS7A8033DRBRIC REG LINEAR 3.3V 1A 8SON |
1,294 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.5V @ 1A | 1A | 120 µA | 350 µA | 48dB ~ 38dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
|
|
TPS7A8050DRBRIC REG LINEAR 5V 1A 8SON |
3,879 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 5V | - | 0.5V @ 1A | 1A | 120 µA | 350 µA | 48dB ~ 38dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
