Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM9076QBMA-5.0/NOPBIC REG LINEAR 5V 150MA 8SOIC |
1,763 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.25V @ 150mA | 150mA | 45 µA | 4.5 mA | 60dB (120Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
TPS7350QPWRG4IC REG LINEAR 5V 500MA 20TSSOP |
1,196 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 5V | - | 0.23V @ 500mA | 500mA | - | 550 µA | 53dB ~ 51dB (120Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-TSSOP |
|
MC33275DT-2.5RKIC REG LINEAR 2.5V 300MA DPAK |
3,691 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 13V | 2.5V | - | 0.5V @ 300mA | 300mA | 200 µA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|

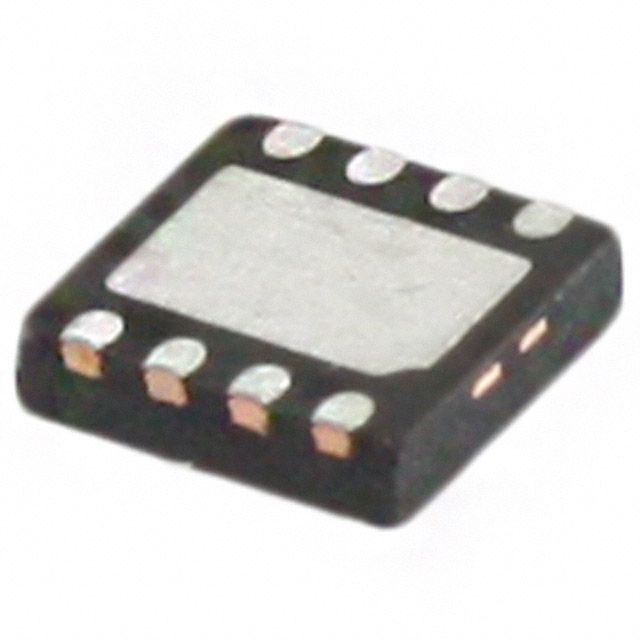

AS1364-BTDT-ADIC REG LINEAR POS ADJ 1A 8TDFN |
1,866 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.3V | 0.32V @ 1A | 1A | 150 µA | 200 µA | 72dB ~ 46dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-TDFN (3x3) |
|
TPS7B8225QDGNRQ1IC POWER |
1,261 |
|
Datasheet | - | 8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 2.5V | - | - | 300mA | 5 µA | 6.5 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HVSSOP |
|
L7806CTIC REG LINEAR 6V 1.5A TO3 |
3,706 |
|
Datasheet | - | TO-204AA, TO-3 | Bag | Obsolete | Positive | Fixed | 1 | 35V | 6V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 59dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-3 |
_4040208^C.jpg "LM2941T")
|
LM2941TIC REG LINEAR POS ADJ 1A TO220-5 |
1,748 |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Adjustable | 1 | 26V | 5V | 20V | 1V @ 1A | 1A | 10 mA | 15 mA | - | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
MIC2214-JGYML-TRIC REG LINEAR 2.5V/1.8V 10MLF |
4,624 |
|
Datasheet | - | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 2.5V, 1.8V | - | 0.25V @ 150mA, 0.42V @ 300mA | 150mA, 300mA | 80 µA | - | 60dB ~ 40dB (1KHz ~ 20kHz) | Enable, Power On Reset | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
|
MIC2214-SWYML-TRIC REG LINEAR 3.3V/1.6V 10MLF |
4,873 |
|
Datasheet | - | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 3.3V, 1.6V | - | 0.25V @ 150mA, 0.42V @ 300mA | 150mA, 300mA | 80 µA | - | 60dB ~ 40dB (1KHz ~ 20kHz) | Enable, Power On Reset | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
TPS74801DRCRG4IC REG LIN POS ADJ 1.5A 10VSON |
1,497 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.16V @ 1.5A | 1.5A | - | - | 50dB ~ 30dB (1kHz ~ 300kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-VSON (3x3) |
|
MAX15006AASA/V+IC REG LINEAR 3.3V 50MA 8SOIC |
3,865 |
|
Datasheet | Platform Manager™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 1V @ 50mA | 50mA | 17 µA | 150 µA | 66dB (100Hz) | Current Limit, Enable | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC-EP |
|
MIC5202-3.0BM-TRIC REG LINEAR 3V/3V 8SOIC |
1,835 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 2 | 26V | 3V, 3V | - | 0.35V @ 100mA, 0.35V @ 100mA | 100mA, 100mA | 1.5 mA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MIC5202-3.3BM-TRIC REG LINEAR 3.3V/3.3V 8SOIC |
4,578 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 2 | 26V | 3.3V, 3.3V | - | 0.35V @ 100mA, 0.35V @ 100mA | 100mA, 100mA | 1.5 mA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MIC5202-4.8BM-TRIC REG LINEAR 4.85V/4.85V 8SOIC |
4,388 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 2 | 26V | 4.85V, 4.85V | - | 0.35V @ 100mA, 0.35V @ 100mA | 100mA, 100mA | 1.5 mA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MIC5202-5.0BM-TRIC REG LINEAR 5V/5V 8SOIC |
3,206 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 2 | 26V | 5V, 5V | - | 0.35V @ 100mA, 0.35V @ 100mA | 100mA, 100mA | 1.5 mA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
EZ1587CT-2.5TIC REG LINEAR 2.5V 3A TO220-3 |
1,866 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.35V @ 3A | 3A | 13 mA | 13 mA | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
EZ1587CM-2.5TRTIC REG LINEAR 2.5V 3A TO263 |
2,713 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.35V @ 3A | 3A | 13 mA | 13 mA | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
|
EZ1587IM.TRTIC REG LINEAR POS ADJ 3A TO263 |
2,968 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 1.4V @ 3A | 3A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
EZ1582CM-2.5TRTIC REG LINEAR 2.5V 3A TO263-5 |
1,700 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.6V @ 3A | 3A | 10 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
MAX8878EZK25+TIC REG LIN 2.5V 150MA TSOT23-5 |
2,598 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.5V | - | 0.165V @ 150mA (Typ) | 150mA | 180 µA | 100 µA | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
