Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD3931HFP-TRIC REG LINEAR 5V 500MA HRP-5 |
1,919 |
|
Datasheet | - | HRP-5 (5 Leads + Tab) | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 25V | 5V | - | 1.5V @ 200mA | 500mA | 30 µA | 40 µA | 55dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | HRP-5 |
|
RT9069-33GSPIC REG LINEAR 3.3V 200MA 8SOP |
4,531 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.36V @ 10mA | 200mA | 3.5 µA | 5 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP-EP |
|
|
RT9069-90GSPIC REG LINEAR 9V 200MA 8SOP |
3,898 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 9V | - | 0.36V @ 10mA | 200mA | 3.5 µA | 5 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP-EP |
|
LM2937ET-15IC REG LINEAR 15V 500MA TO220-3 |
4,897 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 26V | 15V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | - | Mirror-Image Insertion, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
TPS71202DRCTG4IC REG LIN POS ADJ 250MA 10VSON |
3,794 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 2 | 5.5V | 1.2V | 5.5V | 0.4V @ 500mA | 250mA | 250 µA | 600 µA | 59dB ~ 54dB (120Hz) | Enable, Power Good | Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-VSON (3x3) |
|
|
TPS71229DRCTG4IC REG LIN POS ADJ 250MA 10VSON |
3,276 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable (Fixed) | 2 | 5.5V | 1.2V (2.8V) | 5.5V | 0.4V @ 500mA | 250mA | 250 µA | 600 µA | 59dB ~ 54dB (120Hz) | Enable, Power Good | Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-VSON (3x3) |
|
LP2989ILDX-5.0/NOPBIC REG LINEAR 5V 500MA 8WSON |
4,001 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 5V | - | 0.65V @ 500mA | 500mA | 175 µA | 9 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
.jpg "ST3L01K7R")
|
ST3L01K7RIC REG LINEAR 2.6V/3.3V/8V 7SPAK |
1,178 |
|
Datasheet | - | SPAK-7 (7 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 3 | 5.25V | 2.6V, 3.3V, 8V | - | 1.9V @ 1.2A, 1.4V @ 1A, 2.2V @ 200mA | 1.2A, 1A, 200mA | 10 mA | 20 mA | 30dB (100Hz ~ 100kHz) (MIN), 30dB (100Hz ~ 100kHz) (MIN), 40dB (100Hz ~ 100kHz) (MIN) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 7-SPAK |
|
TPS70758PWPRIC REG LINEAR 3.3V/2.5V 20HTSSOP |
4,885 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6V | 3.3V, 2.5V | - | 0.14V @ 250mA, - | 250mA, 125mA | 230 µA | - | 60dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
MC7805BDTRKIC REG LINEAR 5V 1A DPAK |
3,894 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 68dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
AS1372-BWLT-15IC REG LINEAR 1.5V 350MA 5WLCSP |
3,814 |
|
Datasheet | - | 5-UFBGA, WLCSP | Cut Tape (CT) | Active | Positive | Fixed | 1 | 4.5V | 1.5V | - | 0.11V @ 350mA (Typ) | 350mA | - | - | 85dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS1372-BWLT-10IC REG LINEAR 1V 350MA 5WLCSP |
2,389 |
|
Datasheet | - | 5-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 4.5V | 1V | - | 0.11V @ 350mA (Typ) | 350mA | - | - | 85dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS1372-BWLT-12IC REG LINEAR 1.2V 350MA 5WLCSP |
3,502 |
|
Datasheet | - | 5-UFBGA, WLCSP | Cut Tape (CT) | Active | Positive | Fixed | 1 | 4.5V | 1.2V | - | 0.11V @ 350mA (Typ) | 350mA | - | - | 85dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS1372-BWLT-13IC REG LINEAR 1.3V 350MA 5WLCSP |
1,345 |
|
Datasheet | - | 5-UFBGA, WLCSP | Cut Tape (CT) | Active | Positive | Fixed | 1 | 4.5V | 1.3V | - | 0.11V @ 350mA (Typ) | 350mA | - | - | 85dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|

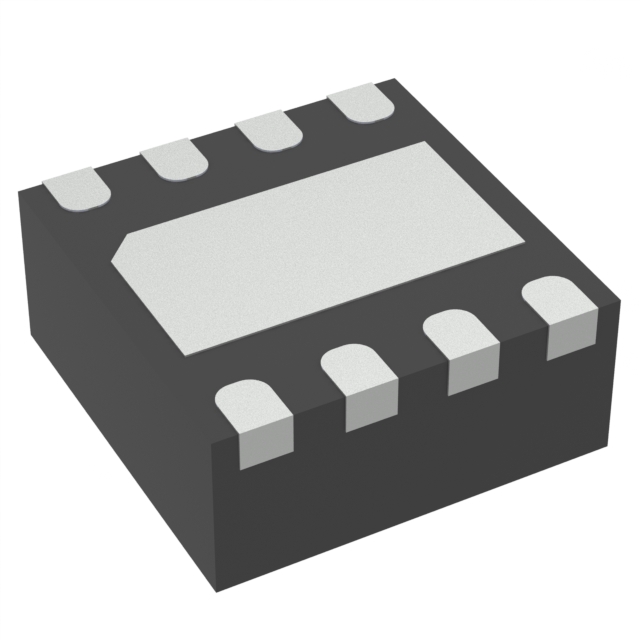

MCP1710T-33I/LZIC REG LINEAR 3.3V 200MA 8VDFN |
3,217 |
|
Datasheet | - | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.45V @ 200mA | 200mA | 20 nA | - | 22dB (100Hz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 8-VDFN (2x2) |
|
|
MCP1710T-30I/LZIC REG LINEAR 3V 200MA 8VDFN |
3,052 |
|
Datasheet | - | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.45V @ 200mA | 200mA | 20 nA | - | 22dB (100Hz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 8-VDFN (2x2) |
|
MCP1755T-3302E/OTVAOIC REG LINEAR 3.3V 300MA SOT23-5 |
4,611 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.5V @ 300mA | 300mA | 100 µA | 400 µA | 80dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
MCP1792T-3302H/DBVAOIC REG LIN 3.3V 100MA SOT223-3 |
4,899 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 55V | 3.3V | - | 1.2V @ 100mA | 100mA | 45 µA | 150 µA | 80dB ~ 55dB (100Hz ~ 100kHz) | - | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-223-3 |
|
|
MCP1792T-5002H/DBVAOIC REG LINEAR 5V 100MA SOT223-3 |
1,663 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 55V | 5V | - | 0.25V @ 100mA | 100mA | 45 µA | 150 µA | 80dB ~ 55dB (100Hz ~ 100kHz) | Shutdown | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-223-3 |
|
NJM2389FNJM2389F |
4,619 |
|
Datasheet | - | TO-220-4 Full Pack | Bulk | Obsolete | Positive | Adjustable | 1 | 35V | - | - | - | 1A | 5 mA | - | 65dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220F-4 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
