Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD733L2FP2-CE2IC REG LIN 3.3V 200MA TO263-3F |
3,430 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 3.3V | - | 1V @ 200mA | 200mA | 15 µA | - | 63dB (120Hz) | - | Over Current, Thermal Shutdown | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-263-3F |
|

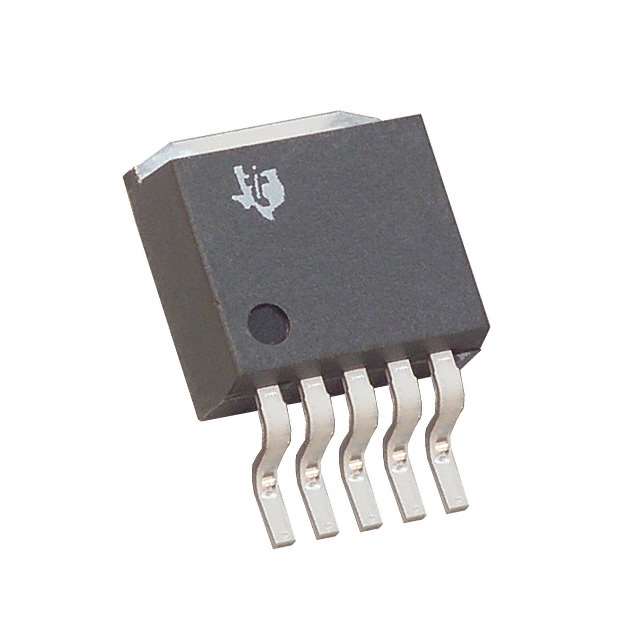

TPS78405KTTRG3IC REG LIN 5V 400MA DDPAK/TO263 |
2,414 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 42V | 5V | - | 0.25V @ 150mA | 400mA | - | - | 40dB ~ 15dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LM2940IMPX-9.0IC REG LINEAR 9V 1A SOT223-4 |
4,780 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 26V | 9V | - | 1V @ 1A | 1A | 10 mA | 15 mA | 64dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-4 |
|
LM2936QMMX-3.3/NOPBIC REG LINEAR 3.3V 50MA 8VSSOP |
3,660 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.4V @ 50mA | 50mA | 15 µA | 2.5 mA | 60dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-VSSOP |
|
LP3981ILD-3.03/NOPBIC REG LINEAR 3.03V 300MA 6WSON |
2,961 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 3.03V | - | 0.2V @ 300mA | 300mA | 120 µA | 210 µA | 50dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (3x4) |
|
FAN2558MP18XIC REG LINEAR 1.8V 180MA 6MLP |
2,825 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 180mA | 150 µA | - | 50dB (100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
FAN2558MP13XIC REG LINEAR 1.3V 180MA 6MLP |
4,244 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.3V | - | - | 180mA | 150 µA | - | 50dB (100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (2x2) |
|
AS13985H12-TIC REG LINEAR 1.2V 150MA SOT23-5 |
3,745 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS13985H18-TIC REG LINEAR 1.8V 150MA SOT23-5 |
4,992 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS13985H27-TIC REG LINEAR 2.7V 150MA SOT23-5 |
4,728 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS13985H28-TIC REG LINEAR 2.8V 150MA SOT23-5 |
3,663 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS13985H29-TIC REG LINEAR 2.9V 150MA SOT23-5 |
3,134 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS13985H-30-TIC REG LINEAR 3V 150MA SOT23-5 |
3,678 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS13985H33-TIC REG LINEAR 3.3V 150MA SOT23-5 |
3,990 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LM3480IM3X-15IC REG LINEAR 15V 100MA SOT23-3 |
3,918 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 15V | - | 1.2V @ 100mA | 100mA | 2 mA | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-3 |
|
NCV8702SN18T1GIC REG LINEAR 1.8V 200MA 5TSOP |
2,620 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.2V @ 200mA | 200mA | 16 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
LP5996SD-3333IC REG LINEAR 3.3V 10SON |
4,346 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6V | 3.3V | - | 0.22V @ 150mA, 0.55V @ 300mA | 150mA, 300mA | 110 µA | 170 µA | 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 10-SON (3x3) |
|
LP3996SD-1525IC REG LINEAR 1.5V/2.5V 10WSON |
4,870 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6V | 1.5V, 2.5V | - | 0.22V @ 150mA, 0.55V @ 150mA | 150mA, 300mA | 100 µA | 170 µA | 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 10-WSON (3x3) |
|
|
LP3996SD-3030IC REG LIN 3V 150MA/300MA 10WSON |
2,314 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6V | 3V | - | 0.22V @ 150mA, 0.55V @ 150mA | 150mA, 300mA | 100 µA | 170 µA | 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 10-WSON (3x3) |
|
|
LP5996SD-2828IC REG LIN 2.8V 150/300MA 10SON |
3,960 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6V | 2.8V | - | 0.22V @ 150mA, 0.55V @ 300mA | 150mA, 300mA | 110 µA | 170 µA | 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 10-SON (3x3) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
