Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP7361-28FGE-7IC REG LINEAR 2.8V 1A 8UDFN |
4,399 |
|
Datasheet | - | 8-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.7V @ 1A | 1A | 90 µA | - | 65dB ~ 45dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | U-DFN3030-8 (Type E) |
|
LP38690DT-1.8IC REG LINEAR 1.8V 1A TO252-3 |
2,926 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 10V | 1.8V | - | 1.6V @ 1A | 1A | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
LP2986ILDX-3.3/NOPBIC REG LINEAR 3.3V 200MA 8WSON |
4,433 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.35V @ 200mA | 200mA | 120 µA | 3.7 mA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
LP3879SDX-1.0/NOPBIC REG LINEAR 1V 800MA 8WSON |
4,386 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1V | - | - | 800mA | 1.4 mA | 2.2 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
|
LP3879SDX-1.2/NOPBIC REG LINEAR 1.2V 800MA 8WSON |
3,632 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.2V | - | - | 800mA | 1.4 mA | 2.2 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
TS2937CM500.5A 5V ULTRA LOW DROPOUT VOLTAG |
4,004 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.7V @ 500mA | 500mA | - | 25 mA | - | Current Limit | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263-3 |
|
MIC5219-2.6BML-TRIC REG LINEAR 2.6V 500MA 6MLF |
4,124 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 12V | 2.6V | - | 0.6V @ 500mA | 500mA | 8 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC5219-2.8BML-TRIC REG LINEAR 2.8V 500MA 6MLF |
3,608 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 12V | 2.8V | - | 0.6V @ 500mA | 500mA | 8 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC5219-3.0BML-TRIC REG LINEAR 3V 500MA 6MLF |
4,669 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 12V | 3V | - | 0.6V @ 500mA | 500mA | 8 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC5219-3.3BML-TRIC REG LINEAR 3.3V 500MA 6MLF |
3,522 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 12V | 3.3V | - | 0.6V @ 500mA | 500mA | 8 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
LP38690SDX-2.5IC REG LINEAR 2.5V 1A 6WSON |
2,605 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | 1.3V @ 1A | 1A | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (3x3) |
,TO-226_straightlead.jpg "LP2950ACZ-5.0")
|
LP2950ACZ-5.0IC REG LINEAR 5V 100MA TO92-3 |
1,456 |
|
Datasheet | - | TO-226-3, TO-92-3 Long Body | Tube | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
|
LP2950ACZ-3.0IC REG LINEAR 3V 100MA TO92-3 |
2,469 |
|
Datasheet | - | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | Positive | Fixed | 1 | 30V | 3V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
|
LP2950ACZ-3.3IC REG LINEAR 3.3V 100MA TO92-3 |
2,975 |
|
Datasheet | - | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
NCV86601BD50R2GIC REG LINEAR 5V 150MA 8SOIC |
2,468 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|

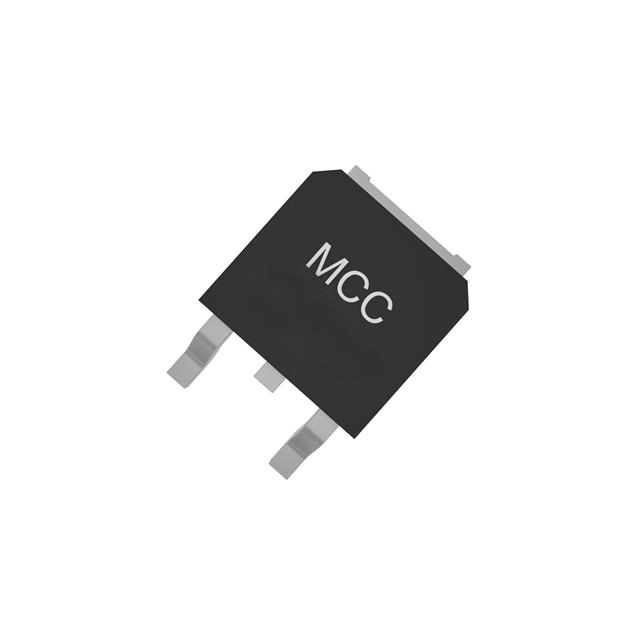

MC78D05CDT-TPInterface |
2,417 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | Positive | Fixed | 1 | 20V | 5V | - | 5.2V @ 1A | 1A | 8 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C (TJ) | - | - | Surface Mount | DPAK |
|
MP2013GQ-PIC REG LINEAR POS ADJ 150MA 8QFN |
3,680 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.215V | 15V | 0.9V @ 150mA | 150mA | 7.2 µA | 50 µA | 58dB ~ 41dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-QFN (3x3) |
|
MPQ20056GJ-PIC REG LIN POS ADJ 250MA TSOT23 |
2,151 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5V | 0.2V @ 250mA | 250mA | 250 µA | 330 µA | 65dB ~ 33dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
PQ09RA11IC REG LINEAR 9V 1A TO220-4 |
2,714 |
|
Datasheet | * | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
BA178M10CP-E2IC REG LINEAR 10V 500MA TO220-3 |
2,120 |
|
Datasheet | - | TO-220-3 Cropped Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 25V | 10V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 66dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220-3 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
