Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCP1826T-2502E/DCIC REG LINEAR 2.5V 1A SOT223-5 |
2,642 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
MCP1826ST-3002E/DBIC REG LINEAR 3V 1A SOT223-3 |
1,778 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
MCP1826T-0802E/DCIC REG LINEAR 0.8V 1A SOT223-5 |
3,965 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 0.8V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|

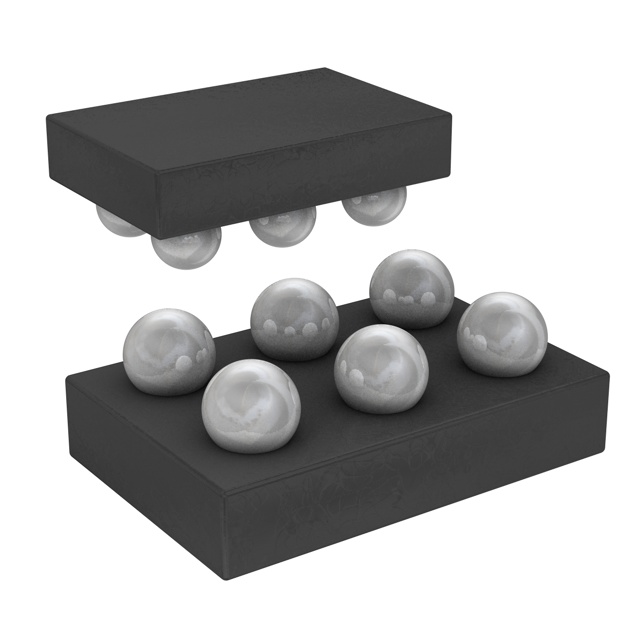

MP20249DC-MC-LF-PIC REG LINEAR 1.2V/2.8V 6WLCSP |
1,493 |
|
Datasheet | - | 6-WFBGA, WLCSP | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 2 | 6V | 1.2V, 2.8V | - | 0.075V @ 200mA (Typ), 0.075V @ 200mA (Typ) | 200mA, 200mA | 125 µA | - | 65dB ~ 55dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (1x1.5) |
|
MP2016DD-LF-PIC REG LINEAR POS ADJ 30MA 8QFN |
2,569 |
|
Datasheet | - | 8-TFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 42V | 1.2V | 40V | 0.9V @ 30mA | 30mA | 30 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-QFN (2x3) |
|
MP20045DN-LF-PLOW NOISE HIGH PSRR, 1A LINEAR R |
3,369 |
|
Datasheet | MP | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.5V | 5V | 0.28V @ 1A | 1A | - | - | 56dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOICE |
|

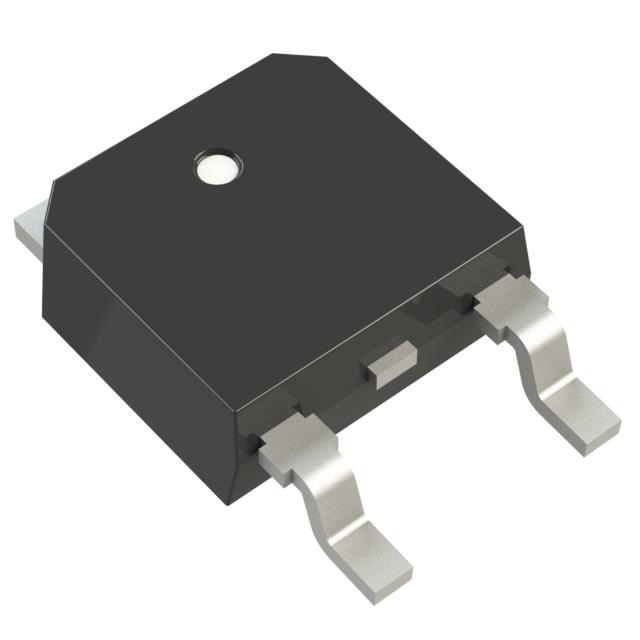

LM317MDT-BPInterface |
4,136 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 100mA | 12 mA | - | 75dB ~ 60dB (120Hz) | - | - | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
CS8182YDFR8IC REG LIN POS ADJ 200MA 8SOIC |
1,575 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 45V | Tracking | - | 0.6V @ 200mA | 200mA | 55 µA | 25 mA | 60dB (120Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MIC5305-3.0BD5IC REG LINEAR 3V 150MA TSOT23-5 |
2,469 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.85V @ 150mA | 150mA | 150 µA | - | 85dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
MIC5305-3.3BD5IC REG LIN 3.3V 150MA TSOT23-5 |
2,617 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.85V @ 150mA | 150mA | 150 µA | - | 85dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
TCR3DM105,LFIC REG LINEAR 1.05V 300MA 4DFN |
3,152 |
|
Datasheet | TCR3DM | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.05V | - | 0.75V @ 300mA | 300mA | 65 µA | 78 µA | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-DFN (1x1) |
|
L4931CD80-TRIC REG LINEAR 8V 250MA 8SO |
4,680 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 8V | - | 0.8V @ 250mA | 250mA | 1.6 mA | 7 mA | 67dB ~ 55dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
FAN2504S33XIC REG LINEAR 3.3V 200MA SOT23-5 |
2,548 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.2V @ 200mA | 200mA | 75 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
MIC5203-2.8YM4-TRIC REG LINEAR 2.8V 80MA SOT143 |
1,703 |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 2.8V | - | 0.6V @ 80mA | 80mA | 750 µA | 3 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-143 |
|
MC78M08ABDTRKGIC REG LINEAR 8V 500MA DPAK |
3,870 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | - | 500mA | - | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
MIC5301-3.0YD5-TRIC REG LINEAR 3V 150MA TSOT23-5 |
1,244 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.1V @ 150mA | 150mA | 120 µA | - | 75dB ~ 50dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
BU19UA3WNVX-TLIC REG LIN 1.9V 300MA 4SSON |
1,608 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 1.9V | - | 0.32V @ 300mA | 300mA | 90 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SSON004X1010 |
|
|
BU1AUA3WNVX-TLIC REG LINEAR 1.05V 300MA 4SSON |
3,308 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 1.05V | - | 0.7V @ 300mA | 300mA | 90 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SSON004X1010 |
|
|
BU22UA3WNVX-TLIC REG LIN 2.2V 300MA 4SSON |
2,719 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 2.2V | - | 0.26V @ 300mA | 300mA | 90 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SSON004X1010 |
|
|
BU26UA3WNVX-TLIC REG LIN 2.6V 300MA 4SSON |
2,671 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 2.6V | - | 0.22V @ 300mA | 300mA | 90 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SSON004X1010 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
