Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC5305-2.85BML-TRIC REG LINEAR 2.85V 150MA 6MLF |
2,633 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.85V @ 150mA | 150mA | 150 µA | - | 85dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC5305-2.8BML-TRIC REG LINEAR 2.8V 150MA 6MLF |
2,868 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 2.8V | - | - | 150mA | 150 µA | - | 85dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC5305-2.9BML-TRIC REG LINEAR 2.9V 150MA 6MLF |
1,443 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.85V @ 150mA | 150mA | 150 µA | - | 85dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC5305-3.0BML-TRIC REG LINEAR 3V 150MA 6MLF |
1,609 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 3V | - | 0.85V @ 150mA | 150mA | 150 µA | - | 85dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC5305-3.3BML-TRIC REG LINEAR 3.3V 150MA 6MLF |
2,717 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.85V @ 150mA | 150mA | 150 µA | - | 85dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC5305-4.75BML-TRIC REG LINEAR 4.75V 150MA 6MLF |
3,761 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 4.75V | - | 0.85V @ 150mA | 150mA | 150 µA | - | 85dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC5305BML-TRIC REG LINEAR POS ADJ 150MA 6DFN |
1,653 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 5.5V | 1.25V | 5.5V | 0.85V @ 150mA | 150mA | 150 µA | - | 85dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
KA79M05RTFIC REG LINEAR -5V 500MA DPAK |
3,981 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | 1.1V @ 500mA | 500mA | 6 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
MCP1703T-1802E/MBIC REG LINEAR 1.8V 200MA SOT89-3 |
1,947 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 1.8V | - | - | 200mA | 5 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-89-3 |
|
|
MCP1703T-2802E/MBIC REG LINEAR 2.8V 250MA SOT89-3 |
4,795 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 2.8V | - | 0.975V @ 250mA | 250mA | 5 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-89-3 |
|

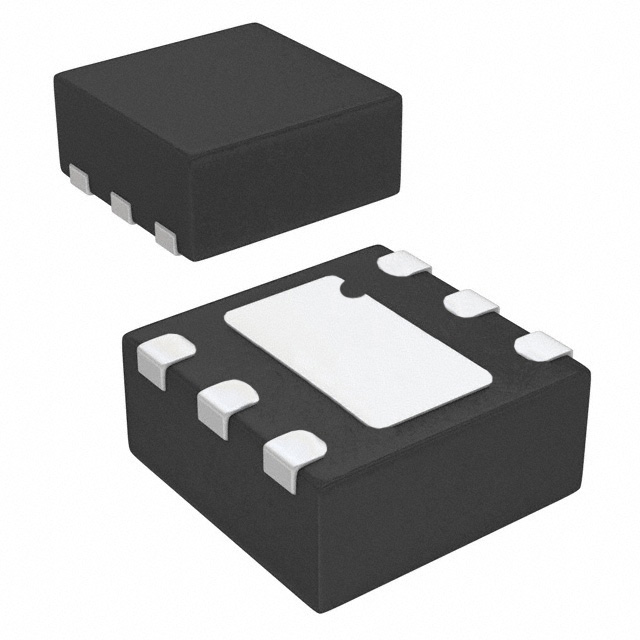

MIC37122YMT-TRIC REG LINEAR POS ADJ 1A 6TMLF |
1,132 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-TMLF® | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1V | 5V | 0.4V @ 1A | 1A | 500 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TMLF® (2x2) |
|
|
MCP1703AT-1502E/MBIC REG LINEAR 1.5V 200MA SOT89-3 |
2,275 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 1.5V | - | - | 200mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
TPS72011DRVRIC REG LINEAR 1.1V 350MA 6WSON |
2,980 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 4.5V | 1.1V | - | 0.2V @ 350mA | 350mA | 38 µA | 80 µA | 85dB ~ 50dB (10Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
MP6402DQT-EF-LF-ZIC REG LIN POS ADJ 500MA 8TQFN |
3,074 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Adjustable | 2 | 5.5V | 0.9V | 3.3V | 0.26V @ 500mA (Typ), 0.26V @ 500mA (Typ) | 500mA, 500mA | 580 µA | - | 60db ~ 51dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-TQFN (3x3) |
|
TLE4264-2GIC REG LINEAR 5V 150MA SOT223-4 |
1,433 |
|
Datasheet | OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 60 µA | 4 mA | 68dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
.JPG "LM237KC")
|
LM237KCIC REG LIN NEG ADJ 1.5A TO220-3 |
4,943 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | - | - | 77dB (120Hz) | - | Over Current, Over Temperature | -25°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
|
LM237KCE3IC REG LIN NEG ADJ 1.5A TO220-3 |
3,417 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | - | - | 77dB (120Hz) | - | Over Current, Over Temperature | -25°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
TPS73201DBVTG4IC REG LIN POS ADJ 250MA SOT23-5 |
1,257 |
|
Datasheet | TPS732xx | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | 0.15V @ 250mA | 250mA | 550 µA | 950 µA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
MPQ20056GJ-33-AEC1-ZIC REG LIN 3.3V 250MA TSOT23-5 |
3,034 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 250mA | 250mA | 250 µA | 330 µA | 65dB ~ 33dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | TSOT-23-5 |
|
MAX8634ETA+TIC REG LIN POS PROG 300MA 8TDFN |
2,400 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Programmable | 2 | 5.5V | 2.6V, 2.6V | 2.85V, 2.85V | 0.2V @ 100mA, 0.2V @ 100mA | 300mA, 300mA | 75 µA | - | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 8-TDFN (3x3) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
