Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP5951MF-1.8IC REG LINEAR 1.8V 150MA SOT23-5 |
4,486 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.35V @ 150mA | 150mA | 55 µA | 70 µA | 60dB ~ 50dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LP5951MF-2.8IC REG LINEAR 2.8V 150MA SOT23-5 |
2,848 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.35V @ 150mA | 150mA | 55 µA | 70 µA | 60dB ~ 50dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP5951MG-1.8IC REG LINEAR 1.8V 150MA SC70-5 |
3,780 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.35V @ 150mA | 150mA | 55 µA | 70 µA | 60dB ~ 50dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
|
LP5951MG-2.0IC REG LINEAR 2V 150MA SC70-5 |
1,358 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2V | - | 0.35V @ 150mA | 150mA | 55 µA | 70 µA | 60dB ~ 50dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
|
LP5951MG-3.0IC REG LINEAR 3V 150MA SC70-5 |
2,450 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.35V @ 150mA | 150mA | 55 µA | 70 µA | 60dB ~ 50dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
TPS78236DRVRIC REG LINEAR 3.6V 150MA 6WSON |
3,179 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.25V @ 150mA | 150mA | 1.3 µA | 8 µA | 40dB ~ 15dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
MIC5355-SGYMME-TRIC REG LINEAR 1.8V/3.3V 8MSOP |
3,542 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 3.3V | - | 0.8V @ 500mA, 0.8V @ 500mA | 500mA, 500mA | 0.53 µA | 200 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP-EP |
|
|
TPS70630DRVRIC REG LINEAR 3V 150MA 6WSON |
3,174 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3V | - | 1.54V @ 150mA | 150mA | 2.55 µA | 350 µA | 80dB ~ 52dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS70615DRVRIC REG LINEAR 1.5V 150MA 6WSON |
4,243 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.5V | - | - | 150mA | 2.55 µA | 350 µA | 80dB ~ 52dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
AP7346D-3318FS6-7IC REG LIN 1.8V/3.3V X2DFN1212-6 |
2,696 |
|
Datasheet | - | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.25V | 1.8V, 3.3V | - | 0.39V @ 120mA, 0.29V @ 120mA | 130mA, 130mA | 100 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | X2-DFN1212-6 |
|
TCR2DG15,LFIC REG LINEAR 1.5V 200MA 4WCSP |
3,750 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.5V @ 100mA | 200mA | 70 µA | - | - | - | Inrush Current, Over Current, Thermal Shutdown | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |

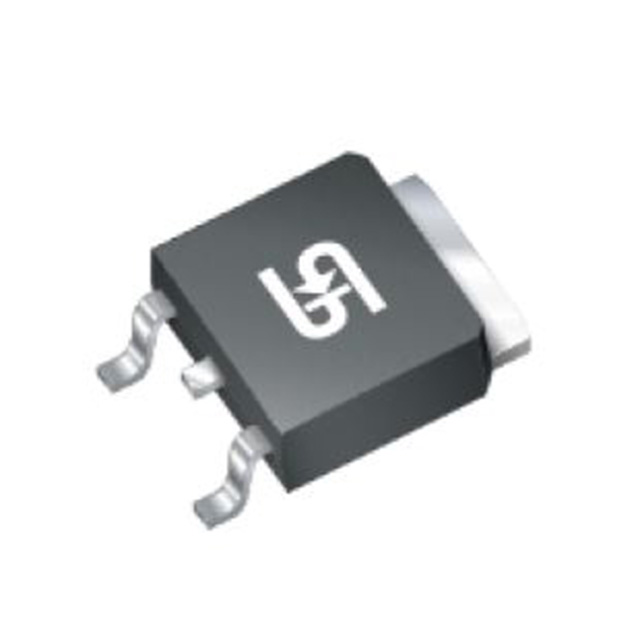

.jpg "TS78M05CP ROG")
|
TS78M05CP ROGIC REG LINEAR 5V 500MA TO252 |
1,662 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 500mA (Typ) | 500mA | 6 mA | - | 78dB (120Hz) | Current Limit | Over Temperature | 0°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
LDL112PU10RIC REG LINEAR 1V 1.2A 6DFN |
4,061 |
|
Datasheet | - | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.6V @ 1.2A | 1.2A | 70 µA | 400 µA | 57dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
TCR2DG13,LFIC REG LINEAR 1.3V 200MA 4WCSP |
2,320 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.3V | - | 0.7V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
78D06LIC REG LINEAR 6V 1A DPAK |
2,416 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Active | Positive | Fixed | 1 | 35V | 6V | - | 2V @ 350mA | 1A | 8 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) | |
|
|
78D08LIC REG LINEAR 8V 1A DPAK |
4,122 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Active | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 350mA | 1A | 8 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) | |
|
|
78D09LIC REG LINEAR 9V 1A DPAK |
4,362 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Active | Positive | Fixed | 1 | 35V | 9V | - | 2V @ 350mA | 1A | 8 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) | |
|
|
78D05LIC REG LINEAR 5V 1A DPAK |
4,443 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 350mA | 1A | 8 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) | |
|
AP1122EG-UIC REG LINEAR 1.2V 1A SOT223-3 |
4,132 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Obsolete | Positive | Fixed | 1 | 12V | 1.2V | - | 1.3V @ 1A | 1A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
MIC5238-1.0YD5IC REG LINEAR 1V 150MA TSOT23-5 |
2,332 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 1V | - | 0.5V @ 150mA | 150mA | 20 µA | 2.5 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
