Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R1111N501B-TR-FEIC REG LINEAR 5V 150MA SOT23-5 |
2,765 |
|
Datasheet | R1111N | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 5V | - | 0.26V @ 100mA | 150mA | 70 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
TCR3UF36A,LM(CTIC REG LINEAR 3.6V 300MA SMV |
2,645 |
|
Datasheet | TCR3UF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.245V @ 300mA | 300mA | 680 nA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
STLQ020C22R200 MA ULTRA-LOW QUIESCENT CURRE |
2,580 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.2V | - | 0.16V @ 200mA | 200mA | 1 µA | 150 µA | 52dB ~ 45dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-323-5 |
|
TPS7A0508PDBZRIC REG LINEAR 0.8V 200MA SOT23-3 |
2,028 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.8V | - | 1V @ 200mA | 200mA | 3 µA | - | 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
NCP114ASN330T2GIC REG LINEAR 3.3V 300MA 5TSOP |
1,474 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.255V @ 300mA | 300mA | 95 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-TSOP |
|
AZ1117CD-1.2TRG1IC REG LINEAR 1.2V 1A TO252-2 |
24,304 |
|
Datasheet | AZ1117C | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 1.2V | - | 1.4V @ 800mA | 1A | 6 mA | - | 70dB (120Hz) | - | Thermal Shutdown | -20°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
TS5205CX5 RFGIC REG LIN POS ADJ 150MA SOT25 |
23,881 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 16V | 1.24V | 8V | 0.275V @ 150mA | 150mA | 125 µA | 1.9 mA | 75dB (100Hz) | Current Limit, Enable | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-25 |
|
|
TS5205CX550 RFGIC REG LINEAR 5V 150MA SOT25 |
7,571 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.275V @ 150mA | 150mA | 125 µA | 1.9 mA | 75dB (100Hz) | Current Limit, Enable | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-25 |
|
LP5951MFX-3.3/NOPBIC REG LINEAR 3.3V 150MA SOT23-5 |
5,585 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.35V @ 150mA | 150mA | 55 µA | 70 µA | 60dB ~ 50dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
AZ1117CD-1.8TRG1IC REG LINEAR 1.8V 1A TO252-2 |
2,295 |
|
Datasheet | AZ1117C | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 1.8V | - | 1.4V @ 800mA | 1A | 6 mA | - | 70dB (120Hz) | - | Thermal Shutdown | -20°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
LP5900TLX-2.5/NOPBIC REG LINEAR 2.5V 150MA 4DSBGA |
14,980 |
|
Datasheet | - | 4-WFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.15V @ 150mA | 150mA | 50 µA | 230 µA | 85dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 4-DSBGA (1x1) |
|
|
TS5213CX533 RFGIC REG LINEAR 3.3V 80MA SOT25 |
11,955 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.42V @ 80mA | 80mA | - | 3 mA | 65dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-25 |
|
MIC5255-2.5YM5-TRIC REG LINEAR 2.5V 150MA SOT23-5 |
11,351 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.25V @ 150mA | 150mA | 150 µA | - | 60dB ~ 50dB (10Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
AP7361E-25FGE-7LDO CMOS HICURR U-DFN3030-8 T&R |
10,026 |
|
Datasheet | - | 8-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.6V @ 1A | 1A | 91 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | U-DFN3030-8 (Type E) |
|
NCP134AMX120TCGIC REG LINEAR 1.2V 500MA 4XDFN |
9,885 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.25V @ 500mA | 500mA | - | - | 80dB ~ 70dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-XDFN (1.2x1.2) |
|
RT9198-33GBRIC REG LIN 3.3V 300MA SOT23-5R |
9,696 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.33V @ 300mA | 300mA | 130 µA | - | 60dB ~ 30dB (100Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5R |
|
TC1055-2.5VCT713IC REG LINEAR 2.5V 100MA SOT23-5 |
6,132 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 2.5V | - | 0.25V @ 100mA | 100mA | 80 µA | - | 64dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP5910-1.1YKARIC REG LINEAR 1.1V 300MA 4DSBGA |
5,275 |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.3V | 1.1V | - | - | 300mA | 25 µA | 350 µA | 80dB ~ 25dB (100Hz ~ 2MHz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA |
|
MC78L08ABDR2GIC REG LINEAR 8V 100MA 8SOIC |
4,997 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 8V | - | - | 100mA | 6 mA | - | 57dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|

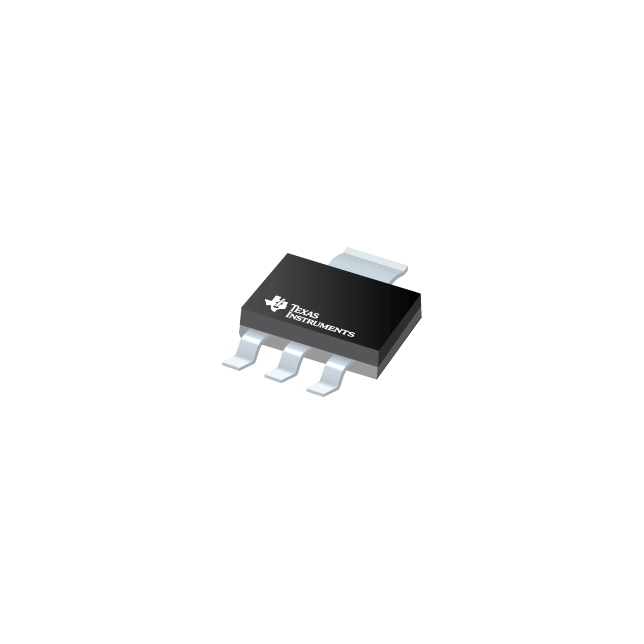

SN78MCDCYRIC REG LINEAR LDO 5V 0.5A SOT223 |
4,965 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 25V | - | - | 2V @ 350mA | 500mA | - | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-4 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
