Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP1117D15L-UIC REG LINEAR 1.5V 1A TO252-3 |
3,266 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 18V | 1.5V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AP1117D18L-UIC REG LINEAR 1.8V 1A TO252-3 |
1,810 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 18V | 1.8V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AP1117D25L-UIC REG LINEAR 2.5V 1A TO252-3 |
2,252 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 18V | 2.5V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AP1117D33L-UIC REG LINEAR 3.3V 1A TO252-3 |
4,830 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AP1117DL-UIC REG LINEAR POS ADJ 1A TO252-3 |
4,396 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Adjustable | 1 | 18V | 1.25V | 5V | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|

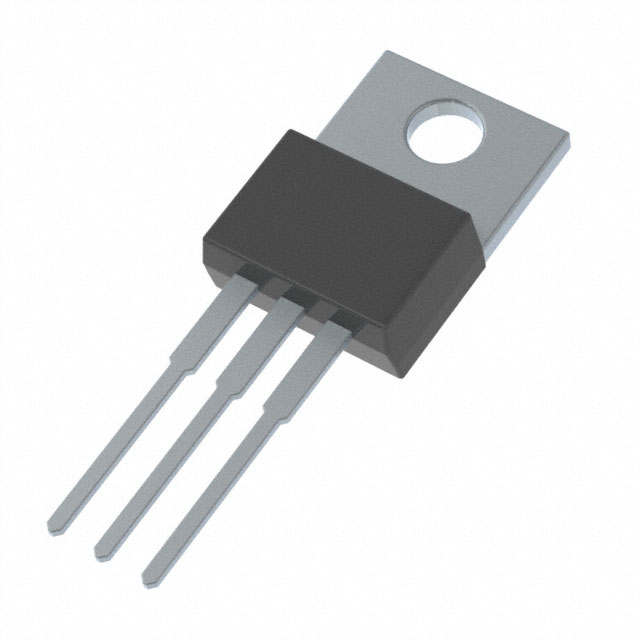

LM317T-BPInterface |
2,490 |
|
Datasheet | - | TO-220-3 | Bulk | Active | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 100 µA | - | - | - | - | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
AP2213D-3.0TRE1IC REG LINEAR 3V 500MA TO252-2 |
2,263 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 3V | - | 0.7V @ 500mA | 500mA | 180 µA | 28 mA | 75dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
TPS76050DBVRG4IC REG LINEAR 5V 50MA SOT23-5 |
2,844 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 16V | 5V | - | 0.18V @ 50mA | 50mA | 115 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP2950CDT-3.3RKIC REG LINEAR 3.3V 100MA DPAK |
2,433 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
LP2950CDT-5.0RKIC REG LINEAR 5V 100MA DPAK |
2,631 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
S-1740A17-M5T1U4IC REG LINEAR 1.7V 100MA SOT23-5 |
4,858 |
|
Datasheet | S-1740 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.7V | - | 0.06V @ 10mA | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1740C17-M5T1U4IC REG LINEAR 1.7V 100MA SOT23-5 |
3,398 |
|
Datasheet | S-1740 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.7V | - | 0.06V @ 10mA | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1740C20-M5T1U4IC REG LINEAR 2V 100MA SOT23-5 |
1,415 |
|
Datasheet | S-1740 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2V | - | 0.04V @ 10mA | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1740C21-M5T1U4IC REG LINEAR 2.1V 100MA SOT23-5 |
3,884 |
|
Datasheet | S-1740 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.1V | - | 0.04V @ 10mA | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1741A17-M5T1U4IC REG LINEAR 1.7V 100MA SOT23-5 |
2,175 |
|
Datasheet | S-1741 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.7V | - | 0.06V @ 10mA | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1741C10-M5T1U4IC REG LINEAR 1V 100MA SOT23-5 |
2,224 |
|
Datasheet | S-1741 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | - | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1741C17-M5T1U4IC REG LINEAR 1.7V 100MA SOT23-5 |
3,593 |
|
Datasheet | S-1741 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.7V | - | 0.06V @ 10mA | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1741C18-M5T1U4IC REG LINEAR 1.8V 100MA SOT23-5 |
2,295 |
|
Datasheet | S-1741 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.05V @ 10mA | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1741C20-M5T1U4IC REG LINEAR 2V 100MA SOT23-5 |
3,695 |
|
Datasheet | S-1741 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2V | - | 0.04V @ 10mA | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1741C21-M5T1U4IC REG LINEAR 2.1V 100MA SOT23-5 |
2,593 |
|
Datasheet | S-1741 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.1V | - | 0.04V @ 10mA | 100mA | 530 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
