Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS71711DCKRG4IC REG LINEAR 1.1V 150MA SC70-5 |
1,948 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6.5V | 1.1V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
TPS71718DSERG4IC REG LINEAR 1.8V 150MA 6WSON |
1,440 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
|
TPS71719DCKRG4IC REG LINEAR 1.9V 150MA SC70-5 |
4,356 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6.5V | 1.9V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
LP3992IMFX-1.5IC REG LINEAR 1.5V 30MA SOT23-5 |
4,461 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.2V | 1.5V | - | - | 30mA | 50 µA | - | 40dB ~ 30dB (1kHz ~ 20kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
MIC2951-02BM-TRIC REG LIN POS ADJ 150MA 8SOIC |
4,238 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable (Fixed) | 1 | 30V | 1.24V (5V) | 29V | 0.6V @ 150mA | 150mA | 300 µA | 8 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
LP2951-02BMIC REG LIN POS ADJ 100MA 8SOIC |
2,808 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Discontinued at Digi-Key | Positive | Adjustable (Fixed) | 1 | 30V | 1.24V (5V) | 29V | 0.6V @ 100mA | 100mA | 150 µA | 14 mA | - | Enable, Error Flag | - | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MC7824CTIC REG LINEAR 24V 1A TO220AB |
4,324 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 24V | - | 2V @ 1A (Typ) | 1A | 6.5 mA | - | 61dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
MC7912CTIC REG LINEAR -12V 1A TO220AB |
4,198 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | 1.3V @ 1A (Typ) | 1A | - | - | 61dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
MC7915CTIC REG LINEAR -15V 1A TO220AB |
3,018 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A (Typ) | 1A | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
MC7809CTIC REG LINEAR 9V 1A TO220AB |
1,497 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 9V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 61dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
MC7818CTIC REG LINEAR 18V 1A TO220AB |
1,430 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 18V | - | 2V @ 1A (Typ) | 1A | 6.5 mA | - | 57dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
MC7908CTIC REG LINEAR -8V 1A TO220AB |
1,659 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -8V | - | 1.3V @ 1A (Typ) | 1A | - | - | 62dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
MC7918CTIC REG LINEAR -18V 1A TO220AB |
3,009 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -18V | - | 1.3V @ 1A (Typ) | 1A | - | - | 59dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
S-1132B21-U5T1GIC REG LINEAR 2.1V 300MA SOT89-5 |
1,065 |
|
Datasheet | S-1132 | SOT-89-5/6 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 6.5V | 2.1V | - | 0.23V @ 100mA | 300mA | 1 µA | 40 µA | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-5 |
|
|
NCP7809CTGIC REG LINEAR 9V 1A TO220AB |
3,301 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 26V | 9V | - | - | 1A | - | - | - | - | Over Temperature, Short Circuit | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
NCP7815CTGIC REG LINEAR 15V 1A TO220AB |
4,308 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 30V | 15V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
NCP7915CTGIC REG LINEAR 15V 1A TO220AB |
2,637 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 30V | 15V | - | - | 1A | - | - | - | - | - | 0°C ~ 125°C | - | - | Through Hole | TO-220AB |
|

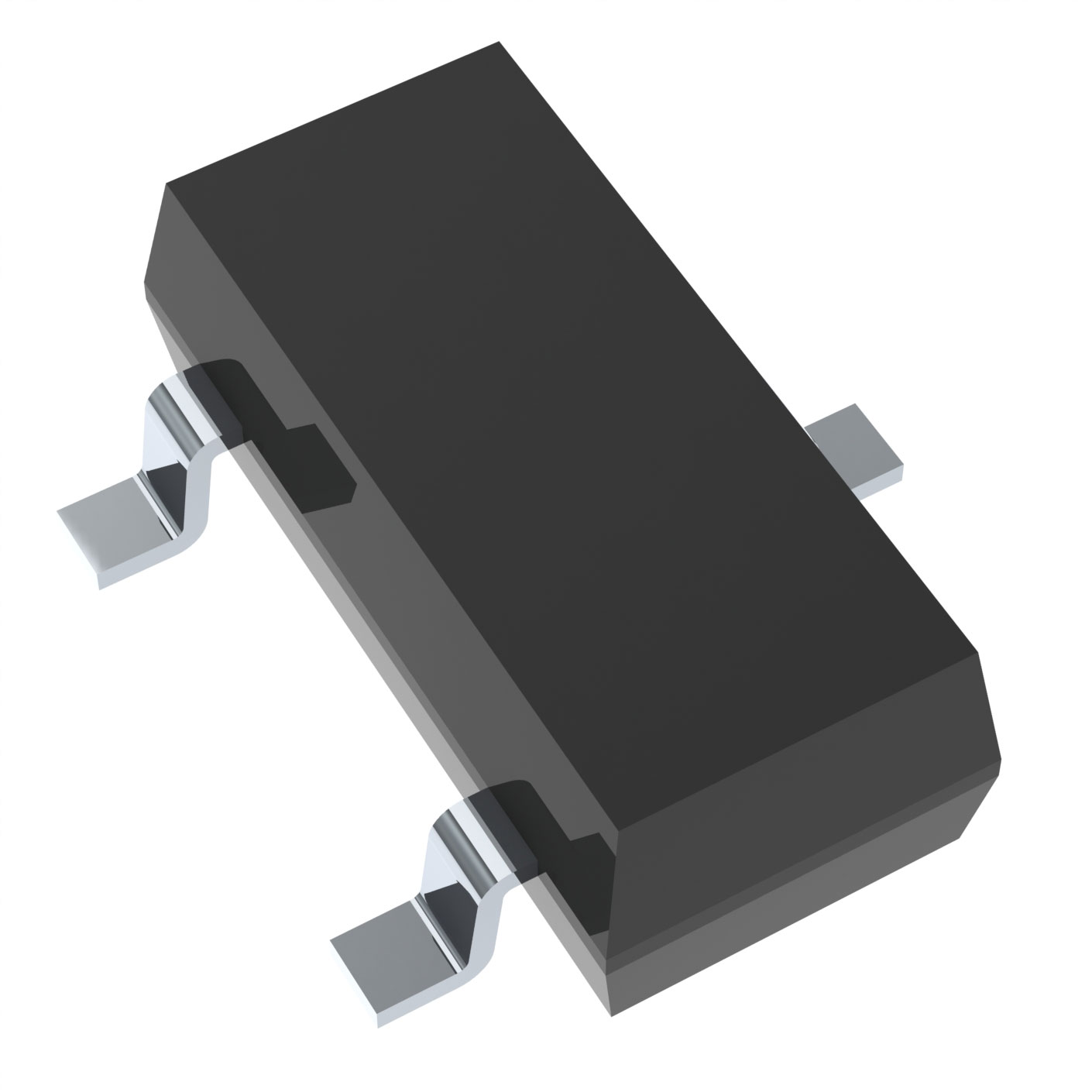

ZMR250QFTALINEAR REG LOW CURR SOT23 T&R 3K |
3,261 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 22.5V | 2.5V | - | - | 50mA | 40 µA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23 (Type DN) |
|
RAA214035GNP#MC02A LOW NOISE LDO, 20 LEAD 3.5X3. |
3,394 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tray | Active | Positive | Adjustable/Programmable | 1 | 6.5V | 0.5V | 3.65V, 5.1V | 0.2V @ 3A | 3A | - | - | 60dB ~ 25dB (120Hz ~ 1MHz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-QFN (3.5x3.5) |
|
|
PQ20WZ1UIC REG LINEAR POS ADJ 1A SC63 |
2,190 |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 24V | 3V | 20V | 0.5V @ 500mA | 1A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | SC-63 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
