Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC79M05BDTRKGIC REG LINEAR -5V 500MA DPAK |
8,896 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -5V | - | 1.1V @ 500mA (Typ) | 500mA | - | - | 66dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
TLF80511EJV50XUMA1IC REG LIN 5V 400MA 8DSO E-PAD |
17,135 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 46 µA | 80 µA | 55dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
TPS70933DBVTIC REG LINEAR 3.3V 150MA SOT23-5 |
6,358 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 1.4V @ 150mA | 150mA | 2.05 µA | 350 µA | 80dB ~ 52dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS76150DBVRIC REG LINEAR 5V 100MA SOT23-5 |
13,170 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.28V @ 100mA | 100mA | 115 µA | 4 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
XC6227C331PR-GIC REG LINEAR 3.3V 700MA SOT89-5 |
42,009 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.2V @ 300mA | 700mA | 220 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
__2.jpg "LD1086DTTR")
|
LD1086DTTRIC REG LINEAR POS ADJ 1.5A DPAK |
9,611 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 30V | 1.25V | 28.5V | 1.5V @ 1.5A | 1.5A | 10 mA | - | 88dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
LD1086DT50TRIC REG LINEAR 5V 1.5A DPAK |
7,442 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
LP2950ACDT-5RKGIC REG LINEAR 5V 100MA DPAK |
6,799 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
LM1117MP-3.3/NOPBIC REG LINEAR 3.3V 800MA SOT223 |
63,315 |
|
Datasheet | LM1117-3.3 | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223 |
|
LM317BD2TR4GIC REG LIN POS ADJ 1.5A D2PAK-3 |
30,679 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
LM1117IMP-3.3/NOPBIC REG LINEAR 3.3V 800MA SOT223 |
7,595 |
|
Datasheet | LM1117-3.3 | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223 |
|
|
LM1117MP-5.0/NOPBIC REG LINEAR 5V 800MA SOT223 |
7,344 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 5V | - | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223 |
|
|
LM340MPX-5.0/NOPBIC REG LINEAR 5V 1.5A SOT223-4 |
5,298 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A | 1.5A | 8 mA | - | 70dB (120Hz) | - | Over Current, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
MIC5200-3.3YS-TRIC REG LIN 3.3V 100MA SOT223-3 |
4,642 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 3.3V | - | 0.35V @ 100mA | 100mA | 350 µA | 1.5 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
LM1117MP-ADJ/NOPBIC REG LIN POS ADJ 800MA SOT223 |
2,708 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 15V | 1.25V | 13.8V | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223 |
|
|
LM7805MPX/NOPBIC REG LINEAR 5V 1.5A SOT223-4 |
2,207 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A | 1.5A | 8 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
LF33ABDT-TRIC REG LINEAR 3.3V 500MA DPAK |
35,014 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.7V @ 500mA | 500mA | 1 mA | 12 mA | 80dB ~ 65dB (120Hz ~ 65dB) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
TPS73201QDBVRQ1IC REG LIN POS ADJ 250MA SOT23-5 |
9,743 |
|
Datasheet | TPS732xx | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.2V (1.2V) | 5.5V | 0.15V @ 250mA | 250mA | 550 µA | 950 µA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
TLE42744DV50ATMA1IC REG LINEAR 5V 400MA TO252-3 |
7,953 |
|
Datasheet | OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3 |
|

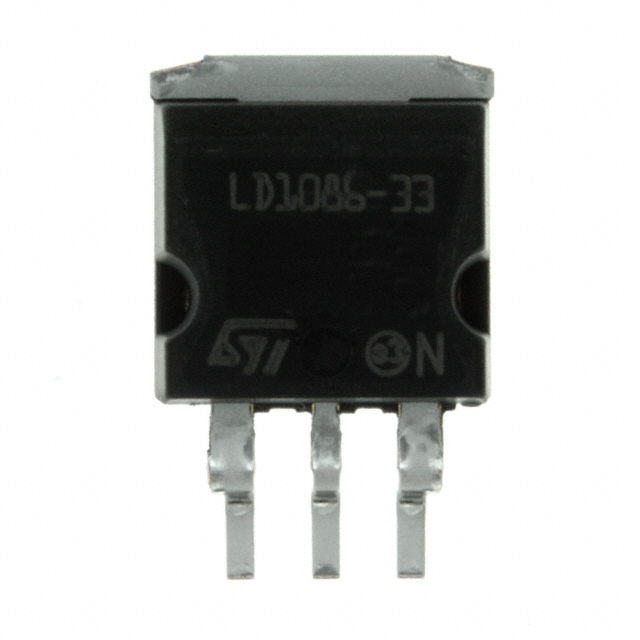

LD1086D2M33TRIC REG LINEAR 3.3V 1.5A D2PAK-3 |
11,980 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | 79dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
