Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3080EST#WPBFIC REG LIN POS ADJ 1.1A SOT223-3 |
357 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Adjustable | 1 | 36V | 0V | 36V | 1.6V @ 1.1A | 1.1A | 500 µA | 30 mA | 75dB ~ 20dB (120Hz ~ 1MHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
MAX8869EUE33+IC REG LIN POS ADJ 1A 16TSSOP |
3,145 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 0.8V (3.3V) | 5V | 0.35V @ 1A | 1A | 2 mA | 2.5 mA | 54dB (100kHz) | Enable, Reset, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP-EP |
|
LT3023IDD#TRPBFIC REG LINEAR POS ADJ 10DFN |
10,474 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 2 | 20V | 1.22V | 20V | 0.45V @ 100mA, 0.45V @ 100mA | 100mA, 100mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
LT3080IST#TRPBFIC REG LIN POS ADJ 1.1A SOT223-3 |
554 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 36V | 0V | 36V | 1.6V @ 1.1A | 1.1A | 500 µA | 30 mA | 75db ~ 20dB (120Hz ~ 1MHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
LT3080IST#PBFIC REG LIN POS ADJ 1.1A SOT223-3 |
493 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Adjustable | 1 | 36V | 0V | 36V | 1.6V @ 1.1A | 1.1A | 500 µA | 30 mA | 75db ~ 20dB (120Hz ~ 1MHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|

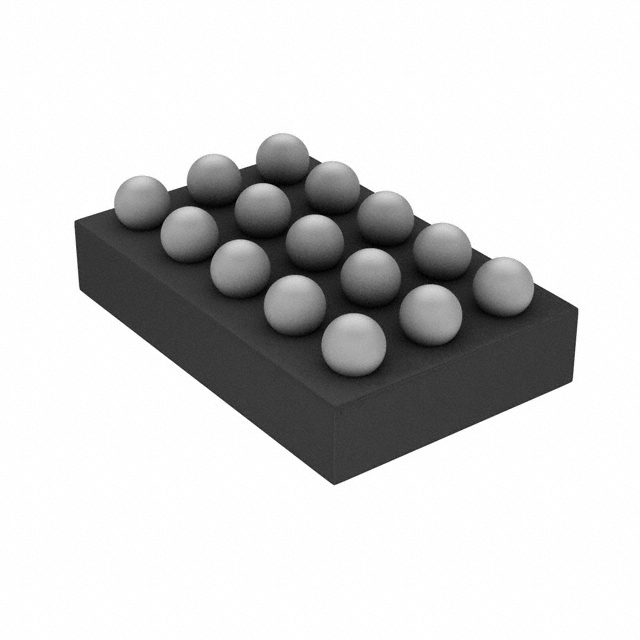

MAX15104EWL+TIC REG LINEAR POS ADJ 2A 15WLP |
2,948 |
|
Datasheet | - | 15-WFBGA, WLBGA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.6V | 5.2V | 0.15V @ 2A | 2A | 3.5 mA | - | 70dB (500kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 15-WLP (1.58x2.66) |
|
MAX666CSA+IC REG LIN POS ADJ 40MA 8SOIC |
4,746 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Adjustable (Fixed) | 1 | 16.5V | 1.3V (5V) | 16V | 0.9V @ 40mA | 40mA | 15 µA | - | - | Current Limit, Enable, Low Battery Detection | - | 0°C ~ 70°C | - | - | Surface Mount | 8-SOIC |
|
LT3062HDCB#TRMPBFIC REG LINEAR POS ADJ 200MA 8DFN |
1,059 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 0.6V | 40V | 0.53V @ 200mA | 200mA | 90 µA | 10 mA | 85dB (120Hz) | Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | - | - | Surface Mount | 8-DFN (2x3) |
|
LT3062HMS8E#PBFIC REG LIN POS ADJ 200MA 8MSOP |
468 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 45V | 0.6V | 40V | 0.53V @ 200mA | 200mA | 90 µA | 10 mA | 85dB (120Hz) | Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | - | - | Surface Mount | 8-MSOP-EP |
|
LT1963AES8-2.5#TRPBFIC REG LINEAR 2.5V 1.5A 8SOIC |
4,197 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 2.5V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SO |
|
|
LT1121CST-5#PBFIC REG LINEAR 5V 150MA SOT223-3 |
3,957 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Fixed | 1 | 30V | 5V | - | 0.7V @ 150mA | 150mA | 50 µA | 14 mA | 58dB (120Hz) | Enable | Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
LT1121CST-3.3#TRPBFIC REG LIN 3.3V 150MA SOT223-3 |
3,151 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 0.7V @ 150mA | 150mA | 50 µA | 14 mA | 58dB (120Hz) | Enable | Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
LT1963AEST-1.5#TRPBFIC REG LINEAR 1.5V 1.5A SOT223-3 |
868 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
LT1963AEST-1.5#PBFIC REG LINEAR 1.5V 1.5A SOT223-3 |
472 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
LT1963AES8-1.5#PBFIC REG LINEAR 1.5V 1.5A 8SOIC |
162 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SO |
|
LT3080IDD-1#TRPBFIC REG LINEAR POS ADJ 1.1A 8DFN |
648 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 36V | 0V | 36V | 1.6V @ 1.1A | 1.1A | 500 µA | 30 mA | 75db ~ 20dB (120Hz ~ 1MHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
|
|
LT1965IDD-1.8#PBFIC REG LINEAR 1.8V 1.1A 8DFN |
216 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tube | Active | Positive | Fixed | 1 | 20V | 1.8V | - | 0.49V @ 1.1A | 1.1A | 1.1 mA | 40 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
|
MAX15103EWL+TIC REG LINEAR POS ADJ 3A 15WLP |
7,767 |
|
Datasheet | - | 15-WFBGA, WLBGA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.6V | 5.2V | 0.2V @ 3A | 3A | 3.5 mA | - | 40dB (100kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 15-WLP (1.58x2.66) |
|
|
LT1117IST-5#TRPBFIC REG LINEAR 5V 800MA SOT223-3 |
4,500 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 5V | - | 1.3V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
LT3055EDE#TRPBFIC REG LIN POS ADJ 500MA 16DFN |
2,997 |
|
Datasheet | - | 16-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 0.6V | 40V | 0.59V @ 500mA | 500mA | 130 µA | 25 mA | 85dB (120Hz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-DFN (4x3) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
