Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCR2EE115,LM(CTIC REG LINEAR 1.15V 200MA ESV |
3,576 |
|
Datasheet | TCR2EE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.15V | - | 0.67V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | ESV |
|

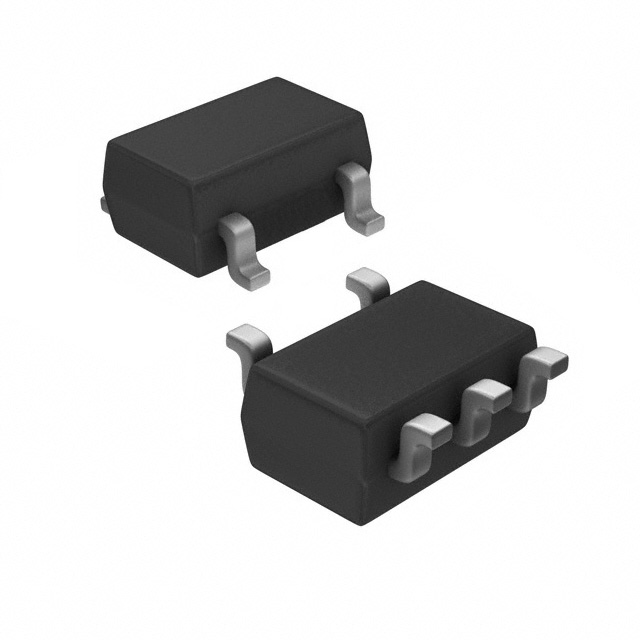

TCR2EF12,LM(CTIC REG LINEAR 1.2V 200MA SMV |
1,497 |
|
Datasheet | TCR2EF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.57V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
TCR2EF25,LM(CTIC REG LDO 2.5V 0.2A SMV |
3,759 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.23V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
TCR2EN115,LFIC REG LINEAR 1.15V 200MA 4SDFN |
1,305 |
|
Datasheet | TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.15V | - | 0.65V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2EN285,LFIC REG LINEAR 2.85V 200MA 4SDFN |
2,249 |
|
Datasheet | TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.21V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2EN32,LFIC REG LINEAR 3.2V 200MA 4SDFN |
2,329 |
|
Datasheet | TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.2V | - | 0.18V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2EN34,LFIC REG LINEAR 3.4V 200MA 4SDFN |
3,899 |
|
Datasheet | TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.4V | - | 0.18V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2EN35,LFIC REG LINEAR 3.5V 200MA 4SDFN |
3,507 |
|
Datasheet | TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.5V | - | 0.18V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2LN08,LFIC REG LINEAR 0.8V 200MA 4SDFN |
4,840 |
|
Datasheet | TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.8V | - | 1.56V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2LN25,LFIC REG LINEAR 2.5V 200MA 4SDFN |
4,678 |
|
Datasheet | TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.36V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2LN36,LFIC REG LINEAR 3.6V 200MA 4SDFN |
3,872 |
|
Datasheet | TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.28V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
MIC5265-2.0YMT-TRIC REG LINEAR 2V 150MA 6TDFN |
4,326 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2V | - | 0.5V @ 150mA | 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
MIC5265-2.9YMT-TRIC REG LINEAR 2.9V 150MA 6TDFN |
1,016 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.5V @ 150mA | 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
MIC5265-3.0YMT-TRIC REG LINEAR 3V 150MA 6TDFN |
3,102 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.5V @ 150mA | 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
MIC5265-3.3YMT-TRIC REG LINEAR 3.3V 150MA 6TDFN |
3,462 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.5V @ 150mA | 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
TCR2LN18,LFIC REG LINEAR 1.8V 200MA 4SDFN |
3,006 |
|
Datasheet | TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
TCR2EF285,LM(CTIC REG LINEAR 2.85V 200MA SMV |
3,644 |
|
Datasheet | TCR2EF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.23V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
UM1550S5V Input Ultra Low IQ LDO |
4,203 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 8V | - | 5V | 0.3V @ 200mA | 300mA | 3.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
S-19251D35H-M5T1U4LINEAR IC |
1,082 |
|
Datasheet | S-19251 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.5V | - | 0.27V @ 100mA | 150mA | 4.5 µA | 50 µA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
S-19251B33H-M5T1U4LINEAR IC |
3,804 |
|
Datasheet | S-19251 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.27V @ 100mA | 150mA | 4.5 µA | 50 µA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
