Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

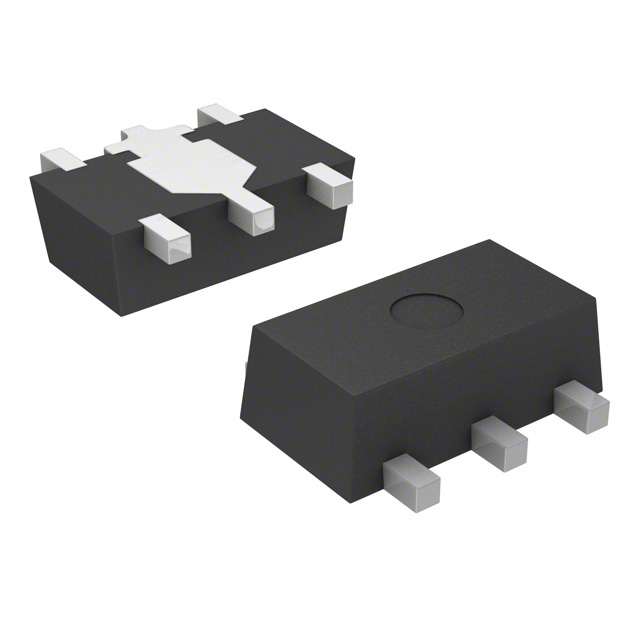

AP1152ADU18IC REG LINEAR 1.8V 300MA SOT89-5 |
3,447 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14.5V | 1.8V | - | - | 300mA | 100 µA | 3.6 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-5 |
|
|
AP1152ADU25IC REG LINEAR 2.5V 300MA SOT89-5 |
4,671 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14.5V | 2.5V | - | 0.44V @ 300mA | 300mA | 100 µA | 3.6 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-5 |
|
|
AP1152ADU33IC REG LINEAR 3.3V 300MA SOT89-5 |
4,012 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14.5V | 3.3V | - | 0.44V @ 300mA | 300mA | 100 µA | 3.6 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-5 |
|
|
AP1152ADU45IC REG LINEAR 4.5V 300MA SOT89-5 |
1,050 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14.5V | 4.5V | - | 0.44V @ 300mA | 300mA | 100 µA | 3.6 mA | 80dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-5 |
|
TS78M05ACP ROGIC REG LINEAR 5V 500MA TO252 |
4,215 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 500mA (Typ) | 500mA | 6 mA | - | 78dB (120Hz) | Current Limit | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
LP2950CZ-5.0IC REG LINEAR 5V 100MA TO92-3 |
4,923 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.6V @ 100mA | 100mA | 120 µA | 14 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
,TO-226_straightlead.jpg "LP2950CZ-3.3")
|
LP2950CZ-3.3IC REG LINEAR 3.3V 100MA TO92-3 |
2,970 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Tray | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 0.6V @ 100mA | 100mA | 120 µA | 14 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
BD15HA5WEFJ-E2IC REG LINEAR 1.5V 500MA 8HTSOP |
3,081 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 1.5V | - | 0.9V @ 500mA | 500mA | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD15HC0WEFJ-E2IC REG LINEAR 1.5V 1A 8HTSOP |
1,495 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 1.5V | - | 0.92V @ 1A | 1A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD18HA5WEFJ-E2IC REG LINEAR 1.8V 500MA 8HTSOP |
1,233 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 1.8V | - | 0.9V @ 500mA | 500mA | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD18HC0WEFJ-E2IC REG LINEAR 1.8V 1A 8HTSOP |
4,681 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 1.8V | - | 0.92V @ 1A | 1A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD25HA5WEFJ-E2IC REG LINEAR 2.5V 500MA 8HTSOP |
2,705 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 2.5V | - | 0.9V @ 500mA | 500mA | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD25HC0WEFJ-E2IC REG LINEAR 2.5V 1A 8HTSOP |
2,483 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 2.5V | - | 0.92V @ 1A | 1A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD30HA5WEFJ-E2IC REG LINEAR 3V 500MA 8HTSOP |
3,302 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 3V | - | 0.9V @ 500mA | 500mA | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD30HC0WEFJ-E2IC REG LINEAR 3V 1A 8HTSOP |
4,059 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 3V | - | 0.92V @ 1A | 1A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD50HA5WEFJ-E2IC REG LINEAR 5V 500MA 8HTSOP |
1,392 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 5V | - | 0.9V @ 500mA | 500mA | 6 µA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD60HA5WEFJ-E2IC REG LINEAR 6V 500MA 8HTSOP |
1,783 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 6V | - | 0.9V @ 500mA | 500mA | 6 µA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD70HA5WEFJ-E2IC REG LINEAR 7V 500MA 8HTSOP |
3,739 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 7V | - | 0.9V @ 500mA | 500mA | 6 µA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD70HC0WEFJ-E2IC REG LINEAR 7V 1A 8HTSOP |
4,348 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 7V | - | 0.92V @ 1A | 1A | 6 µA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
NJM2390U-TE1IC REG LIN POS ADJ 100MA SOT89-3 |
1,523 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 18V | 2.465V | 18V | - | 100mA | 4 µA | - | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-3 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
