Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L7912CD2T-TRIC REG LINEAR -12V 1.5A D2PAK |
4,571 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -12V | - | 1.1V @ 1A (Typ) | 1.5A | 3 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | D2PAK |
|
NCV317MBSTT3GIC REG LIN POS ADJ 500MA SOT223 |
3,790 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 500mA | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-223 (TO-261) |
|
LP2985-50DBVTIC REG LINEAR 5V 150MA SOT23-5 |
2,211 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.58V @ 150mA | 150mA | 95 µA | 2.5 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP5907UVE-1.8/NOPBIC REG LINEAR 1.8V 250MA 4DSBGA |
2,000 |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.2V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSBGA |
|
|
LP5907UVE-3.3/NOPBIC REG LINEAR 3.3V 250MA 4DSBGA |
1,959 |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSBGA |
|
|
TPS76333QDBVRQ1IC REG LINEAR 3.3V 150MA SOT23-5 |
1,291 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.5V @ 150mA | 150mA | 100 µA | 140 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
RT9013-33GBIC REG LINEAR 3.3V 500MA SOT23-5 |
147 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.4V @ 500mA | 500mA | 50 µA | - | 50dB (10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
XC6206P252MR-GIC REG LINEAR 2.5V 150MA SOT23 |
35,634 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.71V @ 100mA | 150mA | 3 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23 |
|
XC6201P502MR-GIC REG LINEAR 5V 200MA SOT25 |
10,701 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 5V | - | 0.6V @ 200mA | 200mA | 6 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25-5 |
|
|
LP2982AIM5-3.3/NOPBIC REG LINEAR 3.3V 50MA SOT23-5 |
10,365 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.33V @ 80mA | 50mA | 95 µA | 1.4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
TPS79933QDDCRQ1IC REG LINEAR 3.3V 200MA SOT23-5 |
9,980 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.16V @ 200mA | 200mA | 60 µA | - | 70dB ~ 38dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-THIN |
|
AP7312-1833W6-7IC REG LINEAR 1.8V/3.3V SOT26 |
9,927 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 1.8V, 3.3V | - | 0.3V @ 150mA, 0.2V @ 150mA | 150mA, 150mA | 80 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-26 |
|
|
LP2982AIM5-5.0/NOPBIC REG LINEAR 5V 50MA SOT23-5 |
9,592 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.33V @ 80mA | 50mA | 95 µA | 1.4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
NJM78M05SDL1-TE1IC REG LINEAR 5V 500MA TO252-3 |
6,537 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 5V | - | 1.8V @ 500mA | 500mA | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
|
L7815ABD2T-TRIC REG LINEAR 15V 1.5A D2PAK |
5,204 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 15V | - | 2V @ 1A (Typ) | 1.5A | 6 mA | - | 58dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | D2PAK |
|
TS5205CX533 RFGIC REG LINEAR 3.3V 150MA SOT25 |
5,064 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.275V @ 150mA | 150mA | 125 µA | 1.9 mA | 75dB (100Hz) | Current Limit, Enable | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-25 |
|
XC6201P332PR-GIC REG LINEAR 3.3V 150MA SOT89 |
5,035 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.7V @ 160mA | 150mA | 5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89 |
|

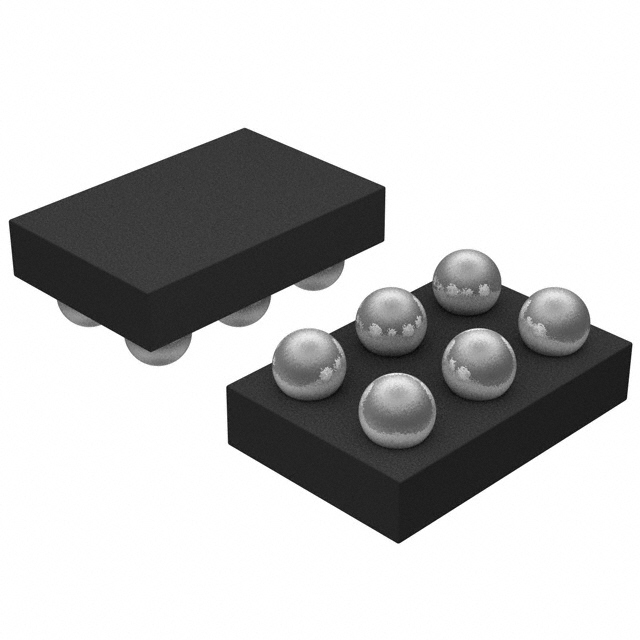

NCP137AFCTADJT2GIC REG LIN POS ADJ 700MA 6WLCSP |
4,908 |
|
Datasheet | - | 6-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.5V | 3V | 1.5V @ 700mA | 700mA | - | - | 85dB ~ 75dB (1kHz) | Enable | Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (1.2x0.8) |
|
TPS7A0215PDBVRIC REG LINEAR 1.5V 200MA SOT23-5 |
4,642 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | 0.56V @ 200mA | 200mA | 60 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
XC6201P302MR-GIC REG LINEAR 3V 250MA SOT25 |
3,505 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3V | - | 0.4V @ 200mA | 250mA | - | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
