Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP7383-44FDC-7LDO CMOS LOWCURR U-DFN2020-6 T&R |
1,013 |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 4.4V | - | 1.5V @ 150mA | 150mA | 3 µA | 3 µA | - | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type C) |
|
AP2205-15W5-7IC REG LINEAR 1.5V 250MA SOT25 |
2,048 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 1.5V | - | - | 250mA | - | - | 60dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-25 |
|
|
AP2205-28W5-7IC REG LINEAR 2.8V 250MA SOT25 |
2,204 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 2.8V | - | 0.5V @ 150mA | 250mA | - | - | 60dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-25 |
|

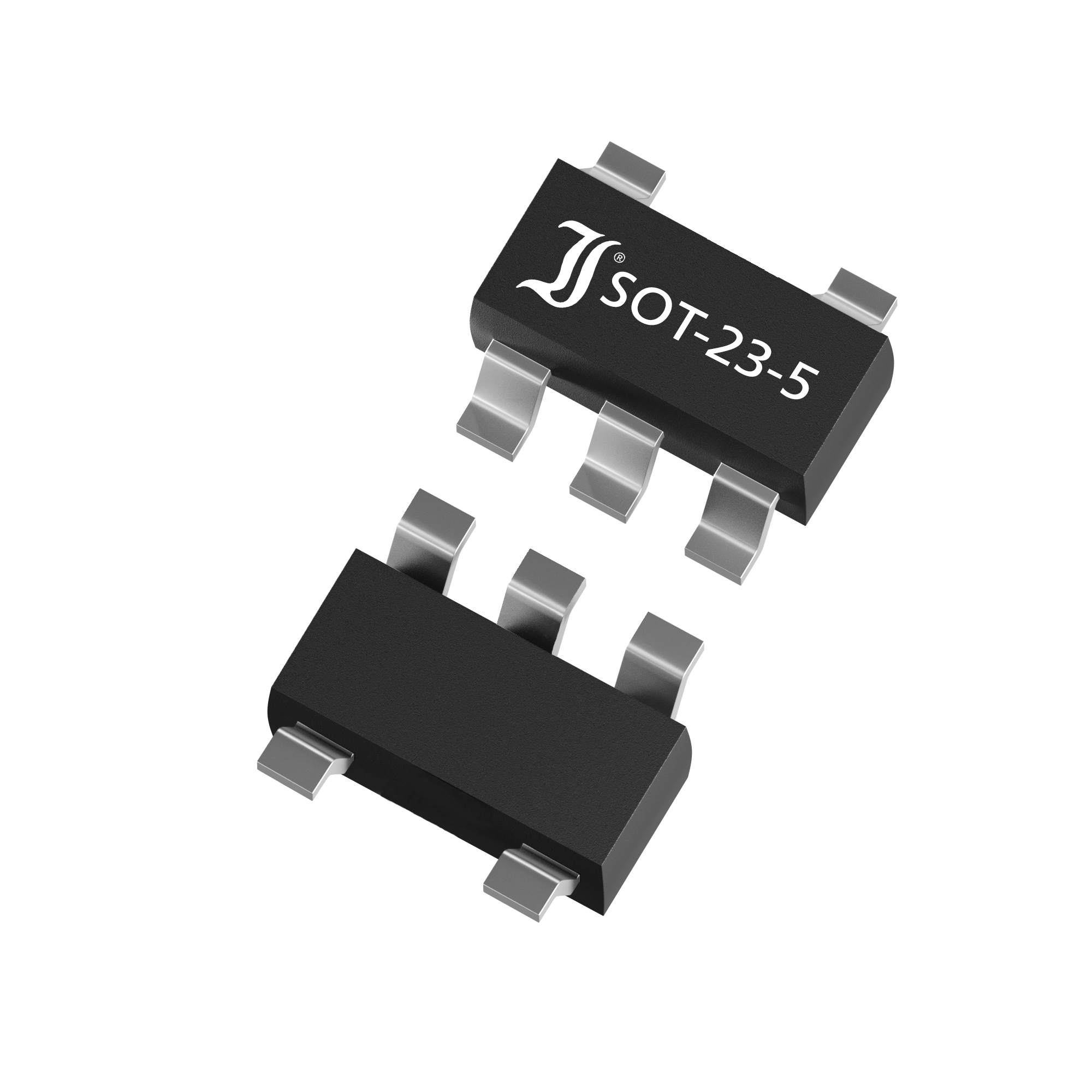

LDI92-1.2ENVR SOT-23-5 7V 1.188V 1.212V |
3,874 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Active | Positive | Fixed | 1 | 9V | 1.2V | - | 0.85V @ 400mA | 400mA | 1 µA | - | 53dB ~ 48dB (200Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
L78L15ABDIC REG LINEAR 15V 100MA 8SO |
3,758 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | - | 100mA | 6 mA | 6.5 mA | 39dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
AP7380-44Y-13IC REG LINEAR 4.4V 150MA SOT89 |
2,170 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 4.4V | - | 1.5V @ 150mA | 150mA | 3 µA | 3 µA | - | - | Current Limit, Thermal Shutdown | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
AP7380-36Y-13IC REG LIN 3.6V SOT89 T&R 2.5K |
2,577 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3.6V | - | 1.5V @ 150mA | 150mA | 3 µA | 3 µA | - | Enable | Current Limit, Thermal Shutdown | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
TCR2DG26,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
1,374 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.6V | - | 0.13V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG185,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
2,139 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.85V | - | 0.19V @ 500mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG35,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
1,574 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.5V | - | 0.11V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG36,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
4,454 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.11V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG20,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
4,550 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2V | - | 0.16V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG25,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
4,385 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.13V @ 100mA | 200mA | 70 µA | - | 75dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG32,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
3,279 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.2V | - | 0.11V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG24,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
2,240 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.4V | - | 0.13V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG19,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
4,361 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.9V | - | 0.17V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG27,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
2,086 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.12V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG34,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
4,349 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.4V | - | 0.11V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG29,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
2,486 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.12V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
|
|
TCR2DG125,LFLOW DROPOUT (LDO) IOUT: 200MA PD |
2,386 |
|
Datasheet | TCR2DG | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.25V | - | 0.75V @ 100mA | 200mA | 70 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSP (0.79x0.79) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
