Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP7347D-28W5-7LDO CMOS LOWCURR SOT25 T&R 3K |
2,395 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.36V @ 500mA | 500mA | 125 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|
|
AP7347D-11W5-7LDO CMOS LOWCURR SOT25 T&R 3K |
4,070 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.1V | - | 0.95V @ 500mA | 500mA | 125 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|
|
AP7347D-18W5-7LDO CMOS LOWCURR SOT25 T&R 3K |
4,168 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.55V @ 500mA | 500mA | 125 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|
|
AP7347D-10W5-7LDO CMOS LOWCURR SOT25 T&R 3K |
3,631 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.95V @ 500mA | 500mA | 125 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|

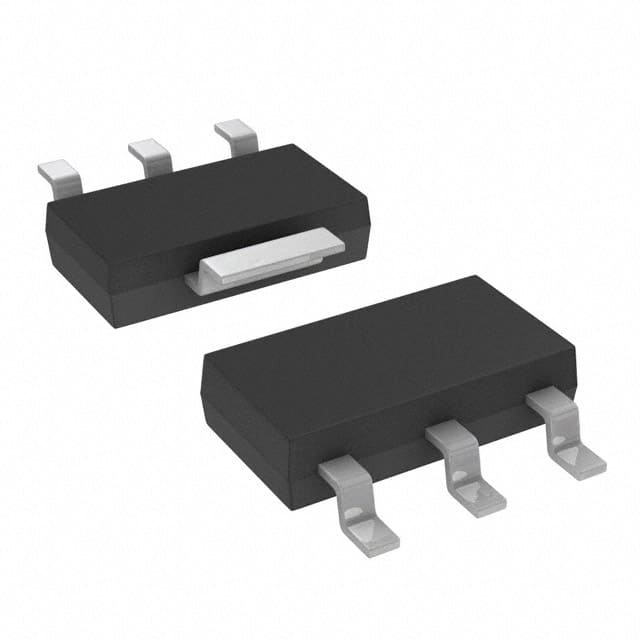

EAN61573601IC REG LINEAR LDO SOT223 |
4,649 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AP7315Q-25W5-7IC REG LINEAR 2.5V 150MA SOT25 |
3,353 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 2.5V | - | 0.32V @ 150mA | 150mA | 60 µA | 100 µA | 75dB (1kHz) | Enable | Over Current, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-25 |
|
LM317LZXAIC REG LIN POS ADJ 100MA TO92-3 |
1,819 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 100mA | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
AP2125KC-1.8TRE1IC REG LINEAR 1.8V 300MA SC82 |
2,039 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.36V @ 300mA | 300mA | 90 µA | - | 70db (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-1.8TRG1IC REG LINEAR 1.8V 300MA SC82 |
3,735 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.36V @ 300mA | 300mA | 90 µA | - | 70db (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-2.5TRE1IC REG LINEAR 2.5V 300MA SC82 |
3,558 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-2.5TRG1IC REG LINEAR 2.5V 300MA SC82 |
1,587 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-2.8TRE1IC REG LINEAR 2.8V 300MA SC82 |
4,259 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.8V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-2.8TRG1IC REG LINEAR 2.8V 300MA SC82 |
3,537 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.8V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-3.0TRE1IC REG LINEAR 3V 300MA SC82 |
3,907 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-3.0TRG1IC REG LINEAR 3V 300MA SC82 |
3,924 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-3.3TRE1IC REG LINEAR 3.3V 300MA SC82 |
2,902 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-3.3TRG1IC REG LINEAR 3.3V 300MA SC82 |
1,738 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-4.2TRE1IC REG LINEAR 4.2V 300MA SC82 |
2,986 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 4.2V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
|
AP2125KC-4.2TRG1IC REG LINEAR 4.2V 300MA SC82 |
4,714 |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 4.2V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82 |
|
AP2111H-2.5TRG1IC REG LINEAR 2.5V 600MA SOT223 |
1,612 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 1.3V @ 600mA | 600mA | 80 µA | - | 65dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
