Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADM7150ACPZ-1.8-R2IC REG LINEAR 1.8V 800MA 8LFCSP |
2,417 |
|
Datasheet | - | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 1.8V | - | - | 800mA | 7 mA | 12 mA | - | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (3x3) |
|
BD37201NUX-TRIC REG LIN POS ADJ 500MA 8VSON |
3,781 |
|
Datasheet | - | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1V | 4.5V | 0.5V @ 500mA | 500mA | - | 1 µA | 90dB ~ 55dB (1kHz ~ 1MHz) | Enable | Current Limit, Short Circuit, Thermal Shutdown, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | VSON008X2030 |
|

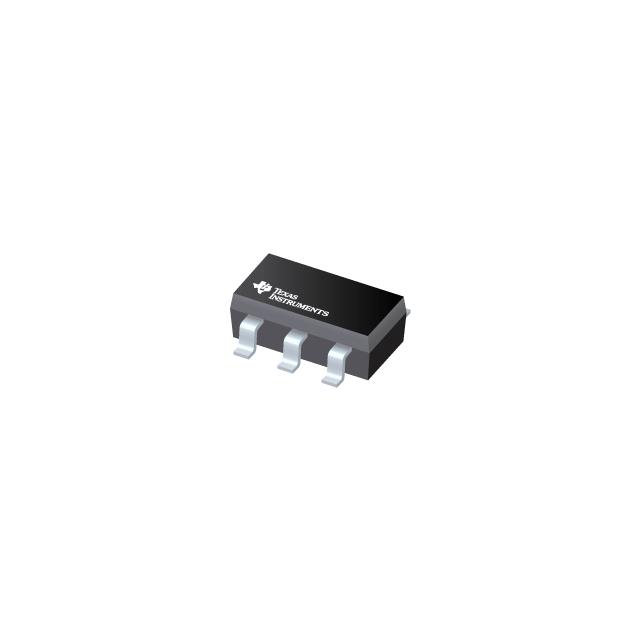

TPS76901SKGD1IC REG LIN POS ADJ 100MA 0XCEPT |
2,654 |
|
Datasheet | - | Die | Tube | Active | Positive | Adjustable | 1 | 10V | 1.2V | 4.5V | - | 100mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 210°C | - | - | Surface Mount | 0-XCEPT |
|

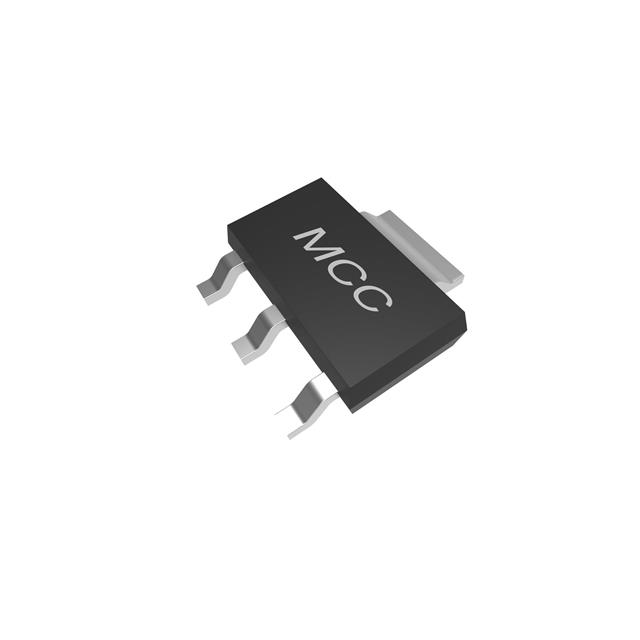

MCT1117C-ADJ-TPInterface |
4,925 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Adjustable | 1 | 30V | 1.25V | - | 1.4V @ 1A | 1A | 5 mA | - | 60dB ~ 62dB (120Hz ~ 1kHz) | - | Over Temperature | -20°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
TLV74112PDQNRIC REG LINEAR 1.2V 150MA 4X2SON |
1,310 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 1.02V @ 150mA | 150mA | 50 µA | 75 µA | 70dB ~ 55dB (100Hz ~ 1MHz) | Enable | Current Limit, Thermal Shutdown, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
TLV77325PDQNR300-MA HIGH-PSRR LOW-IQ LOW-DROP |
3,666 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.285V @ 300mA | 300mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
TLV77118PDBVR150MA SMALL-SIZE HIGH-PSRR LOW-D |
2,555 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.195V @ 150mA | 150mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TLV77128PDBVR150MA SMALL-SIZE HIGH-PSRR LOW-D |
4,778 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.14V @ 150mA | 150mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TLV77112PDBVR150MA SMALL-SIZE HIGH-PSRR LOW-D |
3,226 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.285V @ 150mA | 150mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TLV77125PDBVR150MA SMALL-SIZE HIGH-PSRR LOW-D |
4,796 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.15V @ 0.15A | 150mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TLV77133PDBVR150MA SMALL-SIZE HIGH-PSRR LOW-D |
1,300 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.14V @ 150mA | 150mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TLV77012PDBVR50MA SMALL-SIZE HIGH-PSRR LOW-DR |
3,115 |
|
Datasheet | TLV770 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.23V @ 50mA | 50mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TLV77028PDBVR50MA SMALL-SIZE HIGH-PSRR LOW-DR |
2,677 |
|
Datasheet | TLV770 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.05V @ 50mA | 50mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TLV77025PDBVR50MA SMALL-SIZE HIGH-PSRR LOW-DR |
3,038 |
|
Datasheet | TLV770 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.05V @ 50mA | 50mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TLV77018PDBVR50MA SMALL-SIZE HIGH-PSRR LOW-DR |
2,161 |
|
Datasheet | TLV770 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.05V @ 50mA | 50mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TLV77033PDBVR50MA SMALL-SIZE HIGH-PSRR LOW-DR |
4,693 |
|
Datasheet | TLV770 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.05V @ 50mA | 50mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TLV77012PDQNR50mA small-size high-PSRR |
3,980 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.23V @ 50mA | 50mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
|
TLV77025PDQNR50mA small-size high-PSRR |
4,823 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.05V @ 50mA | 50mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
|
TLV77018PDQNR50mA small-size high-PSRR |
3,174 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.065V @ 50mA | 50mA | 120 µA | - | 56dB ~ 55dB (100kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
|
TLV74333PDQNR3300MA LOW-IQ LOW-DROPOUT (LDO) V |
4,404 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.27V @ 300mA | 300mA | 60 µA | - | 68dB ~ 28dB (100Hz ~ 100kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
