Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XC6602A1810R-GIC REG LINEAR 1.8V 1A WLP-5-02 |
100 |
|
Datasheet | - | 5-XFBGA, WLBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3V | 1.8V | - | 0.129V @ 1A | 1A | 143 µA | - | 75dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-5-02 |
|
|
XC6602B1210R-GIC REG LINEAR 1.2V 1A WLP-5-02 |
100 |
|
Datasheet | - | 5-XFBGA, WLBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3V | 1.2V | - | 0.124V @ 1A | 1A | 143 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-5-02 |
|
XC6603A181ER-GIC REG LINEAR 1.8V 1A 6USPC |
100 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3V | 1.8V | - | 0.213V @ 1A | 1A | 143 µA | - | 75dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-USPC (1.8x2) |
|
XC6603A121MR-GIC REG LINEAR 1.2V 1A SOT26W |
100 |
|
Datasheet | - | SOT-26W | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3V | 1.2V | - | 0.208V @ 1A | 1A | 143 µA | - | 75dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-26W |
|
|
XC6603A151MR-GIC REG LINEAR 1.5V 1A SOT26W |
100 |
|
Datasheet | - | SOT-26W | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3V | 1.5V | - | 0.208V @ 1A | 1A | 143 µA | - | 75dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-26W |
|
|
XC6604A181ER-GIC REG LINEAR 1.8V 1A 6USPC |
1,035 |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3V | 1.8V | - | 0.213V @ 1A | 1A | 143 µA | - | 75dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-USPC (1.8x2) |
|
AP2115R5A-2.5TRG1IC REG LINEAR 2.5V 1A SOT89-5 |
1,000 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.75V @ 1A | 1A | 80 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
XC6701D302JR-GIC REG LINEAR 3V 150MA TO252 |
100 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 3V | - | 1.7V @ 100mA | 150mA | 105 µA | - | 50dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | TO-252 |
|
|
XC6701D502JR-GIC REG LINEAR 5V 150MA TO252 |
100 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 5V | - | 1.3V @ 100mA | 150mA | 105 µA | - | 50dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | TO-252 |
|
|
XC6701DF02JR-GIC REG LINEAR 15V 150MA TO252 |
100 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 15V | - | 0.85V @ 100mA | 150mA | 125 µA | - | 50dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | TO-252 |
|
|
XC6701D802JR-GIC REG LINEAR 8V 150MA TO252 |
4,072 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 8V | - | 1.15V @ 100mA | 150mA | 115 µA | - | 50dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | TO-252 |
|
|
XC6701DC02JR-GIC REG LINEAR 12V 150MA TO252 |
4,460 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 12V | - | 0.85V @ 100mA | 150mA | 115 µA | - | 50dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | TO-252 |
|

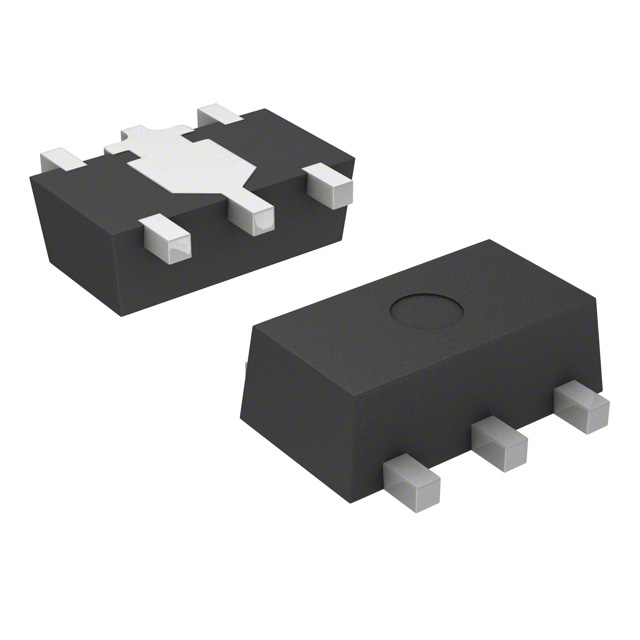

S-1212BG0-U5T1UVOLTAGE REGULATORS |
100 |
|
Datasheet | S-1212B | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 16V | - | 0.8V @ 250mA | 250mA | 8.5 µA | - | 30dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C (TA) | - | - | Surface Mount | SOT-89-5 |
|
BA178M20CP-E2IC REG LINEAR 20V 500MA TO220-3 |
500 |
|
Datasheet | - | TO-220-3 Cropped Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 33V | 20V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 58dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220-3 |
|
MAX16910EASA9/V+IC REG LIN POS ADJ 200MA 8SOIC |
1,186 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
BA178M05TIC REG LINEAR 5V 500MA TO220FP |
2,216 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Not For New Designs | Positive | Fixed | 1 | 25V | 5V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 78dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
S-19222B50A-U5T1U7IC REG LINEAR 5.0V |
100 |
|
Datasheet | S-19222xxxA | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.9V @ 200mA | 300mA | 40 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
S-19222B00A-E8T1U7IC REG LINEAR |
100 |
|
Datasheet | S-19222xxxA | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 36V | 1.8V | 30V | - | 300mA | 40 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
LM9076S-3.3/NOPBIC REG LINEAR 3.3V 150MA DDPAK |
4,146 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.25V @ 150mA | 150mA | 45 µA | 4.5 mA | 60dB (120kHz) | Reset | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LT3050IMSE-3.3#PBFIC REG LINEAR 3.3V 100MA 12MSOP |
3,812 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 45V | 3.3V | - | 0.55V @ 100mA | 100mA | 90 µA | 5.2 mA | 70dB (120Hz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
