Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC29502WUIC REG LINEAR POS ADJ 5A TO263-5 |
2,576 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Adjustable | 1 | 26V | 1.25V | 25V | 0.6V @ 5A | 5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
LT1764ET#PBFIC REG LINEAR POS ADJ 3A TO220-5 |
4,878 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.66V @ 3A | 3A | 1.5 mA | 200 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|
LT1084CT-5#PBFIC REG LINEAR 5V 5A TO220-3 |
4,866 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 20V | 5V | - | 1.5V @ 5A | 5A | 10 mA | - | 68dB (120Hz) | - | Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|

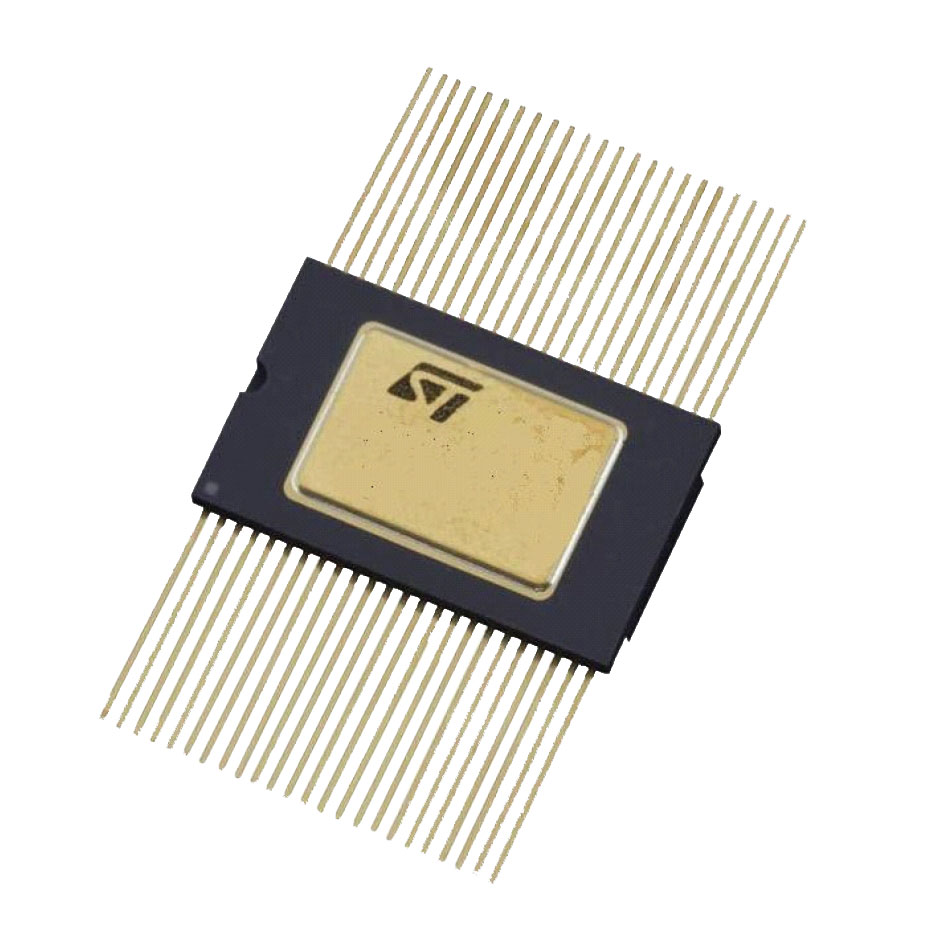

RHFL4913KPA1RAD-HARD 3.0 A ADJUSTABLE POSITI |
2,858 |
|
Datasheet | - | 16-CFlatpack | Strip | Active | Positive | Adjustable | 1 | 12V | 1.23V | 9V | 0.95V @ 2A | 2A | 6 mA | 60 mA | 70dB ~ 40dB (120Hz ~ 33kHz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-CFlatpack |
|
RHFL7913KPA1RAD-HARD 2.0A ADJUSTABLE NEGATIV |
2,171 |
|
Datasheet | - | 16-CFlatpack | Strip | Active | Negative | Adjustable | 1 | -12V | -12V | -1.2V | - | 2A | 3 mA | 90 mA | 60dB ~ 20dB (120Hz ~ 33kHz) | - | Over Current, Over Temperature | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-CFlatpack |
|

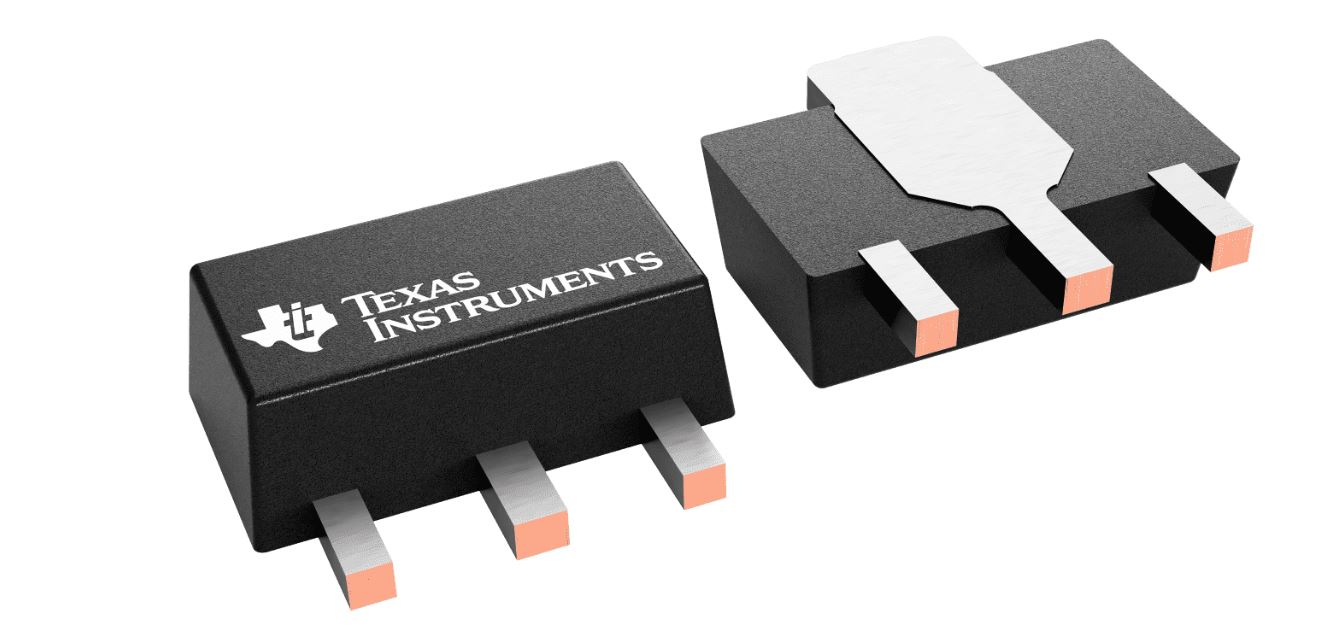

UA78L033AIPKR2100-MA 30-VLINEAR VOLTAGE REGULA |
1,663 |
|
Datasheet | UA78L | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 3.3V | - | 1.7V @ 40mA | 100mA | 4.1 mA | - | 57.5dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
MIC5366-2.0YC5-TRIC REG LINEAR 2V 150MA SC70-5 |
468 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2V | - | 0.38V @ 150mA | 150mA | 39 µA | - | 80dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
LDI1117-3.3UVR SOT-89 20V 3.267V 3.333V |
456 |
|
Datasheet | - | TO-243AA | Bulk | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 1.25V @ 1A | 1.35A | 10 mA | - | - | Current Limit | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89 |
|
TLV75510PDBVRIC REG LINEAR 1V 500MA SOT23-5 |
427 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.825V @ 500mA | 500mA | 31 µA | - | 52dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
LDI1117-05HIC REG LINEAR 5V 1.35A SOT223 |
797 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 5V | - | 1.25V @ 1A | 1.35A | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
TCR2EF30,LM(CTIC REG LINEAR 3V 200MA SMV |
294 |
|
Datasheet | TCR2EF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
TLV75512PDRVRIC REG LINEAR 1.2V 500MA 6WSON |
696 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.665V @ 500mA | 500mA | 31 µA | - | 52dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A0318PDBVRIC REG LINEAR 1.8V 200MA SOT23-5 |
941 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.45V @ 200mA | 200mA | 300 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TPS7A0328PDBVRIC REG LINEAR 2.8V 200MA SOT23-5 |
716 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.36V @ 200mA | 200mA | 300 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
LP5907UVX-2.5/NOPBIC REG LINEAR 2.5V 250MA 4DSBGA |
469 |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.2V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 4-DSBGA |
|
|
DI78M05UABIC REG LINEAR 5V 500MA SOT89 |
637 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 5V | - | - | 500mA | 6 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89 |
|
SPX3819M5-L-5-0/TRIC REG LINEAR 5V 500MA SOT23-5 |
190 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.7V @ 500mA | 500mA | 8 µA | 30 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
AS78L15RTR-G1IC REG LINEAR 15V 100MA SOT89 |
394 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 15V | - | 1.8V @ 100mA (Typ) | 100mA | 6 mA | - | 39dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-89-3 |
|
MCP1700T-2002E/TTIC REG LINEAR 2V 200MA SOT23-3 |
876 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2V | - | 0.35V @ 200mA | 200mA | 4 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-3 |
|
LP590725QDQNRQ1IC REG LINEAR 2.5V 250MA 4X2SON |
440 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.25V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 4-X2SON (1x1) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
