Voltage Reference
Explore Voltage Reference parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_bentlead.jpg "TL1431CLPRE3")
|
TL1431CLPRE3IC VREF SHUNT ADJ 0.4% TO92-3 |
4,000 |
|
Datasheet | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | - | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
TL432IC VREF SHUNT ADJ 1% SOT23-3 |
2,885 |
|
Datasheet | - | - | Cut Tape (CT) | Active | Shunt | Adjustable | 1.24V | 18 V | 100 mA | ±1% | - | - | - | - | - | 80 µA | -40°C ~ 125°C (TA) | - | - | - | - |
|
LM4040CIM7-2.0/NOPBIC VREF SHUNT 0.5% SC70-5 |
2,000 |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Bulk | Obsolete | Shunt | Fixed | 2.048V | - | 15 mA | ±0.5% | 100ppm/°C | - | 35µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
TL431CDIC VREF SHUNT ADJ 2.21% 8SOP |
36,319 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.21% | 50ppm/°C Typical | - | - | - | - | 1 mA | -25°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP |
|
FAN4050CIS333XVOLTAGE REFERENCE |
30,409 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | 3.3V | - | 15 mA | ±0.5% | 50ppm/°C | - | 70µVrms | - | - | 70 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT23-3 (TO-236) |
|
TL431ACDIC VREF SHUNT ADJ 1% 8SOP |
1,464 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±1% | 50ppm/°C Typical | - | - | - | - | 1 mA | -25°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
TL431BCPWRIC VREF SHUNT ADJ 0.5% 8TSSOP |
4,000 |
|
Datasheet | 8-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±0.5% | - | - | - | - | - | 600 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-TSSOP |
|
|
TL431CDTL431 - ADJUSTABLE PRECISION SHU |
21,592 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.21% | 50ppm/°C Typical | - | - | - | - | 1 mA | -25°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP |
|
TLVH431ACPKG3IC VREF SHUNT PREC ADJ SOT-89-3 |
4,000 |
|
Datasheet | TO-243AA | - | Bulk | Active | Shunt | Adjustable | 1.24V | 18 V | 70 mA | ±1% | - | - | - | - | - | 100 µA | - | - | - | Surface Mount | SOT-89-3 |
|
LM4041DIM7X-ADJIC VREF SHUNT ADJ 1% SC70-5 |
3,000 |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Bulk | Active | Shunt | Adjustable | 1.233V | 10 V | 12 mA | ±1% | 150ppm/°C | - | 20µVrms | - | - | 70 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
LM4041DIM7X-1.2IC VREF SHUNT 1% SC70-5 |
2,945 |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Bulk | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±1% | 150ppm/°C | - | 20µVrms | - | - | 70 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
TL1431CPWRIC VREF SHUNT ADJ 0.4% 8TSSOP |
2,315 |
|
Datasheet | 8-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | - | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-TSSOP |
|
|
TLVH432AIPKG3IC VREF SHUNT PREC ADJ SOT-89-3 |
2,000 |
|
Datasheet | TO-243AA | - | Bulk | Active | Shunt | Adjustable | 1.24V | 18 V | 70 mA | ±1% | - | - | - | - | - | 100 µA | - | - | - | Surface Mount | SOT-89-3 |
,TO-226_straightlead.jpg "TL431CLP")
|
TL431CLPIC VREF SHUNT ADJ 2.2% TO92-3 |
4,312 |
|
Datasheet | TO-226-3, TO-92-3 Long Body | - | Bulk | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | 50ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|
|
TL431BCPSRIC VREF SHUNT ADJ 0.5% 8SO |
4,138 |
|
Datasheet | 8-SOIC (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±0.5% | - | - | - | - | - | 600 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|

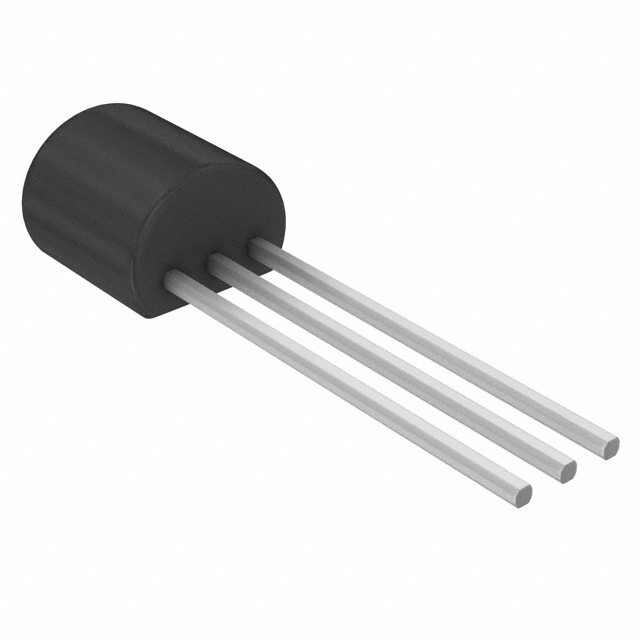

LM4040C10ILPE3IC VREF SHUNT 10V TO92-3 |
1,800 |
|
Datasheet | TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Active | Shunt | Fixed | 10V | - | 15 mA | ±0.5% | 100ppm/°C | - | 180µVrms | - | - | 125 µA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
LM4041EIM3X-1.2IC VREF SHUNT 2% SOT23-3 |
1,350 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±2% | 150ppm/°C | - | 20µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM336MX-5.0IC VREF SHUNT 2% 8SOIC |
4,165 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 5V | - | 10 mA | ±2% | - | - | - | - | - | 600 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LM4040DIM3X-10-NSTWO TERMINAL VOLTAGE REFERENCE, |
12,000 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | 10V | - | 15 mA | ±1% | 150ppm/°C | - | 180µVrms | - | - | 110 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
TL431BIDBZRG4IC VREF SHUNT ADJ 0.5% SOT23-3 |
11,348 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±0.5% | - | - | - | - | - | 700 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
Frequently Asked Questions
What are Voltage Reference components used for?
Voltage Reference components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Reference part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Reference parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
