Voltage Reference
Explore Voltage Reference parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT1460HCS3-5#TRPBFIC VREF SERIES 0.2% SOT23-3 |
2,452 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 40 mA | ±0.2% | 20ppm/°C | 4ppmp-p | 4ppmrms | 5.9V ~ 20V | 240µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
MAX6173BASA/V+IC VREF SERIES 0.1% 8SOIC |
150 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 2.5V | - | 30 mA | ±0.1% | 10ppm/°C | 3.8µVp-p | 6.8µVrms | 4.5V ~ 40V | 600µA | - | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MAX6033BAUT41+TIC VREF SERIES 0.2% SOT23-6 |
2,500 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 15 mA | ±0.2% | 15ppm/°C | 32µVp-p | 22µVrms | 4.3V ~ 12.6V | 85µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
LT6658AHDE-3#PBFIC VREF SERIES 6V 0.05% 16DFN |
3,385 |
|
Datasheet | 16-WFDFN Exposed Pad | - | Tube | Active | Series, Dual | Adjustable (Fixed) | 3V | 6 V | 150 mA | ±0.05% | 10ppm/°C | 1.6ppmp-p | 2ppmrms | 4.2V ~ 36V | 3mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
MAX6126B30+TIC VREF SERIES 0.1% 8UMAX |
2,900 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 10 mA | ±0.1% | 12ppm/°C | 1.75µVp-p | - | 3.2V ~ 12.6V | 725µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
LT6654BMPS6-1.25#TRMPBFIC VREF SERIES 0.1% TSOT23-6 |
500 |
|
Datasheet | SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 1.25V | - | 10 mA | ±0.1% | 20ppm/°C | 0.8ppmp-p | 2ppmrms | 2.4V ~ 36V | 600µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
|
MAX6133A50+IC VREF SERIES 0.06% 8UMAX |
268 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Active | Series | Fixed | 5V | - | 15 mA | ±0.06% | 7ppm/°C | 40µVp-p | 26µVrms | 5.2V ~ 12.6V | 85µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
MAX6143AASA25+TIC VREF SERIES 0.06% 8SOIC |
2,495 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 30 mA | ±0.06% | 3ppm/°C | 3.8µVp-p | 6.8µVrms | 4.5V ~ 40V | 600µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6133A25+TIC VREF SERIES 0.06% 8UMAX |
1,945 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 15 mA | ±0.06% | 7ppm/°C | 16µVp-p | 12µVrms | 2.7V ~ 12.6V | 85µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
MAX6126A41+TIC VREF SERIES 0.06% 8UMAX |
2,488 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 10 mA | ±0.06% | 5ppm/°C | 2.4µVp-p | - | 4.3V ~ 12.6V | 725µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
AD586KRZ-REELIC VREF SERIES 0.1% 8SOIC |
1,417 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 10 mA | ±0.1% | 15ppm/°C | 4µVp-p | - | 10.8V ~ 36V | 3mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX675ESA+TIC VREF SERIES 0.15% 8SOIC |
2,413 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 10 mA | ±0.15% | 15ppm/°C | 10µVp-p | - | 18V ~ 33V | 1.4mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX674ESA+TIC VREF SERIES 0.15% 8SOIC |
2,257 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 10V | - | 10 mA | ±0.15% | 15ppm/°C | 20µVp-p | - | 13V ~ 33V | 1.4mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6133AASA25+TIC VREF SERIES 0.04% 8SOIC |
907 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 15 mA | ±0.04% | 7ppm/°C | 16µVp-p | 12µVrms | 2.7V ~ 12.6V | 85µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LT580XH#PBFIC VREF PRECISION 2.5V TO52-3 |
1,945 |
|
Datasheet | TO-206AC, TO-52-3 Metal Can | - | Tray | Active | Series | Fixed | 2.505V | - | 15 mA | -0.6%, +0.2% | 150ppm/°C | - | - | 4.5V ~ 30V | 2.5mA | - | -55°C ~ 200°C (TA) | - | - | Through Hole | TO-52-3 |
|
5962-8688202XAIC VREF SERIES 10V .05% TO39-3 |
4,148 |
|
Datasheet | TO-205AD, TO-39-3 Metal Can | - | Tray | Active | Series, Shunt, Buried Zener | Fixed | 10V | - | 10 mA | ±0.05% | - | 6µVp-p | - | 10.8V ~ 40V | 5mA | 1.5 mA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-39-3 |
|
LTC6655LNBHLS8-4.096#PBFIC VREF SERIES 8LCC |
3,606 |
|
Datasheet | 8-CLCC | - | Tray | Active | Series | Fixed | 4.096V | - | 5 mA | ±0.025% | 2ppm/°C | 0.12ppmp-p | 0.21ppmrms | 13.2V | 7.5mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-CLCC (5x5) |
|
|
LTC6655LNBHLS8-5#PBFIC VREF SERIES 8TSSOP |
4,585 |
|
Datasheet | 8-CLCC | - | Tray | Active | Series | Fixed | 5V | - | 5 mA | ±0.025% | 2ppm/°C | 0.12ppmp-p | 0.21ppmrms | 13.2V | 7.5mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-CLCC (5x5) |
|

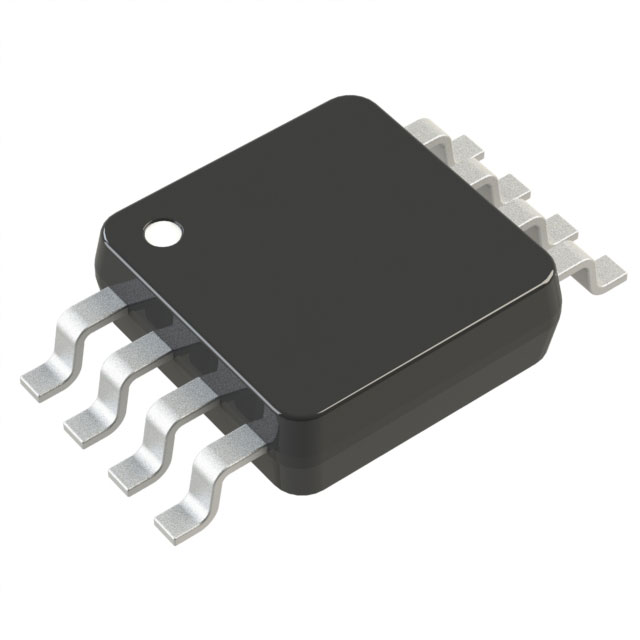

LTC6655LNCHLS8-5#PBFIC VREF SERIES 8TSSOP |
3,109 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tray | Active | Series | Fixed | 5V | - | 5 mA | ±0.05% | 5ppm/°C | 0.12ppmp-p | 0.21ppmrms | 13.2V | 7.5mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
LTC6655LNBHLS8-2.5#PBFIC VREF SERIES 8TSSOP |
4,791 |
|
Datasheet | 8-CLCC | - | Tray | Active | Series | Fixed | 2.5V | - | 5 mA | ±0.025% | 2ppm/°C | 0.12ppmp-p | 0.21ppmrms | 13.2V | 7.5mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-CLCC (5x5) |
Frequently Asked Questions
What are Voltage Reference components used for?
Voltage Reference components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Reference part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Reference parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
