Voltage Reference
Explore Voltage Reference parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCV431AIDMR2GIC VREF SHUNT ADJ 1% 8TSSOP |
3,950 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Shunt | Programmable | 2.495V | 36 V | 100 mA | ±1% | 50ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
LM4040BIM3X-10/NOPBIC VREF SHUNT 0.2% SOT23-3 |
2,720 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 10V | - | 15 mA | ±0.2% | 100ppm/°C | - | 180µVrms | - | - | 103 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040BIM3X-2.0/NOPBIC VREF SHUNT 0.2% SOT23-3 |
1,574 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.048V | - | 15 mA | ±0.2% | 100ppm/°C | - | 35µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
ZXRE160ET5TAIC VREF SHUNT ADJ 1% TSOT25 |
2,145 |
|
Datasheet | SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 0.6V | 18 V | 15 mA | ±1% | - | - | - | - | 3mA | 300 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-25 |
|
LM4041BIDCKRIC VREF SHUNT ADJ 0.2% SC70-5 |
2,954 |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.233V | 10 V | 12 mA | ±0.2% | 100ppm/°C | - | 20µVrms | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
LM4041B12IDBZRIC VREF SHUNT 0.2% SOT23-3 |
3,000 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±0.2% | 100ppm/°C | - | 20µVrms | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TL4050B10IDBZRIC VREF SHUNT 0.2% SOT23-3 |
2,977 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 10V | - | 15 mA | ±0.2% | 50ppm/°C | - | 150µVrms | - | - | 103 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM4040B30FTAIC VREF SHUNT 0.2% SOT23 |
2,700 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3V | - | 15 mA | ±0.2% | 100ppm/°C | - | 35µVrms | - | - | 70 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|

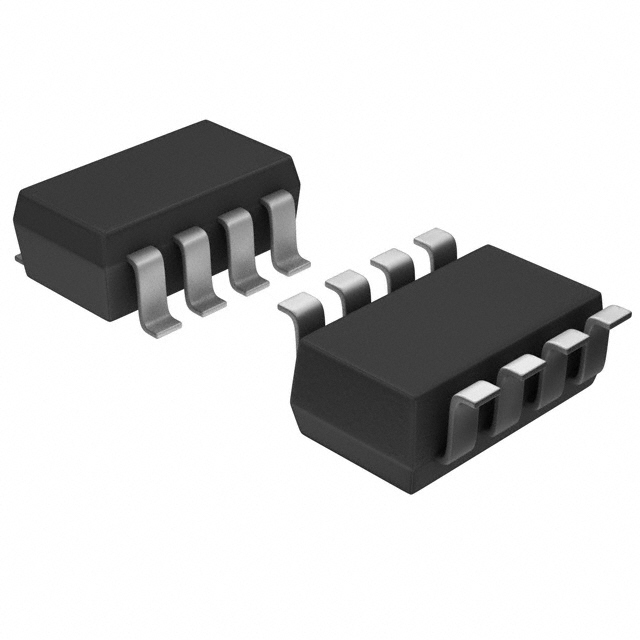

RT9406GV8IC VREF SERIES 1% SOT23-8 |
3,000 |
|
Datasheet | SOT-23-8 | - | Tape & Reel (TR) | Active | Series | - | - | - | - | ±1% | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
LM4040C41FTAIC VREF SHUNT 0.5% SOT23 |
3,000 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 4.1V | - | 15 mA | ±0.5% | 100ppm/°C | - | 64µVrms | - | - | 88 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040B41FTAIC VREF SHUNT 0.2% SOT23 |
2,995 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 4.1V | - | 15 mA | ±0.2% | 100ppm/°C | - | 64µVrms | - | - | 88 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4041QBIM3-1.2/NOIC VREF SHUNT 0.2% SOT23-3 |
3,977 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±0.2% | 100ppm/°C | - | 20µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
TL4050C20QDBZRQ1IC VREF SHUNT 0.5% SOT23-3 |
2,854 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.048V | - | 15 mA | ±0.5% | 50ppm/°C | - | 34µVrms | - | - | 65 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
TS3325AQPRIC VREF SERIES 0.15% 8QFN |
1,321 |
|
Datasheet | 8-UFQFN | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | - | ±0.15% | 30ppm/°C | - | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-QFN (1.5x1.5) |
|
|
LM4040B30QFTAIC VREF SHUNT 0.2% SOT23 |
2,810 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3V | - | 15 mA | ±0.2% | 100ppm/°C | - | 35µVrms | - | - | 70 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
LM4040C33QFTAIC VREF SHUNT 0.5% SOT23 |
1,504 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3.3V | - | 15 mA | ±0.5% | 100ppm/°C | - | 35µVrms | - | - | 70 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
LM4040D41QFTAIC VREF SHUNT 1% SOT23 |
5,000 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 4.1V | - | 15 mA | ±1% | 150ppm/°C | - | 64µVrms | - | - | 88 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
ZRC330QF01TAIC VREF SHUNT 1% SOT23 |
2,355 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3.3V | - | 5 mA | ±1% | 50ppm/°C | - | 75µVrms | - | - | 20 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
LM4040B25QFTAIC VREF SHUNT 0.2% SOT23-3 |
2,344 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±0.2% | 100ppm/°C | - | 35µVrms | - | - | 68 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
ZRC250F03TAIC VREF SHUNT 3% SOT23 |
5,713 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | 5 mA | ±3% | 90ppm/°C | - | 60µVrms | - | - | 20 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
Frequently Asked Questions
What are Voltage Reference components used for?
Voltage Reference components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Reference part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Reference parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
