Power Distribution Switches, Load Drivers
Review Power Distribution Switches, Load Drivers Power Management (PMIC) components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS2011DG4IC PWR SWITCH N-CHAN 1:1 8SOIC |
1,583 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 600mA | 75mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2012DG4IC PWR SWITCH N-CHAN 1:1 8SOIC |
2,216 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 75mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2052DRG4IC PWR SWITCH N-CHAN 1:2 8SOIC |
4,958 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
TPS2043ADG4IC PWR SWTCH N-CH 1:2/1:1 16SOIC |
1,406 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | - | Tube | Discontinued at Digi-Key | General Purpose | 3 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 80mOhm | Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | 0°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
TPS2042DRG4IC PWR SWITCH N-CHAN 1:2 8SOIC |
3,706 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 80mOhm | Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2051DG4IC PWR SWITCH N-CHAN 1:1 8SOIC |
2,236 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2055DG4IC PWR SWITCH N-CHAN 1:1 8SOIC |
2,088 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 250mA | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LM3543M-H/NOPBIC PWR SWITCH N-CHAN 1:3 16SOIC |
2,808 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | USB Switch | 3 | 1:3 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SOIC |
|

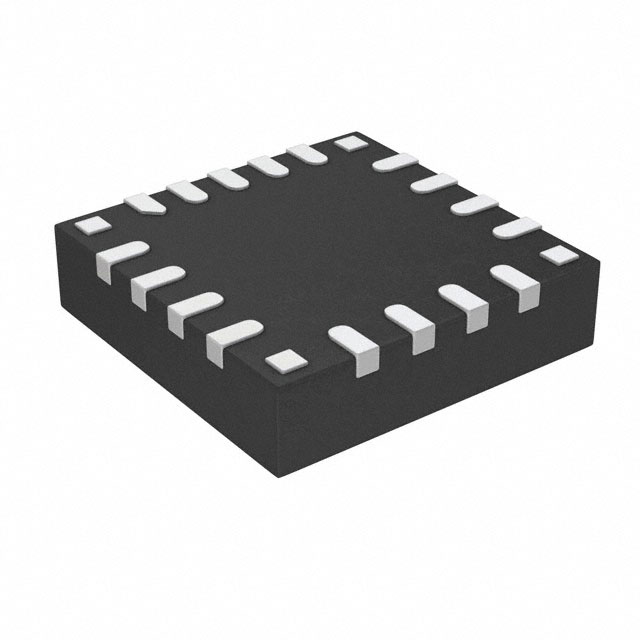

TPS22993PRLWTIC PWR SWITCH N-CHAN 1:1 20WQFN |
3,365 |
|
Datasheet | 20-WFQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | I2C | 1V ~ 3.6V | - | 1.2A | 15mOhm | - | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-WQFN (3x3) |
|
|
TPS2053DRIC PWR SWTCH N-CH 1:2/1:1 16SOIC |
3,834 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 3 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
Frequently Asked Questions
What are Power Distribution Switches, Load Drivers components used for?
Power Distribution Switches, Load Drivers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Distribution Switches, Load Drivers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Distribution Switches, Load Drivers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
