Power Distribution Switches, Load Drivers
Explore Power Distribution Switches, Load Drivers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

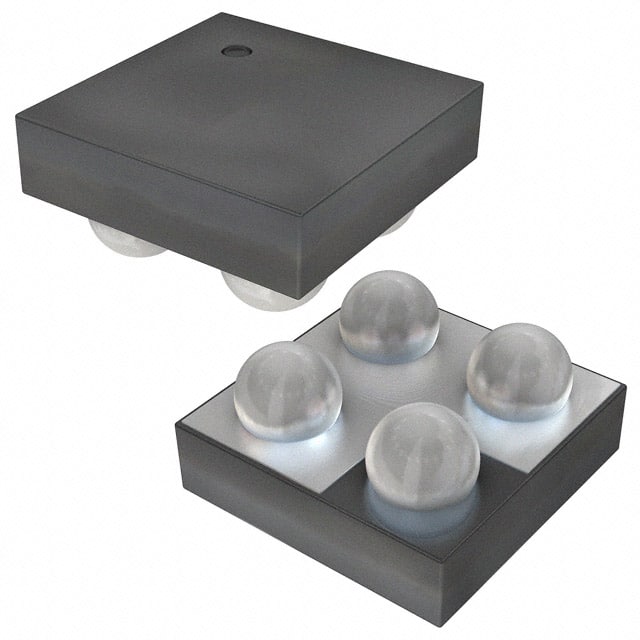

SIP32467DB-T2-GE1IC PWR SWITCH N-CHAN 1:1 4WLCSP |
4,448 |
|
Datasheet | 4-UFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.2V ~ 5.5V | Not Required | 1.2A | 50mOhm | Non-Inverting | Slew Rate Controlled | Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
MIC2039BYMT-TRIC PWR SWITCH P-CHAN 1:1 6TDFN |
3,240 |
|
Datasheet | 6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 2.5A | 75mOhm | Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
MIC2025-1BMM-TRIC PWR SWITCH N-CHAN 1:1 8MSOP |
1,853 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | MM8™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
MIC2025-1FBMM-TRIC PWR SWITCH N-CHAN 1:1 8MSOP |
2,547 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | MM8™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
MIC2025-2BMM-TRIC PWR SWITCH N-CHAN 1:1 8MSOP |
2,176 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | MM8™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
MIC2025-2FBMM-TRIC PWR SWITCH N-CHAN 1:1 8MSOP |
2,238 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | MM8™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
MIC2075-1BM-TRIC PWR SWITCH N-CHAN 1:1 8SOIC |
3,664 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | MM8™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MIC2075-1FBM-TRIC PWR SWITCH N-CHAN 1:1 8SOIC |
2,604 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | MM8™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MIC2075-2BM-TRIC PWR SWITCH N-CHAN 1:1 8SOIC |
1,032 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | MM8™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MIC2075-2FBM-TRIC PWR SWITCH N-CHAN 1:1 8SOIC |
4,348 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | MM8™ | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
NCV8406DTRKGIC PWR DRIVER N-CHANNEL 1:1 DPAK |
1,645 |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 5A | 185mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
MP62340DH-1-LF-ZIC PWR SWITCH 1:2 8MSOP |
2,179 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 2 | 1:2 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 85mOhm | - | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP-EP |
|
|
MP62341DH-1-LF-ZIC PWR SWITCH 1:2 8SOIC |
4,963 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 2 | 1:2 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 85mOhm | - | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP-EP |
|
MIC2005-0.5YM6TXIC PWR SWITCH P-CHAN 1:1 SOT23-6 |
1,278 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 500mA | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
MIC2005-0.8YM6TXIC PWR SWITCH P-CHAN 1:1 SOT23-6 |
2,502 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 800mA | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
MIC2005-1.2YM6TXIC PWR SWITCH P-CHAN 1:1 SOT23-6 |
3,675 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.2A | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
SI1040X-T1-E3IC PWR SWITCH P-CHAN 1:1 SC89-6 |
1,868 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 8V | - | 430mA | 500mOhm | - | Slew Rate Controlled | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-89 (SOT-563F) |
|
TPS22924DYZPRIC PWR SWITCH N-CHAN 1:1 6DSBGA |
1,318 |
|
Datasheet | 6-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.75V ~ 3.6V | Not Required | 2A | 18.3mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA (1.39x.89) |
|
|
TPS22924CYZPRBIC PWR SWITCH N-CHAN 1:1 6DSBGA |
3,984 |
|
Datasheet | 6-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.75V ~ 3.6V | Not Required | 2A | 18.3mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA (1.39x.89) |
|
|
TPS22924BYZPRBIC PWR SWITCH N-CHAN 1:1 6DSBGA |
2,967 |
|
Datasheet | 6-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.75V ~ 3.6V | Not Required | 2A | 18.3mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA (1.39x.89) |
Frequently Asked Questions
What are Power Distribution Switches, Load Drivers components used for?
Power Distribution Switches, Load Drivers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Distribution Switches, Load Drivers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Distribution Switches, Load Drivers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
