Full Half-Bridge (H Bridge) Drivers
Review Full Half-Bridge (H Bridge) Drivers Power Management (PMIC) components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP1013CENIC HALF BRIDGE DRIVER 1.3A 16QFN |
13,163 |
|
Datasheet | - | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | - | 1.3A | 5A | 2.7V ~ 5.5V | 2V ~ 18V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-QFN (3x3) |
|
|
AP1013DENIC HALF BRIDGE DRIVER 1.3A 16QFN |
9,779 |
|
Datasheet | - | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | - | 1.3A | 5A | 2.7V ~ 5.5V | 2V ~ 18V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-QFN (3x3) |
|
|
AP1016AENIC HALF BRIDGE DRIVER 1A 16QFN |
1,914 |
|
Datasheet | - | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (4) | General Purpose, Stepper Motors | Logic | Inductive | Power MOSFET | 270mOhm LS, 270mOhm HS | 1A | 1.4A | 2.7V ~ 5.5V | 2V ~ 9V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-QFN (3x3) |
|
AP1023AENIC HALF BRIDGE DRVR 1.45A 24QFN |
958 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (4) | General Purpose, Stepper Motors | Logic | Inductive | Power MOSFET | - | 1.45A | - | 2.7V ~ 5.5V | 1.6V ~ 6.5V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 24-QFN (4x4) |
|

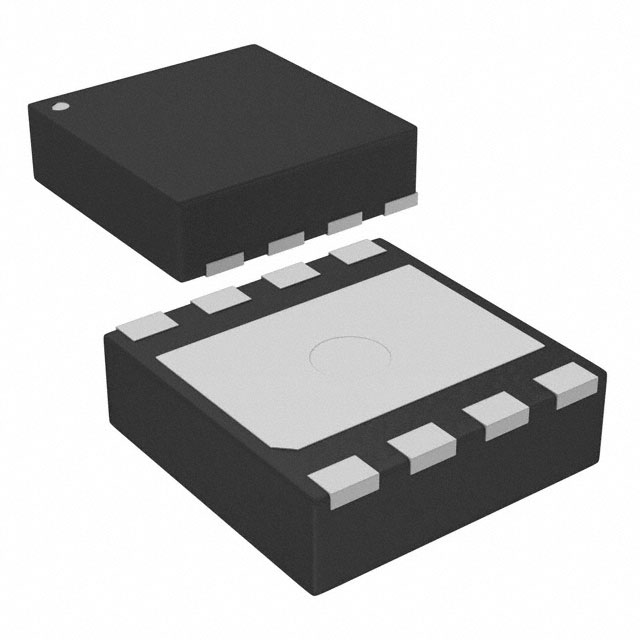

AP1017AENIC HALF BRIDGE DRIVER 1.56A 8SON |
2,321 |
|
Datasheet | - | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | 470mOhm LS + HS | 1.56A | 3.3A | 2.7V ~ 3.6V | 1.8V ~ 12V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 8-SON (2x2) |
|
|
AP1012AIC HALF BRIDGE DRIVER 1.3A 24QFN |
2,986 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (4) | General Purpose | Logic | Inductive | Power MOSFET | 180mOhm LS, 180mOhm HS | 1.3A | 3A | 2.7V ~ 5.5V | 2V ~ 18V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 24-QFN (4x4) |
|
AP1014AECIC HALF BRIDGE DRVR 1.1A 16WLCSP |
4,785 |
|
Datasheet | - | 16-UFBGA, WLCSP | Tape & Reel (TR) | Not For New Designs | Half Bridge (4) | General Purpose | Logic | Inductive | Power MOSFET | 350mOhm LS + HS | 1.1A | 2A | 2.7V ~ 5.5V | 2V ~ 7V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-WLCSP (1.96x1.96) |
|
AP1025BENIC HALF BRIDGE DRIVER 1.6A 32QFN |
4,521 |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (4) | General Purpose, Stepper Motors | Logic | Inductive | Power MOSFET | 850mOhm LS + HS | 1.6A | - | 3V ~ 5.5V | 9V ~ 45V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 32-QFN (5x5) |
Frequently Asked Questions
What are Full Half-Bridge (H Bridge) Drivers components used for?
Full Half-Bridge (H Bridge) Drivers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Full Half-Bridge (H Bridge) Drivers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Full Half-Bridge (H Bridge) Drivers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
