Full Half-Bridge (H Bridge) Drivers
Review Full Half-Bridge (H Bridge) Drivers Power Management (PMIC) components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA6584M-MPB-EIC HALF BRIDGE DRVR 1.6A MFP16FS |
1,294 |
|
Datasheet | - | 16-LSOP (0.213", 5.40mm Width) + 4 Heat Tabs | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1.6A | - | 2.8V ~ 14V | 2.8V ~ 14V | -30°C ~ 90°C (TA) | - | - | - | - | Surface Mount | 16-MFPFS |
|
FDMF5822DCIC HALF BRIDGE DRIVER 55A 31PQFN |
4,181 |
|
Datasheet | PowerTrench®, SyncFET™ | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 470mOhm LS, 680mOhm HS | 55A | - | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Latch Function, Status Flag | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
|
FDMF5821DCIC HALF BRIDGE DRIVER 60A 31PQFN |
2,884 |
|
Datasheet | PowerTrench®, SyncFET™ | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 470mOhm LS, 680mOhm HS | 60A | - | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Latch Function, Status Flag | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
STK531U369C-EIC IPM INVERTER SIP29 |
4,128 |
|
Datasheet | * | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

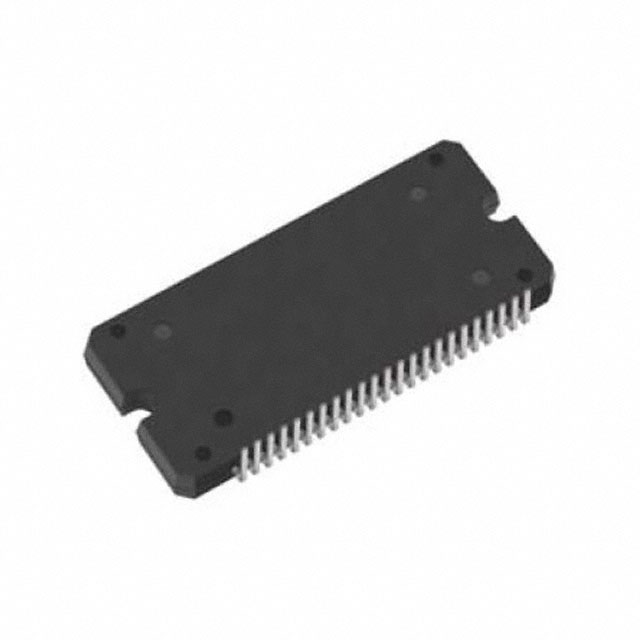

STK984-090A-EMOD PFC INVERTER 3PHASE AUTO |
3,671 |
|
Datasheet | * | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STK984-091A-EMOD INVERTER 3PHASE AUTO |
1,630 |
|
Datasheet | * | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
STK551U392A-EIC HALF BRIDGE DRIVER 15A 29SIP |
4,706 |
|
Datasheet | - | 29-SSIP Module, 21 Leads, Formed Leads | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 15A | 30A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Latch Function, Status Flag | Current Limiting, Shoot-Through, UVLO | Through Hole | 29-SIP |
|
|
STK650-313-E3PHASE INVERTER HIC |
3,566 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STK650-517-E3PHASE INVERTER HIC |
3,011 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
STK544UC62K-EIC HALF BRIDGE DRIVER 10A 23SIP |
2,646 |
|
Datasheet | - | 23-SIP, 19 Leads, Formed Leads | Tube | Not For New Designs | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Through Hole | 23-SIP-1 |
Frequently Asked Questions
What are Full Half-Bridge (H Bridge) Drivers components used for?
Full Half-Bridge (H Bridge) Drivers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Full Half-Bridge (H Bridge) Drivers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Full Half-Bridge (H Bridge) Drivers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
