AC DC Converters, Offline Switches
Explore AC DC Converters, Offline Switches parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP1015AP100GIC OFFLINE SWITCH FLYBACK 7DIP |
4,729 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | 8.5V ~ 10V | 67% | 100kHz | 19 W | Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 7-PDIP | Through Hole |
|
NCP1271P65GIC OFFLINE SWITCH FLYBACK 7DIP |
1,273 |
|
Datasheet | Soft-Skip™ | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Isolated | No | - | Flyback | 12.6 V | 10V ~ 20V | 80% | 65kHz | - | Current Limiting, Over Load, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | 7-PDIP | Through Hole |
|
NCP1351BPGIC OFFLINE SWITCH FLYBACK 8DIP |
3,177 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Isolated | No | - | Flyback | 18 V | 8.9V ~ 28V | - | - | - | Current Limiting, Over Load, Over Power, Short Circuit | - | -25°C ~ 125°C (TJ) | - | - | 8-PDIP | Through Hole |
|
TOP252GNIC OFFLINE SWITCH FLYBACK 8SMD |
3,070 |
|
Datasheet | TOPSwitch®-HX | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 15 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
|
TOP253GNIC OFFLINE SWITCH FLYBACK 8SMD |
4,817 |
|
Datasheet | TOPSwitch®-HX | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 25 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
TOP252MNIC OFFLINE SW FLYBACK 10CSDIP |
1,876 |
|
Datasheet | TOPSwitch®-HX | 10-SDIP (0.300", 7.62mm), 9 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 15 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SDIP-10C | Through Hole |
|
|
TOP253MNIC OFFLINE SW FLYBACK 10CSDIP |
1,928 |
|
Datasheet | TOPSwitch®-HX | 10-SDIP (0.300", 7.62mm), 9 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 25 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SDIP-10C | Through Hole |
|
FSFR1700IC OFFLINE SW HALF-BRIDGE 9SIP |
3,013 |
|
Datasheet | FSFR | 10-SIP Module, 9 Leads, Formed Leads | Tube | Obsolete | Isolated | Yes | 500V | Half-Bridge | 14.5 V | 11.3V ~ 25V | 50% | Up to 300kHz | 200 W | Current Limiting, Over Load, Over Temperature, Over Voltage | EN, Frequency Control | -40°C ~ 130°C (TJ) | - | - | 9-SIP | Through Hole |
|
FSFR1800IC OFFLINE SW HALF-BRIDGE 9SIP |
4,281 |
|
Datasheet | FSFR | 10-SIP Module, 9 Leads, Formed Leads | Tube | Obsolete | Isolated | Yes | 500V | Half-Bridge | 14.5 V | 11.3V ~ 25V | 50% | Up to 300kHz | 260 W | Current Limiting, Over Load, Over Temperature, Over Voltage | EN, Frequency Control | -40°C ~ 130°C (TJ) | - | - | 9-SIP | Through Hole |
|
|
FSFR2000IC OFFLINE SW HALF-BRIDGE 9SIP |
3,366 |
|
Datasheet | FSFR | 10-SIP Module, 9 Leads, Formed Leads | Tube | Obsolete | Isolated | Yes | 500V | Half-Bridge | 14.5 V | 11.3V ~ 25V | 50% | Up to 300kHz | 350 W | Current Limiting, Over Load, Over Temperature, Over Voltage | EN, Frequency Control | -40°C ~ 130°C (TJ) | - | - | 9-SIP | Through Hole |
|
LNK603DGIC OFFLINE SWITCH FLYBACK 8SO |
2,987 |
|
Datasheet | LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 3.3 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK613DGIC OFFLINE SWITCH FLYBACK 8SO |
3,839 |
|
Datasheet | LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 3.3 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK604DGIC OFFLINE SWITCH FLYBACK 8SO |
1,234 |
|
Datasheet | LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 4.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK614DGIC OFFLINE SWITCH FLYBACK 8SO |
1,656 |
|
Datasheet | LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 4.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK605DGIC OFFLINE SWITCH FLYBACK 8SO |
3,575 |
|
Datasheet | LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 5.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK615DGIC OFFLINE SWITCH FLYBACK 8SO |
3,908 |
|
Datasheet | LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 5.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK606GGIC OFFLINE SWITCH FLYBACK 8SMD |
3,817 |
|
Datasheet | LinkSwitch®-II | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 6.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
|
LNK616GGIC OFFLINE SWITCH FLYBACK 8SMD |
2,359 |
|
Datasheet | LinkSwitch®-II | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 6.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
FSQ0765RSWDTUIC OFFLINE SW FLBACK TO220F-6L |
3,345 |
|
Datasheet | FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | - | 48kHz ~ 67kHz | 90 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Sync | -25°C ~ 85°C (TA) | - | - | TO-220F-6L (U-Forming) | Through Hole |
|

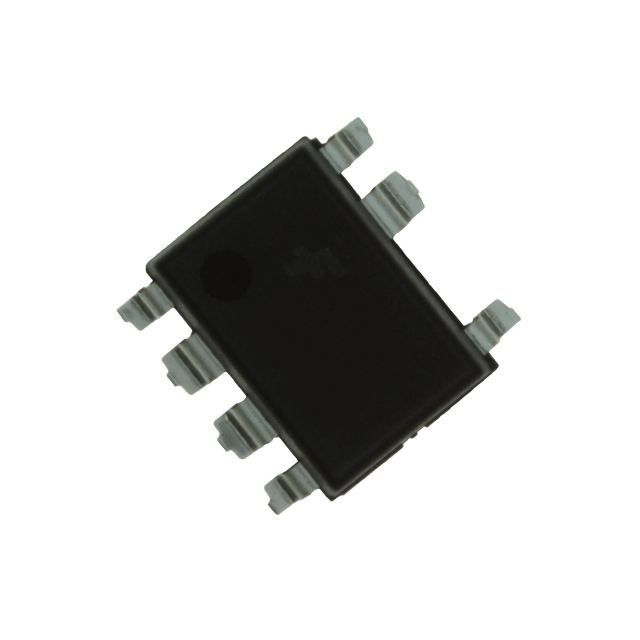

FSQ510MXIC OFFLINE SWITCH FLYBACK 7LSOP |
4,649 |
|
Datasheet | FPS™ | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Obsolete | Isolated | Yes | 700V | Flyback | 8.7 V | 6.7V ~ 20V | 60% | 94.3kHz ~ 132kHz | 9 W | Current Limiting, Over Load, Over Temperature | Sync | -40°C ~ 140°C (TJ) | - | - | 7-LSOP | Surface Mount |
Frequently Asked Questions
What are AC DC Converters, Offline Switches components used for?
AC DC Converters, Offline Switches components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right AC DC Converters, Offline Switches part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find AC DC Converters, Offline Switches parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
