Oscillators
Review Oscillators Crystals, Oscillators, Resonators components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HD-950_Series.jpg "CCHD-950-50-49.152")
|
CCHD-950-50-49.152XTAL OSC XO 49.1520MHZ HCMOS SMD |
3,718 |
|
Datasheet | CCHD-950 | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 49.152 MHz | - | HCMOS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
|
CCHD-950-50-80.000XTAL OSC XO 80.0000MHZ HCMOS SMD |
6,407 |
|
Datasheet | CCHD-950 | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 80 MHz | - | HCMOS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
CVHD-952-148.500XTAL OSC VCXO 148.5000MHZ HCMOS |
3,122 |
|
Datasheet | CVHD-952 | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 148.5 MHz | Enable/Disable | HCMOS | 3.3V | - | ±20ppm | 0°C ~ 70°C | - | 35mA | - | Surface Mount | - | 0.560" L x 0.360" W (14.20mm x 9.14mm) | 0.210" (5.33mm) |
|
|
CVHD-952-153.600XTAL OSC VCXO 153.6000MHZ HCMOS |
4,561 |
|
Datasheet | CVHD-952 | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 153.6 MHz | Enable/Disable | HCMOS | 3.3V | - | ±20ppm | 0°C ~ 70°C | - | 35mA | - | Surface Mount | - | 0.560" L x 0.360" W (14.20mm x 9.14mm) | 0.210" (5.33mm) |
|
CCO-083-100.000XTAL OSC XO 100.0000MHZ SNWV TH |
3,443 |
|
Datasheet | CCO | 14-DIP, 4 Leads (Full Size, Metal Can) | Box | Active | Crystal | XO (Standard) | 100 MHz | - | Sine Wave | 3.3V | ±25ppm | - | 0°C ~ 70°C | - | 15mA | - | Through Hole | 14-DIP | 0.820" L x 0.520" W (20.83mm x 13.21mm) | 0.300" (7.62mm) |
|
CPRO33-20.000XTAL OSC XO 20.0000MHZ HCMOS |
6,540 |
|
Datasheet | CPRO | Module Adapter, SMA M to F | Bulk | Active | Crystal | XO (Standard) | 20 MHz | - | HCMOS | 3.3V | ±25ppm | - | 0°C ~ 70°C | - | 18mA | - | Free Hanging | - | 0.435" Dia x 1.312" L (11.05mm x 33.34mm) | - |
|
PPRO30-26.000XTAL OSC TCXO 26.0000MHZ SNWV |
8,129 |
|
Datasheet | PPRO | Module Adapter, SMA M to F | Bulk | Active | Crystal | TCXO | 26 MHz | - | Clipped Sine Wave | 3V | ±2.5ppm | - | -20°C ~ 75°C | - | 2mA | - | Free Hanging | - | 0.435" Dia x 1.312" L (11.05mm x 33.34mm) | - |
|

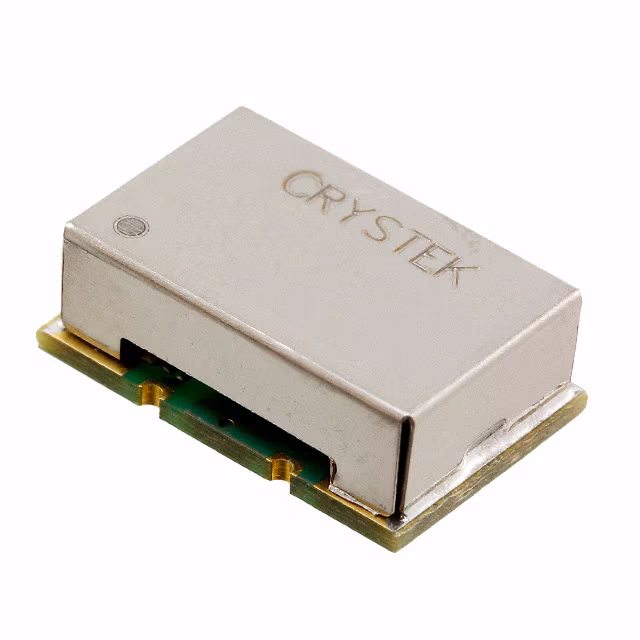

CCSO-914X-245.760XTAL OSC SO 245.7600MHZ SNWV SMD |
5,168 |
|
Datasheet | CCSO | 4-SMD, No Lead | Strip | Active | Crystal | SO (SAW) | 245.76 MHz | - | Sine Wave | 5V | ±150ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | - | 0.560" L x 0.360" W (14.20mm x 9.14mm) | 0.210" (5.33mm) |
|
C3290-1.544XTAL OSC XO 1.5440MHZ HCMOS TTL |
4,727 |
|
Datasheet | C3290 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 1.544 MHz | Enable/Disable | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 60mA | - | Surface Mount | - | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.071" (1.80mm) |
|
|
C3290-1.843200XTAL OSC XO 1.8432MHZ HCMOS TTL |
8,992 |
|
Datasheet | C3290 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 1.8432 MHz | Enable/Disable | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 60mA | - | Surface Mount | - | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.071" (1.80mm) |
Frequently Asked Questions
What are Oscillators components used for?
Oscillators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Oscillators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Oscillators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
