Oscillators
Explore Oscillators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VC-TXO-35SM-194.4-B-TRXTAL OSC VCTCXO |
3,823 |
|
Datasheet | VC-TXO-35SM | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | VCTCXO | 19.44 MHz | - | Clipped Sine Wave | 3V | ±2.5ppm | - | -30°C ~ 75°C | - | 1.5mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
|
VC-TXO-35SM-130-D-TRXTAL OSC VCTCXO |
6,987 |
|
Datasheet | VC-TXO-35SM | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | VCTCXO | 13 MHz | - | Clipped Sine Wave | 3V | ±2.5ppm | - | -30°C ~ 80°C | - | 1.5mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
|
VC-TXO-35SM-260-B-TRXTAL OSC VCTCXO |
5,466 |
|
Datasheet | VC-TXO-35SM | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | VCTCXO | 26 MHz | - | Clipped Sine Wave | 3V | ±2.5ppm | - | -30°C ~ 75°C | - | 1.5mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ECS-VTXO-5032-200-TRXTAL OSC VCTCXO |
4,370 |
|
Datasheet | VTXO-5032 | 4-SMD, No Lead | Bulk | Active | Crystal | VCTCXO | 20 MHz | - | HCMOS | 3.3V | ±2.5ppm | ±5ppm | -30°C ~ 85°C | - | 6mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ECS-VTXO-5032-120-TRXTAL OSC VCTCXO |
3,453 |
|
Datasheet | VTXO-5032 | 4-SMD, No Lead | Bulk | Active | Crystal | VCTCXO | 12 MHz | - | HCMOS | 3.3V | ±2.5ppm | ±5ppm | -30°C ~ 85°C | - | 6mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
|
MK3710001XTAL OSC SSXO 37.1MHZ CMOS |
2,155 |
|
Datasheet | SaRonix-eCera™ MK | 4-SMD, No Lead | Bulk | Obsolete | Crystal | SSXO | 37.125 MHz | Enable/Disable | CMOS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.045" (1.15mm) |
|
|
MK2470001QXTAL OSC SSXO 24.7MHZ CMOS |
6,416 |
|
Datasheet | SaRonix-eCera™ MK | 4-SMD, No Lead | Bulk | Obsolete | Crystal | SSXO | 24.7 MHz | Enable/Disable | CMOS | 2.5V | - | - | - | - | 10mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.045" (1.15mm) |
|
|
MN1600002QXTAL OSC SSXO 16MHZ CMOS |
7,614 |
|
Datasheet | SaRonix-eCera™ MN | 4-SMD, No Lead | Bulk | Obsolete | Crystal | SSXO | 16 MHz | Enable/Disable | LVCMOS | 3.3V | ±25ppm | - | -40°C ~ 105°C | - | 20mA | AEC-Q200 | Surface Mount | 4-SMD (7x5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
MK2400001QXTAL OSC SSXO 24MHZ CMOS |
8,822 |
|
Datasheet | SaRonix-eCera™ MK | 4-SMD, No Lead | Bulk | Obsolete | Crystal | SSXO | 24 MHz | Enable/Disable | CMOS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 10mA | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.045" (1.15mm) |
|
|
MK2500005XTAL OSC SSXO 25MHZ CMOS |
3,270 |
|
Datasheet | SaRonix-eCera™ MK | 4-SMD, No Lead | Bulk | Obsolete | Crystal | SSXO | 25 MHz | Enable/Disable | CMOS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.045" (1.15mm) |
|
|
MK2700003QXTAL OSC SSXO 27MHZ CMOS |
3,885 |
|
Datasheet | SaRonix-eCera™ MK | 4-SMD, No Lead | Bulk | Obsolete | Crystal | SSXO | 27 MHz | Enable/Disable | CMOS | 3.3V | ±70ppm | - | -40°C ~ 105°C | - | 10mA | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.045" (1.15mm) |
|
KD3270030QXTAL OSC 32.768KHZ LVCMOS,LVTTL |
7,615 |
|
Datasheet | SaRonix-eCera™ KD | 4-SMD, No Lead | Bulk | Active | Crystal | XO (Standard) | 32.768 kHz | Enable/Disable | LVCMOS, LVTTL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 15mA | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.053" (1.35mm) |
|
|
KC3215A32768C18AAE00XTAL OSC XO 32.7680KHZ CMOS SMD |
8,422 |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MML-035F-20.000MHZSMD OSCILLATOR |
9,265 |
|
Datasheet | - | 4-SMD, J-Lead | Bulk | Obsolete | Crystal | XO (Standard) | 20 MHz | - | HCMOS | 5V | ±100ppm | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | - | 0.551" L x 0.386" W (14.00mm x 9.80mm) | 0.185" (4.70mm) |
|

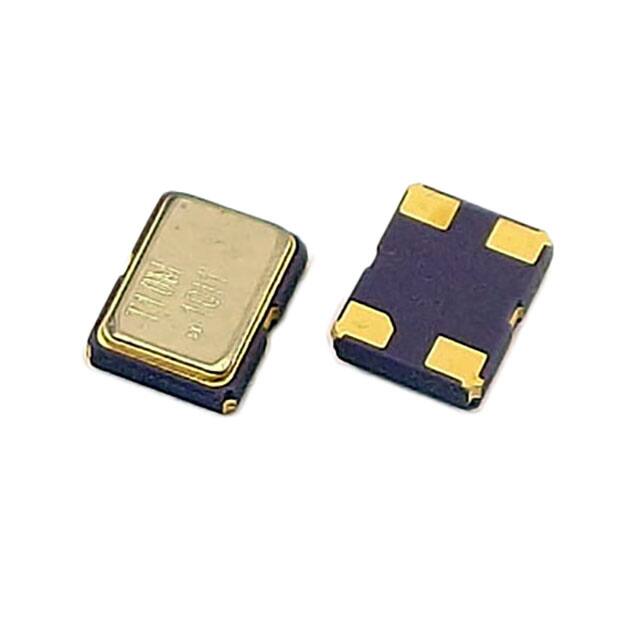

TX3-L-25MP-26.000M-TRXTAL OSC TCXO 26.0000MHZ SNWV |
3,059 |
|
Datasheet | TX-L | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 26 MHz | - | Clipped Sine Wave | 3.3V | ±2.5ppm | - | -40°C ~ 85°C | - | 2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
544CCAC000157BCGROSCILLATOR SMD |
9,501 |
|
Datasheet | Ultra™ Si544 | 8-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | CMOS | 1.8V ~ 3.3V | ±7ppm | - | -40°C ~ 85°C | - | 108mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.052" (1.33mm) |
|
|
569AAAA000118BCGOSCILLATOR SMD |
4,328 |
|
Datasheet | Ultra™ Si569 | 8-SMD, No Lead | Strip | Active | Crystal | VCXO | 156.25 MHz | Enable/Disable | LVPECL | 2.5V ~ 3.3V | ±20ppm | ±20ppm | -40°C ~ 85°C | - | 170mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.052" (1.33mm) |
|
545BCA300M000BCGROSCILLATOR SMD |
7,139 |
|
Datasheet | Ultra™ Si545 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 300 MHz | Enable/Disable | LVDS | 1.8V ~ 3.3V | ±7ppm | - | -40°C ~ 85°C | - | 121mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.052" (1.33mm) |
|
|
545BAA52M0000BCGOSCILLATOR SMD |
4,710 |
|
Datasheet | Ultra™ Si545 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 52 MHz | Enable/Disable | LVDS | 1.8V ~ 3.3V | ±20ppm | - | -40°C ~ 85°C | - | 121mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.052" (1.33mm) |
|
|
544BCAA000112BCGROSCILLATOR SMD |
8,136 |
|
Datasheet | Ultra™ Si544 | 8-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 10 MHz | Enable/Disable | LVDS | 1.8V ~ 3.3V | ±7ppm | - | -40°C ~ 85°C | - | 111mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.052" (1.33mm) |
Frequently Asked Questions
What are Oscillators components used for?
Oscillators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Oscillators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Oscillators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
