Oscillators
Review Oscillators Crystals, Oscillators, Resonators components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OS560-2005-015LOW PHASE NOISE -168DBC/HZ OCXO |
2,233 |
|
Datasheet | OS560 | - | Bulk | Active | Crystal | OCXO | 20 MHz | - | Sine Wave | 3.3V | ±5ppb | - | 0°C ~ 50°C | - | - | - | Surface Mount | - | 1.000" L x 0.866" W (25.40mm x 22.00mm) | 0.413" (10.50mm) |
|
|
OS560-1005-015LOW PHASE NOISE -175DBC/HZ OCXO |
1,076 |
|
Datasheet | OS560 | - | Bulk | Active | Crystal | OCXO | 10 MHz | - | Sine Wave | 3.3V | ±5ppb | - | 0°C ~ 50°C | - | - | - | Surface Mount | - | 1.000" L x 0.866" W (25.40mm x 22.00mm) | 0.413" (10.50mm) |
|
|
OS560-1006-017LOW PHASE NOISE -178DBC/HZ OCXO |
3,113 |
|
Datasheet | OS560 | - | Bulk | Active | Crystal | OCXO | 100 MHz | - | Sine Wave | 12V | ±10ppb | - | -20°C ~ 70°C | - | - | - | Surface Mount | - | 1.000" L x 0.866" W (25.40mm x 22.00mm) | 0.413" (10.50mm) |
|
|
OS560-2465-021LOW PHASE NOISE -168DBC/HZ OCXO |
3,805 |
|
Datasheet | OS560 | - | Bulk | Active | Crystal | OCXO | 24.576 MHz | - | CMOS | 5V | 10ppb | - | -20°C ~ 70°C | - | - | - | Surface Mount | - | 1.000" L x 0.866" W (25.40mm x 22.00mm) | 0.413" (10.50mm) |
|

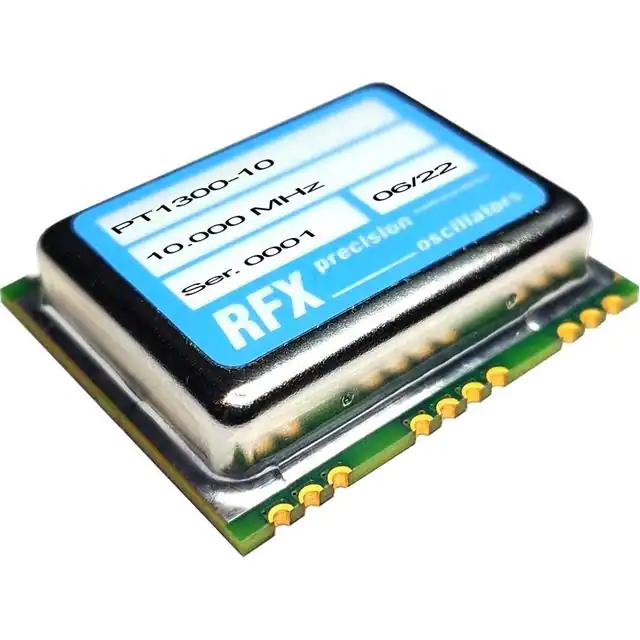

PT1300-1005-GPSGPS LOCKED LOW PHASE NOISE SMD |
4,447 |
|
Datasheet | PT1300 | - | Bulk | Active | Crystal | OCXO | 10 MHz | - | CMOS | 5V | ±20ppb | - | -40°C ~ 70°C | - | - | - | Surface Mount | - | 1.539" L x 1.280" W (39.10mm x 32.50mm) | 0.335" (8.50mm) |
|
OA265-1005-00510MHz OCXO 50PPB LOW PHASE NOISE |
2,720 |
|
Datasheet | OA265 | 14-DIP, 4 Leads (Full Size, Metal Can) | Active | Crystal | OCXO | 10 MHz | - | CMOS | 3.3V | ±50ppb | - | -20°C ~ 60°C | - | - | - | Through Hole | 4-VDFN (3.2x2.5) | 0.807" L x 0.508" W (20.50mm x 12.90mm) | 0.335" (8.50mm) | |
|
|
OA265-1005-00110MHz OCXO 100PPB LOW PHASENOISE |
3,658 |
|
Datasheet | OA265 | 14-DIP, 4 Leads (Full Size, Metal Can) | Active | Crystal | OCXO | 10 MHz | - | CMOS | 3.3V | ±100ppb | - | -40°C ~ 70°C | - | - | - | Through Hole | - | 0.807" L x 0.508" W (20.50mm x 12.90mm) | 0.335" (8.50mm) | |
|
OS240-1005-026LOW PHASE NOISE -165DBC/HZ OCXO |
7,592 |
|
Datasheet | OS240 | - | Active | Crystal | OCXO | 10 MHz | - | CMOS | 12V | ±20ppb | - | -40°C ~ 70°C | - | - | - | Surface Mount | - | 0.984" L x 0.575" W (25.00mm x 14.60mm) | 0.352" (8.95mm) | |
|
|
OS240-2005-026LOW PHASE NOISE -165DBC/HZ OCXO |
5,787 |
|
Datasheet | OS240 | - | Active | Crystal | OCXO | 20 MHz | - | CMOS | 12V | ±20ppb | - | -40°C ~ 70°C | - | - | - | Surface Mount | - | 0.984" L x 0.575" W (25.00mm x 14.60mm) | 0.352" (8.95mm) | |
|
|
OS240-1005-020LOW PHASE NOISE -165DBC/HZ OCXO |
4,156 |
|
Datasheet | OS240 | - | Active | Crystal | OCXO | 10 MHz | - | CMOS | 5V | ±20ppb | - | -40°C ~ 70°C | - | - | - | Surface Mount | - | 0.984" L x 0.575" W (25.00mm x 14.60mm) | 0.352" (8.95mm) |
Frequently Asked Questions
What are Oscillators components used for?
Oscillators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Oscillators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Oscillators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
