Oscillators
Review Oscillators Crystals, Oscillators, Resonators components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3,2x2,5x0,9.jpg "DSC1203NE3-120M0000")
|
DSC1203NE3-120M0000MEMS OSC XO 120.0000MHZ LVDS SMD |
7,302 |
|
Datasheet | DSC12X3 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 120 MHz | Standby (Power Down) | LVDS | 2.25V ~ 3.63V | ±20ppm | - | -20°C ~ 70°C | - | 32mA (Typ) | - | Surface Mount | 6-VDFN (7x5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.035" (0.90mm) |
|
DSC1221CA2-25M00000MEMS OSC XO 25.0000MHZ CMOS SMD |
8,620 |
|
Datasheet | DSC12X1 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 25 MHz | Enable/Disable | CMOS | 2.25V ~ 3.6V | ±25ppm | - | -40°C ~ 125°C | - | 27mA (Typ) | - | Surface Mount | 6-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|

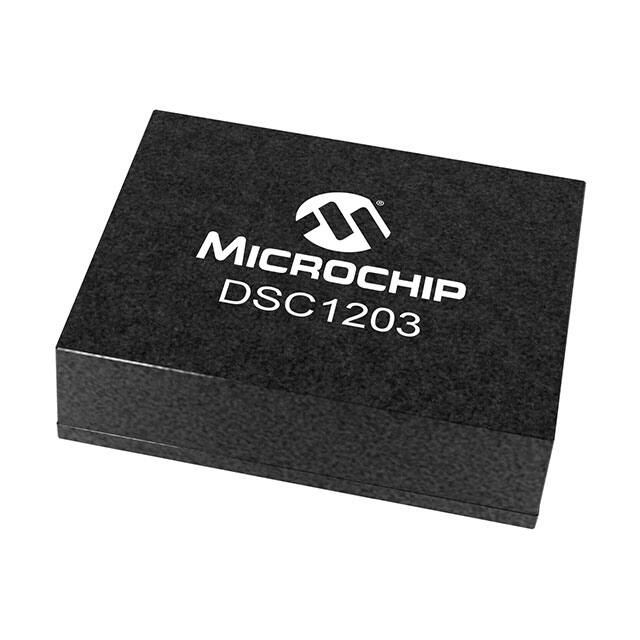

DSC1203NA1-20M00000MEMS OSC XO 20.0000MHZ LVDS SMD |
3,192 |
|
Datasheet | DSC12X3 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 20 MHz | Standby (Power Down) | LVDS | 2.25V ~ 3.63V | ±50ppm | - | -40°C ~ 125°C | - | 32mA (Typ) | - | Surface Mount | 6-VDFN (7x5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.035" (0.90mm) |
|
DSC1223BI1-155M5200MEMS OSC XO 155.5200MHZ LVDS SMD |
4,101 |
|
Datasheet | DSC12X3 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 155.52 MHz | Enable/Disable | LVDS | 2.25V ~ 3.63V | ±50ppm | - | -40°C ~ 85°C | - | 32mA (Typ) | - | Surface Mount | 6-CDFN (5x3.2) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.035" (0.90mm) |
|
|
DSC1203NI1-100M0000MEMS OSC XO 100.0000MHZ LVDS SMD |
8,930 |
|
Datasheet | DSC12X3 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 100 MHz | Standby (Power Down) | LVDS | 2.25V ~ 3.63V | ±50ppm | - | -40°C ~ 85°C | - | 32mA (Typ) | - | Surface Mount | 6-VDFN (7x5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.035" (0.90mm) |
|
|
DSC1223DI2-148M5000MEMS OSC XO 148.5000MHZ LVDS SMD |
6,349 |
|
Datasheet | DSC12X3 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 148.5 MHz | Enable/Disable | LVDS | 2.25V ~ 3.63V | ±25ppm | - | -40°C ~ 85°C | - | 32mA (Typ) | - | Surface Mount | 6-VDFN (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
DSC1223DI2-150M0000MEMS OSC XO 150.0000MHZ LVDS SMD |
2,956 |
|
Datasheet | DSC12X3 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 150 MHz | Enable/Disable | LVDS | 2.25V ~ 3.63V | ±25ppm | - | -40°C ~ 85°C | - | 32mA (Typ) | - | Surface Mount | 6-VDFN (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
DSC1222NI2-150M0000MEMS OSC XO 150.0000MHZ LVPECL |
9,733 |
|
Datasheet | DSC12X2 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 150 MHz | Enable/Disable | LVPECL | 2.25V ~ 3.63V | ±25ppm | - | -40°C ~ 85°C | - | 50mA (Typ) | - | Surface Mount | 6-VDFN (7x5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.035" (0.90mm) |
|
|
DSC1253BL2-148M3500MEMS OSC XO 148.3500MHZ LVDS SMD |
5,795 |
|
Datasheet | DSC12X3 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 148.35 MHz | Enable/Disable | LVDS | 2.25V ~ 3.63V | ±25ppm | - | -40°C ~ 105°C | - | 32mA (Typ) | - | Surface Mount | 6-CDFN (5x3.2) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.035" (0.90mm) |
|
|
DSC1203BE1-312M5000MEMS OSC XO 312.5000MHZ LVDS SMD |
5,778 |
|
Datasheet | DSC12X3 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 312.5 MHz | Standby (Power Down) | LVDS | 2.25V ~ 3.63V | ±50ppm | - | -20°C ~ 70°C | - | 32mA (Typ) | - | Surface Mount | 6-CDFN (5x3.2) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.035" (0.90mm) |
Frequently Asked Questions
What are Oscillators components used for?
Oscillators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Oscillators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Oscillators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
