Triac, SCR Output Optoisolators
Explore Triac, SCR Output Optoisolators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3083SR2M_F132OPTOISOLATOR 4.17KV TRIAC 6SMD |
4,848 |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
K3023PGOPTOISOLATOR 5.3KV TRIAC 6DIP |
3,683 |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 400 V | 10V/µs (Typ) | 5mA | 100 mA | 200µA (Typ) | - | 1.3V | 80 mA | -55°C ~ 100°C | Through Hole | 6-DIP | BSI, CQC, CSA, cUR, UR, VDE |
|
EL3083OPTOISOLATOR 5KV TRIAC 6DIP |
2,870 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 600V/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
TLP160G(TPR,U,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
2,304 |
|
Datasheet | - | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 2500Vrms | 400 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|

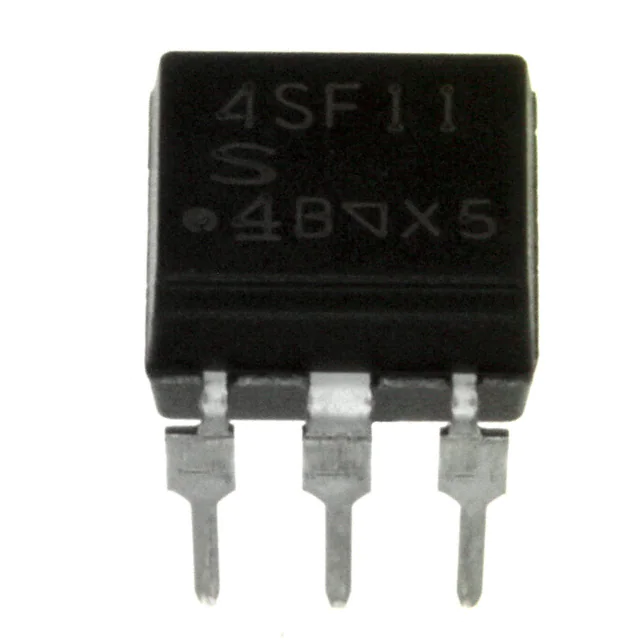

PC4SF11YTZBFOPTOISOLATOR 5KV TRIAC 6DIP |
1,910 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
MOC3062SMT&R6PIN ZERO CROSSING TRIAC OUTPUT, |
1,640 |
|
Datasheet | MOC306 | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac, Power | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 10mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UL, VDE |
|
EL3083MOPTOISOLATOR 5KV TRIAC 6DIP |
1,469 |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 600V/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
.jpg "VO4256D")
|
VO4256DOPTOISOLATOR 5.3KV TRIAC 6DIP |
1,426 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 5kV/µs | 1.6mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, FIMKO, UR |
|
|
MOC3163TMOPTOISOLATOR 4.17KV TRIAC 6DIP |
1,725 |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
FODM3083R1OPTOISOLATOR 3.75KV TRIAC 4SMD |
3,347 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 3750Vrms | 800 V | 600V/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUL, UL |
|
FODM3010R3VOPTOISOLATOR 3.75KV TRIAC 4MFP |
2,560 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3750Vrms | 250 V | 10V/µs (Typ) | 15mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL, VDE |
|
|
VO4254HOPTOISOLATOR 5.3KV TRIAC 6DIP |
1,761 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 400 V | 5kV/µs | 2mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, FIMKO, UR |
|
|
EL3062M-VOPTOISOLATOR 5KV TRIAC 6DIP |
4,125 |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
MOC3162TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
2,341 |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
APT1211SZOPTOISOLATOR 3.75KV TRIAC 4SOP |
2,331 |
|
Datasheet | APT | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-SOP | cUR, VDE |
|
|
FODM3011R1_NF098OPTOISOLATOR 3.75KV TRIAC 4MFP |
3,633 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3750Vrms | 250 V | 10V/µs (Typ) | 10mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR |
|
|
MOC3162SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
2,174 |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
APT1211WAOPTOISOLATOR 5KV TRIAC 4DIP |
2,969 |
|
Datasheet | APT | 4-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-DIP Gull Wing | cUR, VDE |
|
|
MOC3163SVMOPTOISOLATOR 4.17KV TRIAC 6SMD |
3,322 |
|
Datasheet | - | 6-SMD, Gull Wing | Tube | Obsolete | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
APT1232AZOPTOISOLATOR 5KV TRIAC 6DIP |
2,707 |
|
Datasheet | APT | 5-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
Frequently Asked Questions
What are Triac, SCR Output Optoisolators components used for?
Triac, SCR Output Optoisolators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Triac, SCR Output Optoisolators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Triac, SCR Output Optoisolators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
