Transistor, Photovoltaic Output Optoisolators
Explore Transistor, Photovoltaic Output Optoisolators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP292-4(4LGBTPEOPTOISOLATOR 3.75KV TRANS SO16 |
4,912 |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP292-4(V4-GB,EOPTOISOLATOR 3.75KV TRANS SO16 |
950 |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tube | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
FODM8801AR2VOPTOISO 3.75KV TRANS 4-MINI-FLAT |
3,460 |
|
Datasheet | OptoHit™ | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 80% @ 1mA | 160% @ 1mA | 6µs, 6µs | 5µs, 5.5µs | DC | Transistor | 75V | 30mA | 1.35V | 20 mA | 400mV | - | - | -40°C ~ 125°C | Surface Mount | 4-Mini-Flat |
|
|
FODM8801AVOPTOISO 3.75KV TRANS 4-MINI-FLAT |
2,614 |
|
Datasheet | OptoHit™ | 4-SOIC (0.173", 4.40mm Width) | Tube | Active | 1 | 3750Vrms | 80% @ 1mA | 160% @ 1mA | 6µs, 6µs | 5µs, 5.5µs | DC | Transistor | 75V | 30mA | 1.35V | 20 mA | 400mV | - | - | -40°C ~ 125°C | Surface Mount | 4-Mini-Flat |
|
PS2535-1-V-AOPTOCOUPLER 4-PIN DIP |
1,816 |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 400% @ 1mA | 5500% @ 1mA | - | 18µs, 5µs | DC | Transistor | 350V | 120mA | 1.2V | 50 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
RV1S2211ACCSP-10YC#SC0OPTO COUPLER IN 4PIN SSOP |
3,228 |
|
Datasheet | - | 4-SOP (0.295", 7.50mm Width) | Strip | Active | 1 | 5000Vrms | 100% @ 1mA | 400% @ 1mA | - | 4µs, 5µs | DC | Transistor | 40V | 40mA | 1.15V | 30 mA | 300mV | - | - | -40°C ~ 115°C | Surface Mount | 4-LSSOP |
|
|
PS2535L-1-V-AOPTOCOUPLER 4-PIN DIP |
1,409 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 400% @ 1mA | 5500% @ 1mA | - | 18µs, 5µs | DC | Transistor | 350V | 120mA | 1.2V | 50 mA | 1V | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
MCT5210MOPTOISO 4.17KV TRANS W/BASE 6DIP |
1,517 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 4170Vrms | 70% @ 3mA | - | 10µs, 400ns | - | DC | Transistor with Base | 30V | 150mA | 1.25V | 50 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
ILD615-3OPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
1,334 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
ILD615-2OPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
694 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
PS2535L-1-F3-AOPTOISOLATOR 5KV DARL 4SMD |
27,950 |
|
Datasheet | NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 400% @ 1mA | 5500% @ 1mA | - | 18µs, 5µs | DC | Darlington | 350V | 120mA | 1.2V | 50 mA | 1V | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
FOD2712AR2VOPTOISO 2.5KV TRANSISTOR 8SOIC |
3,800 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
IL252-X007TOPTOISO 5.3KV TRANS W/BASE 6SMD |
1,754 |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 100% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
|
RV1S2211ACCSP-10YV#SC0OPTO COUPLER IN 4PIN SSOP |
422 |
|
Datasheet | - | 4-SOP (0.295", 7.50mm Width) | Strip | Active | 1 | 5000Vrms | 100% @ 1mA | 400% @ 1mA | - | 4µs, 5µs | DC | Transistor | 40V | 40mA | 1.15V | 30 mA | 300mV | - | - | -40°C ~ 115°C | Surface Mount | 4-LSSOP |
|
|
ILD615-4OPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
377 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Last Time Buy | 2 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
FOD2741BSDVOPTOISOLATOR 5KV TRANSISTOR 8SMD |
4,431 |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
6N139VM8PW DIP H GAIN OPTOCOUPLER (VDE) |
945 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 500% @ 1.6mA | - | 240ns, 1.3µs | - | DC | Darlington with Base | 18V | 60mA | 1.3V | 20 mA | - | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
ISQ74XOPTOISO 5.3KV 4CH TRANS 16DIP |
428 |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Active | 4 | 5300Vrms | 12.5% @ 16mA | - | - | 2.6µs, 2.2µs | DC | Transistor | 50V | 50mA | 1.2V | 50 mA | - | - | - | -25°C ~ 100°C | Through Hole | - |
|
PS2911-1-M-AXOPTOISOLATOR 2.5KV TRANS 4-SMD |
555 |
|
Datasheet | - | 4-SMD, Flat Leads | Strip | Active | 1 | 2500Vrms | 100% @ 1mA | 200% @ 1mA | 40µs, 120µs | 5µs, 10µs | DC | Transistor | 40V | 40mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|

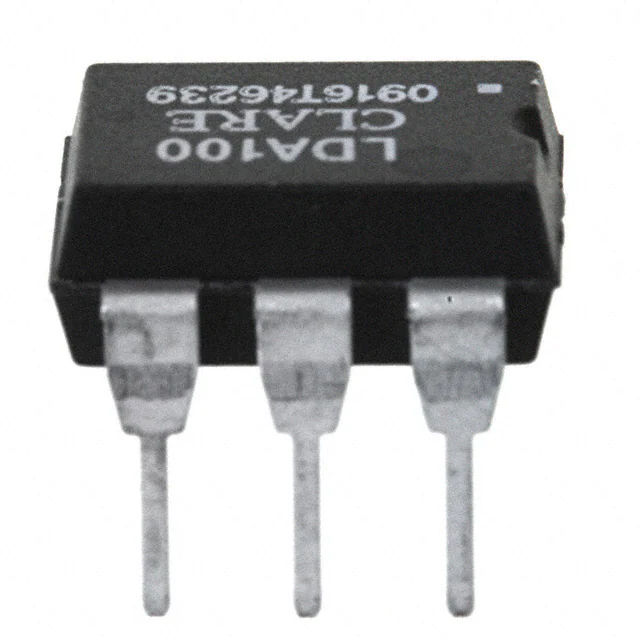

LDA100OPTOISO 3.75KV TRANS W/BASE 6DIP |
488 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 3750Vrms | 33% @ 1mA | - | 7µs, 20µs | - | AC, DC | Transistor with Base | 30V | - | 1.2V | 1 mA | 500mV | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
Frequently Asked Questions
What are Transistor, Photovoltaic Output Optoisolators components used for?
Transistor, Photovoltaic Output Optoisolators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Transistor, Photovoltaic Output Optoisolators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Transistor, Photovoltaic Output Optoisolators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
