Transistor, Photovoltaic Output Optoisolators
Explore Transistor, Photovoltaic Output Optoisolators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPI120TXVOPTOISOLATOR 15KV TRANS AXIAL |
1,519 |
|
Datasheet | - | Axial - 5 Leads | Bulk | Obsolete | 1 | 15000VDC | 20% @ 10mA | - | - | 8µs, 8µs | DC | Transistor | 30V | 50mA | 1.4V | 100 mA | 300mV | - | - | -65°C ~ 125°C | Through Hole | Axial |
|
4N25A(SHORT,F)OPTOISO 2.5KV TRANS W/BASE 6DIP |
4,773 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 2500Vrms | 20% @ 10mA | - | - | 2µs, 200µs | DC | Transistor with Base | 30V | 100mA | 1.15V | 80 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
TLP504A(F)OPTOISOLTR 2.5KV 2CH TRANS 8-DIP |
2,308 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 2500Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
TLP632(F)OPTOISOLATR 5KV TRANSISTOR 6-DIP |
4,223 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |

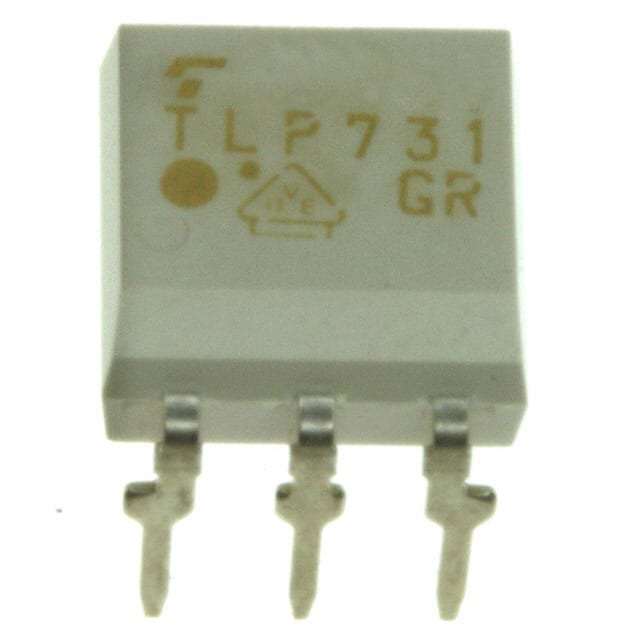

.JPG "TLP731(D4-GR,F)")
|
TLP731(D4-GR,F)OPTOISO 4KV TRANS W/BASE 6DIP |
1,192 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 4000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor with Base | 55V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
4N26(SHORT,F)OPTOISO 2.5KV TRANS W/BASE 6DIP |
4,291 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 2500Vrms | 20% @ 10mA | - | - | 2µs, 200µs | DC | Transistor with Base | 30V | 100mA | 1.15V | 80 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
6N138(TP1,F)OPTOISO 2.5KV DARL W/BASE 8SMD |
4,881 |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 2500Vrms | 300% @ 1.6mA | - | 1µs, 4µs | - | DC | Darlington with Base | 18V | 60mA | 1.65V | 20 mA | - | - | - | 0°C ~ 70°C | Surface Mount | 8-SMD |
|
|
TLP331(BV,F)OPTOISO 5KV TRANS W/BASE 6DIP |
2,531 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 200% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | DC | Transistor with Base | 55V | 50mA | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
TLP631(BL,F)OPTOISO 5KV TRANS W/BASE 6DIP |
1,013 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor with Base | 55V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
TLP631(GR,F)OPTOISO 5KV TRANS W/BASE 6DIP |
4,472 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor with Base | 55V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
LTV-847COPTOISOLTR 5KV 4CH TRANS 16-DIP |
2,323 |
|
Datasheet | LTV-8x7 | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 110°C | Through Hole | 16-DIP |
|
6N138OPTOISO 5.3KV DARL W/BASE 8DIP |
1,200 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 300% @ 1.6mA | - | 2µs, 2µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
H11A2OPTOISO 5.3KV TRANS W/BASE 6DIP |
2,029 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 20% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 70V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11A3OPTOISO 5.3KV TRANS W/BASE 6DIP |
1,548 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 20% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 70V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
H11B1OPTOISO 5.3KV DARL W/BASE 6DIP |
4,651 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 500% @ 1mA | - | 5µs, 30µs | - | DC | Darlington with Base | 25V | 100mA | 1.1V | 60 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
IL1OPTOISO 5.3KV TRANS W/BASE 6DIP |
1,614 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 20% @ 10mA | 300% @ 10mA | 700ns, 1.4µs | 1.9µs, 1.4µs | DC | Transistor with Base | 50V | 50mA | 1.25V | 60 mA | 250mV (Typ) | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
|
IL2OPTOISO 5.3KV TRANS W/BASE 6DIP |
1,117 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 100% @ 10mA | 500% @ 10mA | 1.2µs, 2.3µs | 2.6µs, 2.2µs | DC | Transistor with Base | 70V | 50mA | 1.25V | 60 mA | 250mV (Typ) | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
|
ILCT6OPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
3,744 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5300Vrms | 20% @ 10mA | - | 3µs, 3µs | - | DC | Transistor | 30V | 30mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
ILD250OPTOISO 5.3KV 2CH TRANS 8DIP |
2,367 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5300Vrms | 50% @ 10mA | - | - | - | AC, DC | Transistor | 30V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | - |
|
|
ILD252OPTOISO 5.3KV 2CH TRANS 8DIP |
3,606 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5300Vrms | 100% @ 10mA | - | - | - | AC, DC | Transistor | 30V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | - |
Frequently Asked Questions
What are Transistor, Photovoltaic Output Optoisolators components used for?
Transistor, Photovoltaic Output Optoisolators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Transistor, Photovoltaic Output Optoisolators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Transistor, Photovoltaic Output Optoisolators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
