Transistor, Photovoltaic Output Optoisolators
Explore Transistor, Photovoltaic Output Optoisolators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

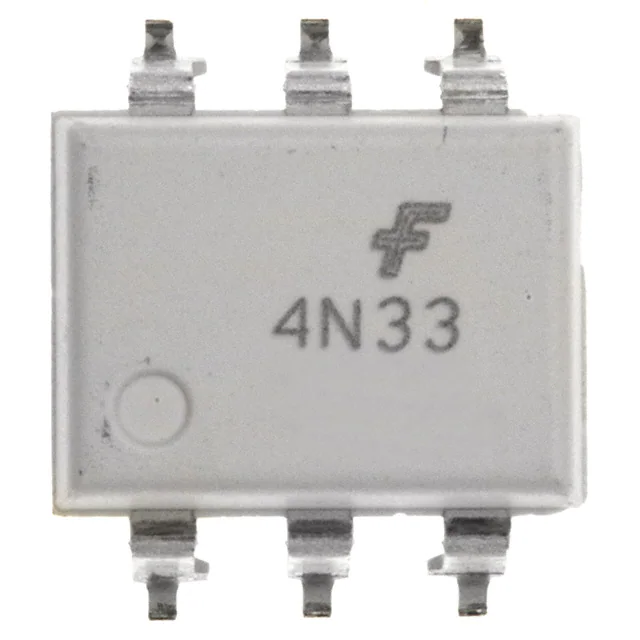

4N33SR2MOPTOISO 4.17KV DARL W/BASE 6SMD |
3,716 |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 4170Vrms | 500% @ 10mA | - | 5µs, 100µs (Max) | - | DC | Darlington with Base | 30V | 150mA | 1.2V | 80 mA | 1V | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
H11D1OPTOISO 5KV TRANS W/BASE 6DIP |
3,559 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 20% @ 10mA | - | 5µs, 5µs | - | DC | Transistor with Base | 300V | 100mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
MOC207MOPTOISO 2.5KV TRANS W/BASE 8SOIC |
11,602 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Box | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
TIL111MOPTOISO 7.5KV TRANS W/BASE 6DIP |
345 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 7500Vpk | - | - | - | 10µs, 10µs (Max) | DC | Transistor with Base | 30V | 2mA | 1.2V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
CNY17-3X017TOPTOISO 5KV TRANS W/BASE 6SMD |
7,474 |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SMD |
|
SFH6106-2OPTOISOLATOR 5.3KV TRANS 4SMD |
2,951 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
SFH6106-3OPTOISOLATOR 5.3KV TRANS 4SMD |
2,651 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
SFH1690BTOPTOISOLATOR 3.75KV TRANS 4SOP |
2,000 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
PS2561D-1Y-W-AOPTOISOLATOR 5KV TRANS 4DIP |
9,302 |
|
Datasheet | NEPOC | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.2V | 40 mA | 300mV | - | - | -55°C ~ 110°C | Through Hole | 4-DIP |
|
PS2801C-1-V-F3-AOPTOISOLATOR 2.5KV TRANS 4SOIC |
8,388 |
|
Datasheet | - | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 50% @ 5mA | 400% @ 5mA | 10µs, 7µs | 5µs, 7µs | DC | Transistor | 80V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SSOP |
|
|
PS2561D-1Y-V-AOPTOCOUPLER 4-PIN DIP |
4,741 |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.2V | 40 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
|
SFH6186-5TOPTOISOLATOR 5.3KV TRANS 4-SMD |
5,440 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 250% @ 1mA | 500% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
SFH6186-3OPTOISOLATOR 5.3KV TRANS 4SMD |
3,705 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 100% @ 1mA | 200% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
MCT62OPTOISO 5KV 2CH TRANSISTOR 8DIP |
1,320 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 5000Vrms | 100% @ 5mA | - | 3µs, 3µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
TLP627M(D4-TP5,EDC INPUT PHOTOCOUPLER; DIP4; ; V |
1,184 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 1000% @ 1mA | - | 110µs, 30µs | 60µs, 30µs | DC | Darlington | 300V | 150mA | 1.25V | 50 mA | 1.2V | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
|
SFH6186-4OPTOISOLATOR 5.3KV TRANS 4SMD |
1,091 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 160% @ 1mA | 320% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
TLP627M(D4,EOPTOIOSOLATOR DARLINGTON 4DIP |
144 |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 1000% @ 1mA | - | 110µs, 30µs | 60µs, 30µs | DC | Darlington | 300V | 150mA | 1.25V | 50 mA | 1.2V | - | - | -55°C ~ 110°C | Through Hole | 4-DIP |
|
|
TLP627M(TP1,EOPTOIOSOLATOR DARLINGTON |
114 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 1000% @ 1mA | - | 110µs, 30µs | 60µs, 30µs | DC | Darlington | 300V | 150mA | 1.25V | 50 mA | 1.2V | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
PC354NJ0000FOPTOISOLATOR 3.75KV TRANS 4-SMD |
14,562 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
|
SFH6206-3OPTOISOLATOR 5.3KV TRANS 4SMD |
5,913 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 100% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
Frequently Asked Questions
What are Transistor, Photovoltaic Output Optoisolators components used for?
Transistor, Photovoltaic Output Optoisolators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Transistor, Photovoltaic Output Optoisolators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Transistor, Photovoltaic Output Optoisolators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
