Transistor, Photovoltaic Output Optoisolators
Review Transistor, Photovoltaic Output Optoisolators Optocouplers, Optoisolators components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4N35VMPHOTOTRANSISTOR OUTPUT OPTOCOUPL |
1,980 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Bulk | Active | 1 | 4170Vrms | 100% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 300mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
CNY17F4SVMTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
1,970 |
|
Datasheet | - | 6-SMD, Gull Wing | Bulk | Active | 1 | 4170Vrms | 160% @ 10mA | 320% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
H11A1MTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
1,765 |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 5000Vrms | 50% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Through Hole | 6-DIP |
|
4N25TVMPHOTOTRANSISTOR OUTPUT OPTOCOUPL |
4,700 |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 4170Vrms | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 500mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
MOC205MTRANSISTOR OUTPUT OPTOCOUPLER, 2 |
18,410 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | 1 | 2500Vrms | 40% @ 10mA | 80% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
MOC206MTRANSISTOR OUTPUT OPTOCOUPLER, 2 |
9,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

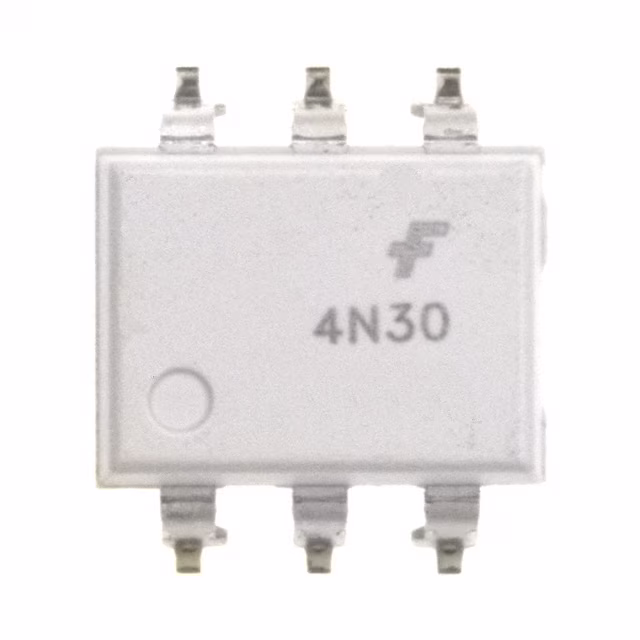

4N30SMGENERAL PURPOSE PHOTODARLINGTON |
15,366 |
|
Datasheet | - | 6-SMD, Gull Wing | Bulk | Active | 1 | 4170Vrms | 100% @ 10mA | - | 5µs, 40µs (Max) | - | DC | Darlington with Base | 30V | 150mA | 1.2V | 80 mA | 1V | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
4N29MGENERAL PURPOSE PHOTODARLINGTON |
3,040 |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 5000Vrms | 100% @ 10mA | - | 5µs, 40µs (Max) | - | DC | Darlington with Base | 55V | - | 1.2V | 60 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11A1SR2VMTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
2,000 |
|
Datasheet | - | 6-SMD, Gull Wing | Bulk | Active | 1 | 4170Vrms | 50% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
MOC211MTRANSISTOR OUTPUT OPTOCOUPLER, 2 |
365,980 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | 1 | 2500Vrms | 20% @ 10mA | - | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
