Transistor, Photovoltaic Output Optoisolators
Review Transistor, Photovoltaic Output Optoisolators Optocouplers, Optoisolators components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPIA2110DTUEOPTOISOLATR 5KV TRANSISTOR 6-DIP |
3,366 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 40% @ 10mA | 400% @ 10mA | - | 4µs, 3µs | DC | Transistor | 60V | 50mA | 1.2V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | 6-DIP |
|
OPIA4N35ATREOPTOISO 5KV TRANS W/BASE 6SMD |
2,902 |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 5000Vrms | 60% @ 2mA | 600% @ 2mA | - | 5µs, 4µs | DC | Transistor with Base | 60V | 50mA | 1.2V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Surface Mount | 6-SMD |
|
OPIA814DTUAOPTOISOLATR 5KV TRANSISTOR 4-DIP |
1,141 |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 60% @ 1mA | 600% @ 1mA | - | 5µs, 4µs | AC, DC | Transistor | 60V | 50mA | 1.2V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
OP525FOPTOISOLTRLATOR TRANSISTOR 1210 |
2,943 |
|
Datasheet | - | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | 1 | - | - | - | - | 15µs, 15µs | - | Transistor | 30V | 20mA | - | - | 400mV | - | - | -40°C ~ 80°C | Surface Mount | 1210 |
|
OPIA815ATUEOPTOISOLTR 5KV DARLINGTON 4-SMD |
3,948 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Obsolete | 1 | 5000Vrms | 70% @ 50µA | - | - | 80µs, 72µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
OPIA407CTUOPTOISOLATOR 2.5KV TRANS 4-SSOP |
3,692 |
|
Datasheet | - | 4-SOIC (0.173", 4.40mm Width) | Tube | Obsolete | 1 | 2500Vrms | 0.3% @ 5mA | 3% @ 5mA | - | 3µs, 5µs | AC, DC | Transistor | 80V | 50mA | 1.1V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SSOP |
|

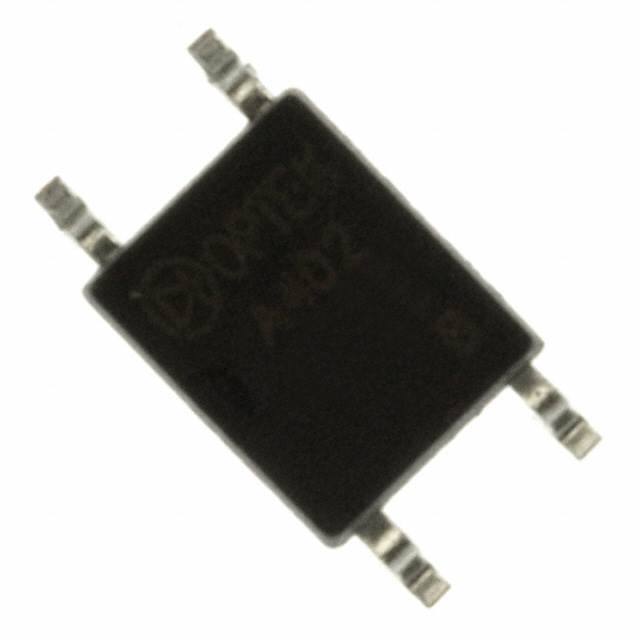

OPIA402BTUOPTOISOLATOR 3.75KV TRANS 4-SOP |
4,554 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Obsolete | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 60V | 50mA | 1.2V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SOP (2.54mm) |
|
|
OPIA406CTUEOPTOISO 2.5KV DARLINGTON 4-SSOP |
1,455 |
|
Datasheet | - | 4-SOIC (0.173", 4.40mm Width) | Tube | Obsolete | 1 | 2500Vrms | 20% @ 1mA | - | - | 200µs, 200µs | DC | Darlington | 40V | 90mA | 1.1V | 50 mA | 1V | - | - | -30°C ~ 100°C | Surface Mount | 4-SSOP |
|
OPIA4010ATUOPTOISOLTR 5KV DARLINGTON 4-SMD |
3,016 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Obsolete | 1 | 5000Vrms | 600% @ 1mA | 9000% @ 1mA | - | 60µs, 50µs | DC | Darlington | 300V | 150mA | 1.2V | 50 mA | 1.5V | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
|
OPIA815DTUEOPTOISOLTR 5KV DARLINGTON 4-DIP |
1,714 |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 70% @ 50µA | - | - | 80µs, 72µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
Frequently Asked Questions
What are Transistor, Photovoltaic Output Optoisolators components used for?
Transistor, Photovoltaic Output Optoisolators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Transistor, Photovoltaic Output Optoisolators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Transistor, Photovoltaic Output Optoisolators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
