Transistor, Photovoltaic Output Optoisolators
Review Transistor, Photovoltaic Output Optoisolators Optocouplers, Optoisolators components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC853XJ0000FOPTOISOLATOR 5KV DARL 4DIP |
1,899 |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
PC851XIJ000FOPTOISOLATOR 5KV TRANS 4SMD |
2,567 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Obsolete | 1 | 5000Vrms | - | - | - | 4µs, 5µs | DC | Transistor | 350V | 50mA | 1.2V | 50 mA | 300mV | - | - | -25°C ~ 100°C | Surface Mount | 4-SMD |
|
|
PC852XJ0000FOPTOISOLATOR 5KV DARL 4DIP |
2,137 |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|

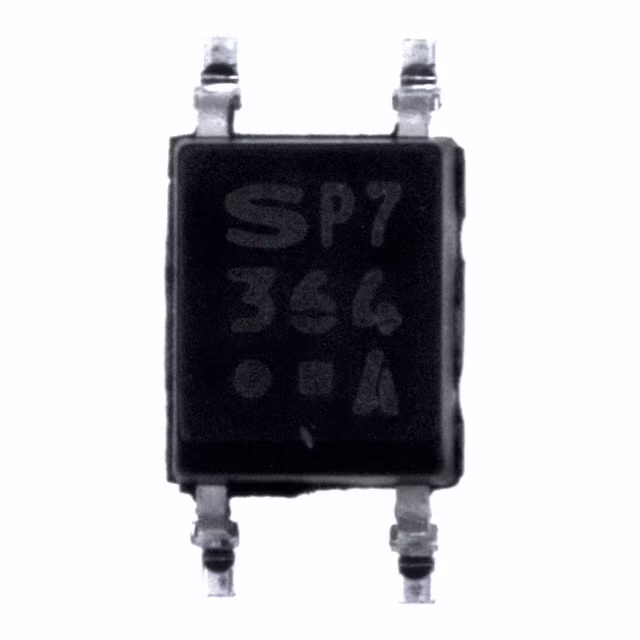

PC364N1OPTOISO 3.75KV TRANS 4-MINI-FLAT |
4,155 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 100% @ 500µA | 300% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
PC702V0NSZXOPTOISO 5KV TRANS W/BASE 6DIP |
2,966 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | 1 | 5000Vrms | - | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.4V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
PC703V0NSZXOPTOISO 5KV TRANS W/BASE 6DIP |
4,864 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 40% @ 10mA | 320% @ 10mA | - | 4µs, 3µs | DC | Transistor with Base | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 6-DIP |
|
|
PC715V0NSZXOPTOISOLTR 5KV DARLINGTON 6-DIP |
2,420 |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | - | - | -25°C ~ 100°C | Through Hole | 6-DIP |
|
|
PC81510NSZOPTOISOLATOR 5KV DARL 4DIP |
1,098 |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 600% @ 500µA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 10 mA | 1V | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
PC852XIOPTOISOLATOR 5KV DARL 4SMD |
1,386 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
|
PC81510NSZ0FOPTOISOLATOR 5KV DARL 4DIP |
2,635 |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 600% @ 500µA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 10 mA | 1V | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
Frequently Asked Questions
What are Transistor, Photovoltaic Output Optoisolators components used for?
Transistor, Photovoltaic Output Optoisolators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Transistor, Photovoltaic Output Optoisolators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Transistor, Photovoltaic Output Optoisolators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
