Photonics - Counters, Detectors, SPCM (Single Photon Counting Module)
Explore Photonics - Counters, Detectors, SPCM (Single Photon Counting Module) parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Photon Detection Efficiency | Wavelength Range | Dark Count Rate | Wavelength - Peak | Max Count Rate | Dead Time | Voltage - Supply | Output | Detector Type | Active Area | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPCM-AQRH-16-FCPHOTON COUNT MODULE <25CPS FC |
1,726 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
SPCM-QC4 FIBERSPCM-QC4 MULTIMODE 62.5 |
2,740 |
|
Datasheet | SPCM-AQRH | Box | Active | Fiber Cable | - | - | - | - | - | - | - | - | - | - | - | - |
|

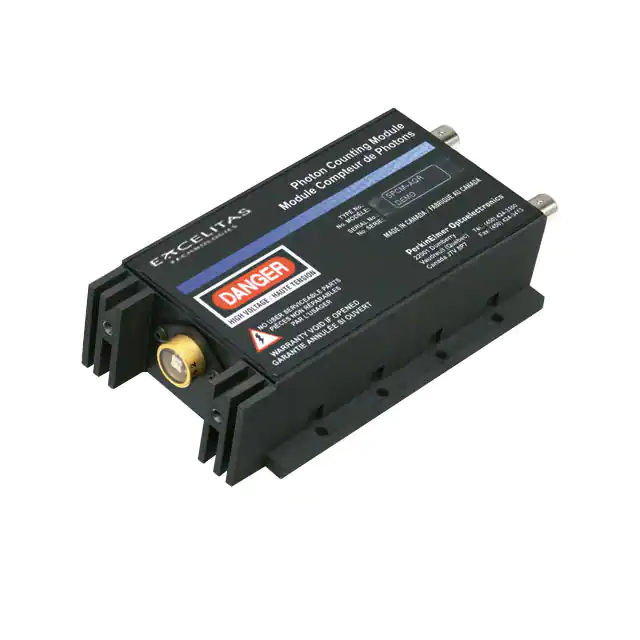

SPCM-AQRH-11PHOTON COUNT MODULE 1000CPS |
3,522 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1000cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
SPCM-AQRH-12PHOTON COUNT MODULE 500CPS |
2,046 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
1342-1POWER CABLE CIPRM MODULES |
4,392 |
|
Datasheet | CIPRM | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1342-2SHIELDED POWER CABLE |
2,396 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPCM-AQRH-20PHOTON COUNTING MODULE |
1,803 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-30PHOTON COUNTING MODULE |
4,827 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-40PHOTON COUNTING MODULE |
1,729 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-50PHOTON COUNTING MODULE |
1,162 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-60PHOTON COUNTING MODULE |
3,625 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 4.4V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-10-BR1PHOTON COUNTING MODULE |
1,637 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-10-BR2PHOTON COUNTING MODULE |
4,314 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-20-BR1PHOTON COUNTING MODULE |
3,657 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-20-BR2PHOTON COUNTING MODULE |
4,343 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-30-BR1PHOTON COUNTING MODULE |
1,747 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-30-BR2PHOTON COUNTING MODULE |
2,706 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-40-BR1PHOTON COUNTING MODULE |
3,290 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-40-BR2PHOTON COUNTING MODULE |
3,332 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-50-BR1PHOTON COUNTING MODULE |
1,791 |
|
Datasheet | SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
Frequently Asked Questions
What are Photonics - Counters, Detectors, SPCM (Single Photon Counting Module) components used for?
Photonics - Counters, Detectors, SPCM (Single Photon Counting Module) components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Photonics - Counters, Detectors, SPCM (Single Photon Counting Module) part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Photonics - Counters, Detectors, SPCM (Single Photon Counting Module) parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
