Photointerrupters - Slot Type - Transistor Output
Explore Photointerrupters - Slot Type - Transistor Output parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensing Distance | Sensing Method | Output Configuration | Current - DC Forward (If) (Max) | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Response Time | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EE-SX913-C1J-R 0.3MSENSOR OPT SLOT NPN MODULE |
1,329 |
|
Datasheet | - | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX913P-R 1MSENSOR OPT SLOT PNP MODULE |
1,104 |
|
Datasheet | - | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
EE-SX914-C1J-R 0.3MSENSOR OPT SLOT NPN MODULE |
4,533 |
|
Datasheet | - | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX914-R 1MSENSOR OPT SLOT NPN MODULE |
2,353 |
|
Datasheet | - | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
EE-SX914P-R 1MSENSOR OPT SLOT PNP MODULE |
1,165 |
|
Datasheet | - | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
ITR9803SENSOR OPT SLOT PHOTOTRANS MODUL |
1,770 |
|
Datasheet | - | Slotted Module | Bulk | Active | 0.122" (3.1mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 15µs | -25°C ~ 85°C | - | - | Through Hole |
|
|
LTH-306-41P1SENSOR OPT SLOT MODULE |
4,353 |
|
Datasheet | - | Module, PC Pins, Slot Type | Bulk | Active | - | - | - | 1 A | 20 mA | 30 V | 3µs, 4µs | -25°C ~ 85°C | - | - | Through Hole |
|
PM-F24PSENSOR OPT SLOT PNP MODULE |
3,455 |
|
Datasheet | PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-F24-RSENSOR OPT SLOT NPN MODULE |
3,216 |
|
Datasheet | PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-K24PSENSOR OPT SLOT PNP MODULE |
4,718 |
|
Datasheet | PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-K24-RSENSOR OPT SLOT NPN MODULE |
4,940 |
|
Datasheet | PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-K64PSENSOR OPT SLOT PNP MODULE |
1,548 |
|
Datasheet | PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-R24PSENSOR OPT SLOT PNP MODULE |
3,920 |
|
Datasheet | PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-R64SENSOR OPT SLOT NPN MODULE |
1,956 |
|
Datasheet | PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-R64PSENSOR OPT SLOT PNP MODULE |
1,019 |
|
Datasheet | PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-F54SENSOR OPT SLOT NPN MODULE |
2,228 |
|
Datasheet | PM-54 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-F54PSENSOR OPT SLOT PNP MODULE |
3,085 |
|
Datasheet | PM-54 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Open Collector | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-F64SENSOR OPT SLOT NPN MODULE |
3,742 |
|
Datasheet | PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
.JPG "PM-F64P")
|
PM-F64PSENSOR OPT SLOT PNP MODULE |
4,457 |
|
Datasheet | PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|

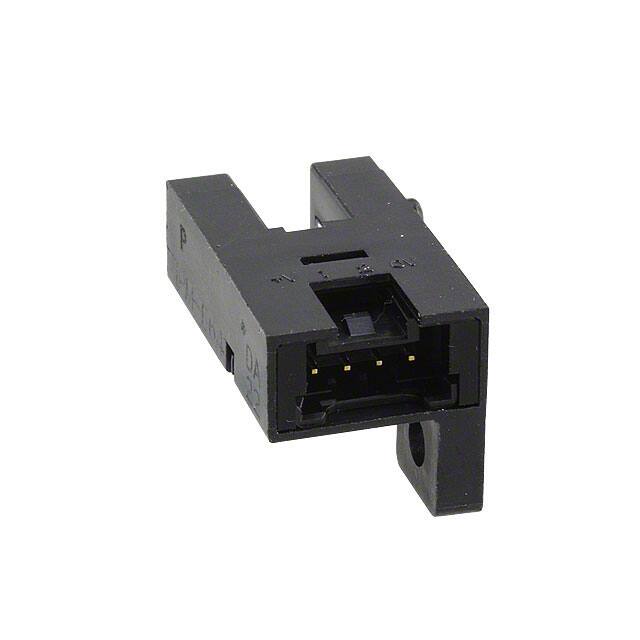

PM-K64SENSOR OPT SLOT NPN MODULE |
2,057 |
|
Datasheet | PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
Frequently Asked Questions
What are Photointerrupters - Slot Type - Transistor Output components used for?
Photointerrupters - Slot Type - Transistor Output components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Photointerrupters - Slot Type - Transistor Output part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Photointerrupters - Slot Type - Transistor Output parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
