Photointerrupters - Slot Type - Transistor Output
Explore Photointerrupters - Slot Type - Transistor Output parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensing Distance | Sensing Method | Output Configuration | Current - DC Forward (If) (Max) | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Response Time | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QVB11234SENSOR OPT SLOT PHOTOTRANS MODUL |
2,961 |
|
Datasheet | QVB | Module, PC Pins, Slot Type | Tube | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 40 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole, Flange |
|
|
QVB11334SENSOR OPT SLOT PHOTOTRANS MODUL |
1,171 |
|
Datasheet | QVB | Module, PC Pins, Slot Type | Tube | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 40 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole, Flange |
|
|
TCUT1600X01_ASENSOR OPT SLOT PHOTOTRANS MODUL |
3,975 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - |
|
OPS690SENSOR OPT SLOT PHOTOTRANS RAD |
3,363 |
|
Datasheet | - | Radial | Bulk | Obsolete | - | Through-Beam | Phototransistor | 50 mA | - | 30 V | - | -40°C ~ 100°C | - | - | Through Hole |
|

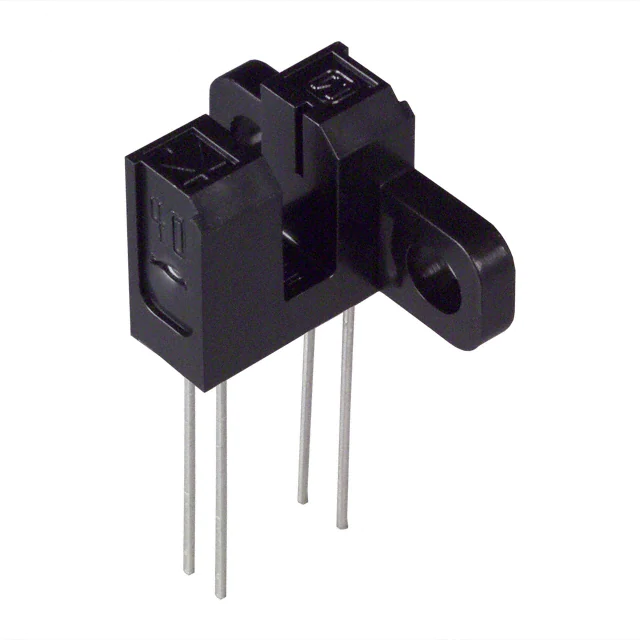

CNZ1023SENSOR OPT SLOT PHOTOTRAN PCB MT |
3,887 |
|
Datasheet | - | PCB Mount | Bulk | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 5µs, 5µs | -25°C ~ 85°C | - | - | Through Hole |
|
H21B1SENSOR OPT SLOT DARL PC PINS |
4,349 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | 7µs, 45µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
QVB11134SENSOR OPT SLOT PHOTOTRANS MODUL |
1,085 |
|
Datasheet | QVB | Module, PC Pins, Slot Type | Tube | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 40 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole, Flange |
|

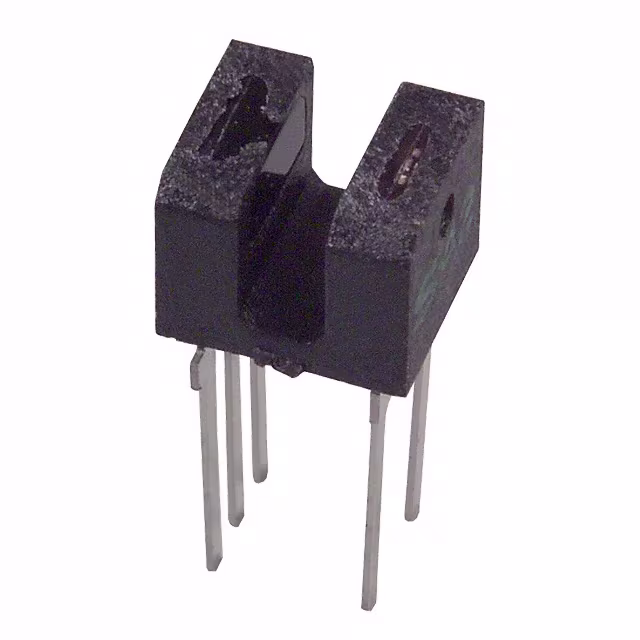

GP1S39SENSOR OPT SLOT PHOTOTRAN PCB MT |
3,376 |
|
Datasheet | - | PCB Mount | Bulk | Obsolete | 0.059" (1.5mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 35 V | 50µs, 50µs | -25°C ~ 85°C | - | - | Through Hole |
|
|
GP1S39J0000FSENSOR OPT SLOT PHOTOTRAN PCB MT |
4,627 |
|
Datasheet | - | PCB Mount | Bulk | Obsolete | 0.059" (1.5mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 35 V | 50µs, 50µs | -25°C ~ 85°C | - | - | Through Hole |
|
|
QVL21653SENSOR OPT SLOT PHOTOTRANS MODUL |
4,009 |
|
Datasheet | - | Module, PC Pins, Slot Type | Tube | Obsolete | 0.787" (20mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
|
QVL25335SENSOR OPT SLOT DARL MODULE |
1,165 |
|
Datasheet | - | Module, PC Pins, Slot Type | Tube | Obsolete | 0.787" (20mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
H22A1SENSOR OPT SLOT PHOTOTRAN PC PIN |
4,796 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 60 mA | 3 mA | 30 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H22A2SENSOR OPT SLOT PHOTOTRAN PC PIN |
3,487 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 60 mA | - | 30 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
H22A3SENSOR OPT SLOT PHOTOTRAN PC PIN |
2,049 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 60 mA | 5.5 mA | 30 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
MOC70P1SENSOR OPT SLOT PHOTOTRAN PC PIN |
2,783 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.200" (5.08mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 20µs, 80µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
MOC70P2SENSOR OPT SLOT PHOTOTRAN PC PIN |
2,770 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.200" (5.08mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 20µs, 80µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
MOC70P3SENSOR OPT SLOT PHOTOTRAN PC PIN |
4,500 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.200" (5.08mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 20µs, 80µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H22B3SENSOR OPT SLOT DARL PC PINS |
1,189 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | 7µs, 45µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
QCK4SENSOR OPT SLOT DARL 4SMD GW |
3,449 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Obsolete | 0.157" (4mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | - | -40°C ~ 100°C | - | - | Surface Mount |
|
H21A1SENSOR OPT SLOT PHOTOTRAN PC PIN |
4,677 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 8µs, 150µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
Frequently Asked Questions
What are Photointerrupters - Slot Type - Transistor Output components used for?
Photointerrupters - Slot Type - Transistor Output components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Photointerrupters - Slot Type - Transistor Output part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Photointerrupters - Slot Type - Transistor Output parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
