Photodiodes
Explore Photodiodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFBR-S4N66C013SENSOR PHOTODIODE 420NM 32UBGA |
220 |
|
Datasheet | AFBR-S4N | 32-UBGA | Bulk | Obsolete | 420nm | Ultraviolet (UV) | 300nm ~ 900nm | - | - | - | 26.9 V | 1.3µA | 36mm² | - | -40°C ~ 85°C | - | - | Surface Mount |
|
02A6A-163-XMDBOARD MOUNT OPTICAL SENSOR |
300 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AFBR-S4K33C0147LSENSOR PHOTODIODE 430NM 12WFBGA |
104 |
|
Datasheet | AFBR-S4K | 12-WFBGA, CSPBGA | Bulk | Obsolete | 430nm | - | - | Avalanche | - | - | 30.25 V | 207nA, 913nA, 1.8µA | 9mm² | - | -40°C ~ 60°C | - | - | Surface Mount |
|
|
02A4A-142-XMDBOARD MOUNT OPTICAL SENSOR |
1,378 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EOPD-525-0-2.25-1PHOTODIODE 525NM GAP TO39 FLAT L |
2,124 |
|
Datasheet | EOPD-525 | TO-39-2 Metal Can | Bag | Active | 525nm | Green | 480nm ~ 560nm | Planar Diffusion | 0.08 A/W @ 525nm | - | - | 5pA | 5mm² | - | -40°C ~ 125°C | - | - | Through Hole |
|
|
FND-100GHSENSOR PHOTODIODE 850NM TO5 |
156 |
|
Datasheet | FND-100 | TO-5 | Box | Active | 850nm | Ultraviolet (UV) | 400nm ~ 1150nm | PIN | 0.6 A/W @ 850nm | 1ns | 150 V | 10nA | 5.1mm² | - | -40°C ~ 125°C | - | - | Through Hole |
|
RD07SENSOR PHOTODIODE 900NM 3MM TO8 |
4,460 |
|
Datasheet | - | TO-8 | Tray | Active | 900nm | - | - | - | 0.55 A/W @ 900nm | 1.5ns | - | 200pA | 7.1mm² | - | -40°C ~ 100°C | - | - | Through Hole |
|
PIN-005D-254FSENSOR PHOTODIODE 254NM TO5 |
3,601 |
|
Datasheet | - | TO-5 Variant, 2 Leads, Lens Top Metal Can | Tray | Active | 254nm | Ultraviolet (UV) | - | Planar Diffusion | 0.025 A/W @ 550nm | 100ns | - | - | 5.7mm² | - | 0°C ~ 70°C | - | - | Through Hole |
|
RD15SENSOR PHOTODIODE 15MM RAD DET |
4,899 |
|
Datasheet | - | - | Case | Active | - | - | - | - | - | - | - | - | - | - | -40°C ~ 100°C | - | - | - |
|
RD100ASENSOR PHOTODIODE 950NM 6NS |
3,187 |
|
Datasheet | - | - | Case | Active | 950nm | - | - | - | 0.6 A/W @ 900nm | 6ns | - | 2nA | 100mm² | - | -20°C ~ 60°C | - | - | Through Hole |
|
A5C-35SENSOR PHOTODIODE ARRAY-35 ELEM |
3,022 |
|
Datasheet | Multi-Element Array | Array - 35 Element | Case | Active | - | - | - | Planar Diffusion | 0.65 A/W @ 970nm | - | - | 50pA | 3.9mm² | - | -30°C ~ 85°C | - | - | Through Hole |
|

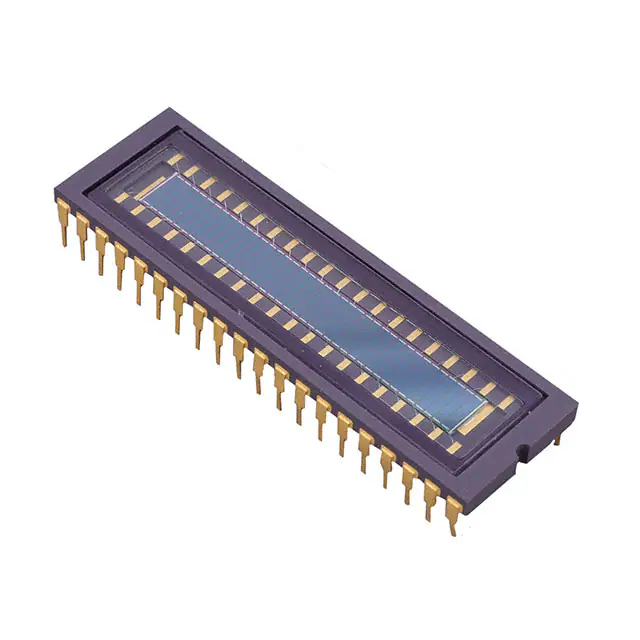

A5C-38SENSOR PHOTODIODE ARRAY-38 ELEM |
3,515 |
|
Datasheet | Multi-Element Array | Array - 38 Element | Case | Active | - | - | - | Planar Diffusion | 0.65 A/W @ 970nm | - | - | 50pA | 3.9mm² | - | -30°C ~ 85°C | - | - | Through Hole |
|
PIN-4X4DSENSOR PHOTODIODE 850NM 48CLCC |
1,532 |
|
Datasheet | 4X4D | 48-CLCC | Tray | Active | 850nm | - | - | - | - | - | - | - | 1.96mm² | - | -20°C ~ 60°C | - | - | Surface Mount |
|
PIN-10AP-1SENSOR PHOTODIODE 100MM MODULE |
1,211 |
|
Datasheet | - | Module | Canister | Active | - | - | - | - | - | - | - | - | - | - | 0°C ~ 70°C | - | - | Panel Mount |
|
A2V-76SENSOR PHOTODIODE 970NM ARR-76EL |
3,742 |
|
Datasheet | Multi-Element Array | Array - 76 Element | Case | Active | 970nm | - | - | Planar Diffusion | 0.50 A/W @ 970nm | - | - | - | 1.8mm² | - | -30°C ~ 85°C | - | - | Through Hole |
|
SC-25DSENSOR PHOTODIODE 670NM RADIAL |
1,370 |
|
Datasheet | - | Radial | Canister | Active | 670nm | - | - | - | 0.42 A/W @ 670nm | 5µs | - | 100nA | 350mm² | - | 0°C ~ 70°C | - | - | Through Hole |
|
QSE773E3R0SENSOR PHOTODIODE PIN |
82,480 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T1170P-SD-FSENSOR PHOTODIODE 920NM DIE |
200 |
|
Datasheet | T1170P | Die | Sheet | Active | 920nm | - | 600nm ~ 1040nm | PIN | - | 100ns | 60 V | 1nA | 0.88mm² | 120° | -40°C ~ 100°C (TA) | - | - | Surface Mount |
|
|
T1110P6-SD-FSENSOR PHOTODIODE 940NM DIE |
200 |
|
Datasheet | T1110P6 | Die | Tray | Active | 940nm | - | 430nm ~ 1100nm | PIN | - | 100ns | 60 V | 2nA | 7.5mm² | 120° | -40°C ~ 100°C (TA) | - | - | Surface Mount |
|
|
PD1sM TO-46 with UV-glass windowSENSOR PHOTODIODE 200-1100nm TO |
1,819 |
|
Datasheet | - | TO-46-2 Metal Can | Bulk | Active | - | - | 170nm ~ 1100nm | - | 0.73 A/W @ 930nm | - | 10 V | 12pA | 1mm² | - | - | - | - | Through Hole |
Frequently Asked Questions
What are Photodiodes components used for?
Photodiodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Photodiodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Photodiodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
