Photodiodes
Explore Photodiodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
040-101-411SENSOR PHOTODIODE MICRO 1206 |
1,717 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | 300nm ~ 1100nm | - | - | - | 50 V | 500pA | - | - | -40°C ~ 105°C | - | - | Surface Mount |
|
019-141-411-BSENSOR PHOTODIODE BLUE SMD |
10,328 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | Blue | 350nm ~ 1100nm | - | 0.06 A/W @ 450nm | 10ns | 50 V | 500pA | - | - | -40°C ~ 105°C | - | - | Surface Mount |
|
|
019-141-411-RSENSOR PHOTODIODE RED MICRO SMD |
6,867 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | Red | 350nm ~ 1100nm | - | 0.06 A/W @ 450nm | 10ns | 50 V | 500pA | - | - | -40°C ~ 105°C | - | - | Surface Mount |
|
SFH 2240SENSOR PHOTODIODE 620NM 2SMD |
6,052 |
|
Datasheet | Power TOPLED® | 2-SMD, No Lead | Tape & Reel (TR) | Active | 620nm | - | 400nm ~ 690nm | PIN | 0.37 A/W @ 620nm | 90ns | 16 V | 1nA | 7.02mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
TEMD6010FX01SENSOR PHOTODIODE 540NM SMD |
1,402 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | 540nm | - | 430nm ~ 610nm | PIN | - | - | 16 V | 2nA | 0.27mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
K857PESENSOR PHOTODIODE 840NM 6VDFN |
969 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | 840nm | - | 690nm ~ 1050nm | PIN | - | 30ns | 20 V | 1nA | 1.6mm² | 120° | -40°C ~ 110°C | Automotive | AEC-Q101 | Surface Mount, Wettable Flank |
|
SFH 2202SENSOR PHOTODIODE 830NM 2SMD |
455 |
|
Datasheet | TOPLED® | 2-SMD, No Lead | Tape & Reel (TR) | Active | 830nm | - | 400nm ~ 1100nm | PIN | - | 75ns | 16 V | 100pA | 8.12mm² | 120° | -40°C ~ 85°C | - | - | Surface Mount |
|

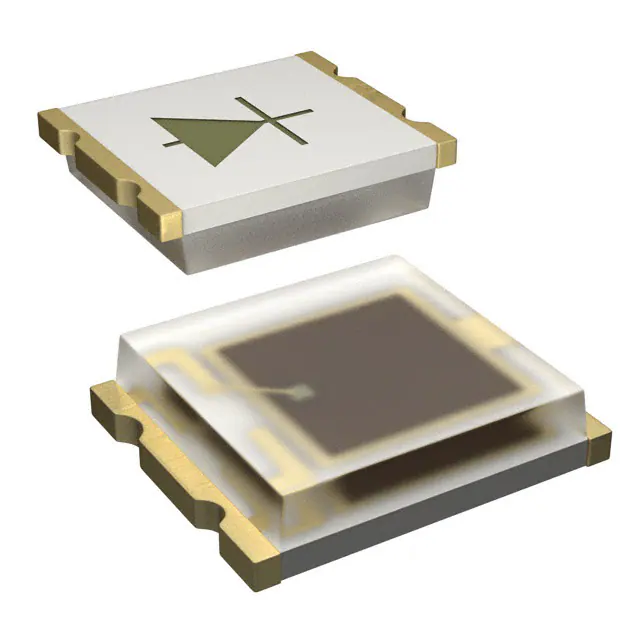

TEMD5510FX01SENSOR PHOTODIODE 540NM SMD |
2,393 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | 540nm | - | 430nm ~ 610nm | PIN | - | - | 16 V | 2nA | 7.5mm² | 130° | -40°C ~ 100°C | - | - | Surface Mount |
|
VEMD5510CSENSOR PHOTODIODE 550NM 4SMD |
979 |
|
Datasheet | - | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Last Time Buy | 550nm | - | 440nm ~ 700nm | PIN | - | 70ns | - | 200pA | 7.5mm² | 130° | -40°C ~ 100°C | - | - | Surface Mount |
|
|
VEMD5510CFSENSOR PHOTODIODE 540NM 4SMD |
500 |
|
Datasheet | - | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Last Time Buy | 540nm | - | 440nm ~ 620nm | PIN | - | 70ns | - | 200pA | 7.5mm² | 130° | -40°C ~ 100°C | - | - | Surface Mount |
|
PDB-C134FSENSOR PHOTODIODE 950NM RADIAL |
4,103 |
|
Datasheet | - | Radial, 3mm Dia (T-1) | Bulk | Active | 950nm | Blue | 700nm ~ 1100nm | PIN | - | 10ns | 100 V | 2nA | 1.538mm² | 30° | -40°C ~ 80°C | - | - | Through Hole |
|
VEMD8081SENSOR PHOTODIODE 840NM 8SMD |
3,433 |
|
Datasheet | - | 8-SMD, No Lead | Tape & Reel (TR) | Active | 840nm | - | 350nm ~ 1100nm | PIN | - | 110ns | 20 V | 500pA | 5.4mm² | 130° | -40°C ~ 85°C | - | - | Surface Mount |
|
GUVA-C22SDSENSOR PHOTODIODE 2SMD |
5,422 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | - | Ultraviolet (UV) | 240nm ~ 370nm | Schottky | 0.14 A/W @ 350nm | - | 5 V | 1nA (Max) | 0.076mm² | - | -30°C ~ 85°C | - | - | Surface Mount |
|
GVBL-S12SDSENSOR PHOTODIODE 2SMD |
871 |
|
Datasheet | - | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ultraviolet (UV) | 345nm ~ 450nm | - | 0.68 A/W @ 405nm | - | 5 V | 1nA (Max) | - | - | -30°C ~ 85°C | - | - | Surface Mount |
|
GVGR-S11SDSENSOR PHOTODIODE 295-490NM 2SMD |
261 |
|
Datasheet | - | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ultraviolet (UV) | 295nm ~ 490nm | - | 0.07 A/W @ 405nm | - | 5 V | 1nA (Max) | - | - | -30°C ~ 85°C | - | - | Surface Mount |
|
|
VEMD8082PIN PHOTODIODE PACKAGE SIZE OF 4 |
235 |
|
Datasheet | - | 8-SMD, No Lead | Tape & Reel (TR) | Active | 890nm | Infrared (NIR) | 350nm ~ 1100nm | PIN | - | 40ns | 20 V | 200pA | 6mm² | 130° | -40°C ~ 85°C | - | - | Surface Mount |
|
GUVB-C21SDSENSOR PHOTODIODE 240-320NM 2SMD |
5,360 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | - | Ultraviolet (UV) | 240nm ~ 320nm | Schottky | 0.11 A/W @ 300nm | - | 3 V | 1nA (Max) | 0.08mm² | - | -30°C ~ 85°C | - | - | Surface Mount |
|
PDB-C142SENSOR PHOTODIODE 660NM RADIAL |
9,940 |
|
Datasheet | - | Radial, 5mm Dia (T 1 3/4) | Bulk | Active | 660nm | Blue | 400nm ~ 1100nm | PIN | - | 50ns | 100 V | 5nA | 4.12mm² | 40° | -40°C ~ 80°C | - | - | Through Hole |
|
PDB-C158SENSOR PHOTODIODE 660NM RADIAL |
817 |
|
Datasheet | - | Radial | Bulk | Active | 660nm | Blue | 400nm ~ 1100nm | PIN | - | 50ns | 50 V | 2nA | 9mm² | 120° | -40°C ~ 80°C | - | - | Through Hole |
|
NJL6195R-TE1SENSOR PHOTODIODE 890NM 2SMD |
3,191 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 890nm | - | - | - | 0.55 A/W @ 850nm | 25ns, 42ns | 35 V | 1nA | 2.98mm² | - | -30°C ~ 85°C | - | - | Surface Mount |
Frequently Asked Questions
What are Photodiodes components used for?
Photodiodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Photodiodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Photodiodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
